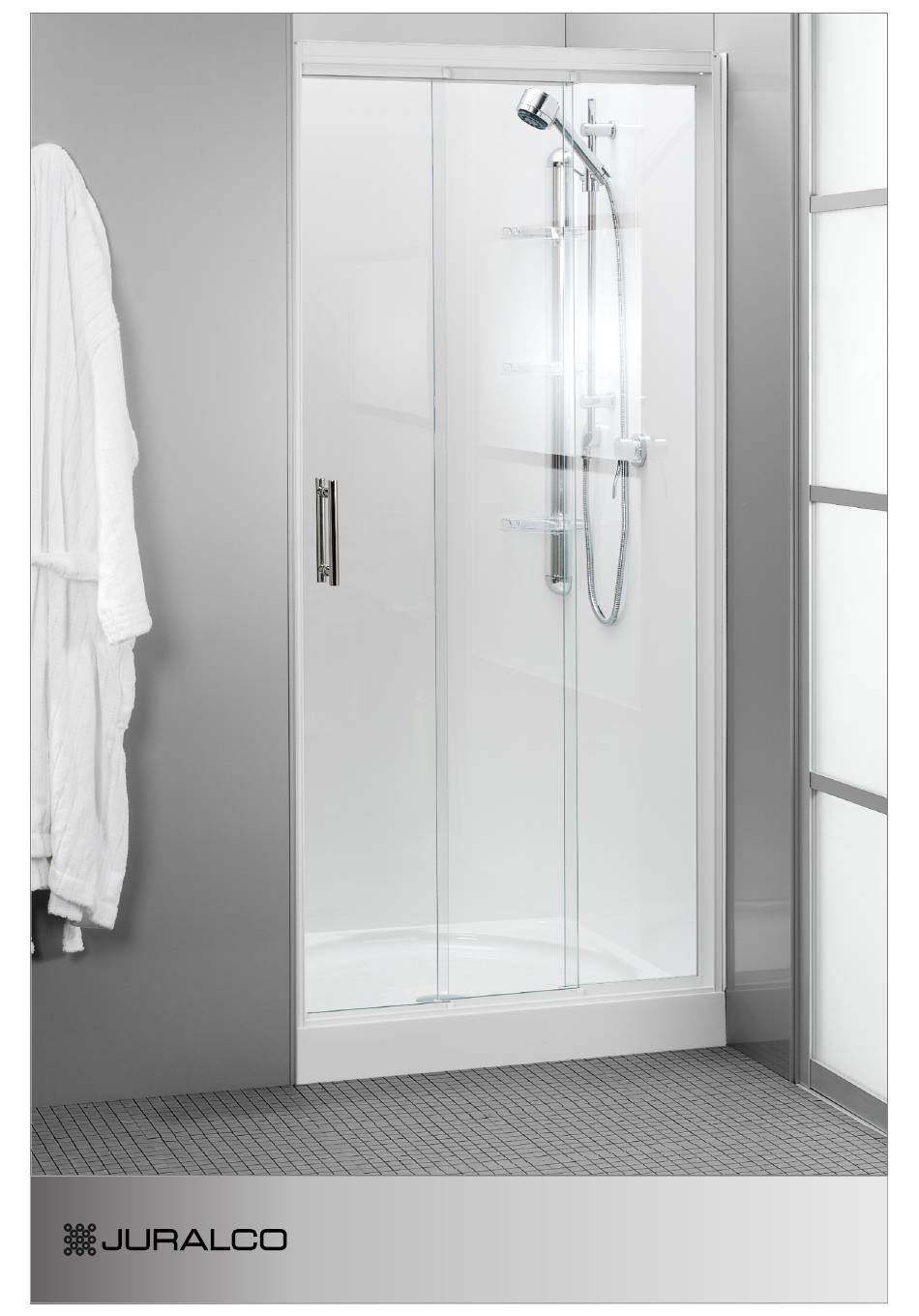

- Page 1 JURALCO TRIDENT SHOWER DOOR SYSTEM Issue 1/16 Juralco Trident Shower Door System ISSUE 1/16 www.juralco.co.nz ph (09) 478 8018...
- Page 2 The Juralco Trident Shower Door System is ideal for any bathroom. Doors slide easily from top hung tracks. The design can cope with installations on floor, on shower trays or over baths.
- Page 3 Juralco Trident Shower Door System General Description - The Trident Shower Door system is designed to provide a range of easily installed doors to suit any opening. - Designed for installation with standard Shower trays, direct on to suitable flooring or over bath.
- Page 4 Juralco Trident Shower Door System - Extrusions 10.8 FRONT RAIL FIXED PANEL HEAD RAIL HEAVY DUTY HEAD RAIL Part No 3844 Part No 3836 Part No 3842 10.8 10.8 10.8 10.8 16.3 20.5 17.5 17.5 10.8 TOP RAIL BOTTOM RAIL...
- Page 5 Juralco Trident Shower Door System - Components Hook Pickup Block Peg (or Stop Block) Glazing Wedge, clear (Shown LH) Part No SU 10 Part No SU 11 Part No 31 LH - Part No SU 12 RH - Part No SU 13...
- Page 6 Juralco Trident Shower Door System - Typical Cross Sections Trident Door Shower System Door Measuring - Measure width at top and bottom of the shower Door Frame. Check for out of square walls. Frames must be built out of square if (if more than 5mm out) necessary to reflect actual site measurements.
- Page 7 Juralco Trident Shower Door System - Typical Cross Sections - Available as Framed or Framless Doors (no stiles) Two Door - Fixed Panel can either be Outside or Inside mounted Typical Horizontal - All available with 90 deg return Cross Sections...
- Page 8 Juralco Trident Shower Door System - Typical Cross Sections Three and Two Door - These sections apply to both Framed or Framless Doors (no stiles) Typical Vertical - Glass 4mm for Framed, 6mm for Frameless Doors. Always 4mm for Returns.
- Page 9 Juralco Trident Shower Door System - Hook, Block Arrangements Hook, Block Arrangements Note - Only Fixed Panel Stiles shown - Framed / Framless Stiles not shown - Sill not to scale Hook Double Hook Pickup Block - All shown as RH entry.
- Page 10 Juralco Trident Shower Door System - Cutting Allowances Three Door Width Allowances Glass width = GW Overall Width = OW Leading OUTSIDE Door Frameless Three Door Leading Door Note - All Glass same Width Door Back mounted Door Fixed Panel...
- Page 11 Juralco Trident Shower Door System - Cutting Allowances Two Door Width Allowances Glass width = GW Overall Width = OW OUTSIDE Moving Door Note - All Glass Frameless same Width Two Door Fixed Moving Panel Back mounted Door INSIDE Fixed Panel...
- Page 12 Juralco Trident Shower Door System - Cutting Allowances - Height considerations apply to both Framed or Framless Doors (no stiles) equally Three, Two Door - Glass 4mm for Framed, 6mm for Frameless Doors. Always 4mm for Returns. and Return - Stiles on all edges if Framed. 1 x Stile on back edge of fixed panel only if Frameless...
- Page 13 Juralco Trident Shower Door System - Cutting - Glass all toughened 6mm, Polish all edges Frameless, Three Door - Use Heavy Duty Head Rail 3842 if width greater than 1200mm Back or Front - If frame out of square and DFW is different at top and bottom, use the smaller DFW in cutting below...
- Page 14 Juralco Trident Shower Door System - Cutting - Glass all toughened 4mm, Rough arris all edges Framed, Three Door, - Use Heavy Duty Head Rail 3842 if width greater than 1200mm Back or Front - If frame out of square and DFW is different at top and bottom, use the smaller DFW in cutting below.
- Page 15 Juralco Trident Shower Door System - Cutting - Glass all toughened 6mm, Polish all edges Frameless, Two Door, - Use Heavy Duty Head Rail 3842 if width greater than 1200mm Back, Front or No - If frame out of square and DFW is different at top and bottom, use the smaller DFW in cutting below.
- Page 16 Juralco Trident Shower Door System - Cutting - Glass all toughened 4mm, Rough arris all edges Framed, Two Door, - Use Heavy Duty Head Rail 3842 if width greater than 1200mm Back, Front or No - If frame out of square and DFW is different at top and bottom, use the smaller DFW in cutting below.
- Page 17 Juralco Trident Shower Door System - Cutting - Framed - Glass all toughened 4mm, Rough arris all edges 90deg Return - If measurements out of square, will be taken up in Maxi channel Panel Glass Width Std mark here Rail...
- Page 18 Juralco Trident Shower Door System - Machining Door Frame and Corner Sections Machining - All cut square, no machining Bottom Rail Front Rail 90 deg Corner Jamb Maxi Channel 3832 3844 3837 3838 Use for 3 x panel Use for 3 x panel...
- Page 19 Juralco Trident Shower Door System - Assembly Manufacture Three Door Framed Note: Prior to delivering to site, unpack and check all items Back Fixed Panel 1 - Inspect all extrusions for damage, surface defects. Assemble all necessary components. Ensure workplace is clean.
- Page 20 Juralco Trident Shower Door System - Assembly, Installation Assembly Three Door Framed Back Fixed A - Assembly INSIDE FRONT SHOWER SIDE 1 - Assemble the three panels on a large flat table taking care that the flat fins of the 3833 top rail are facing Upwards on both doors.
