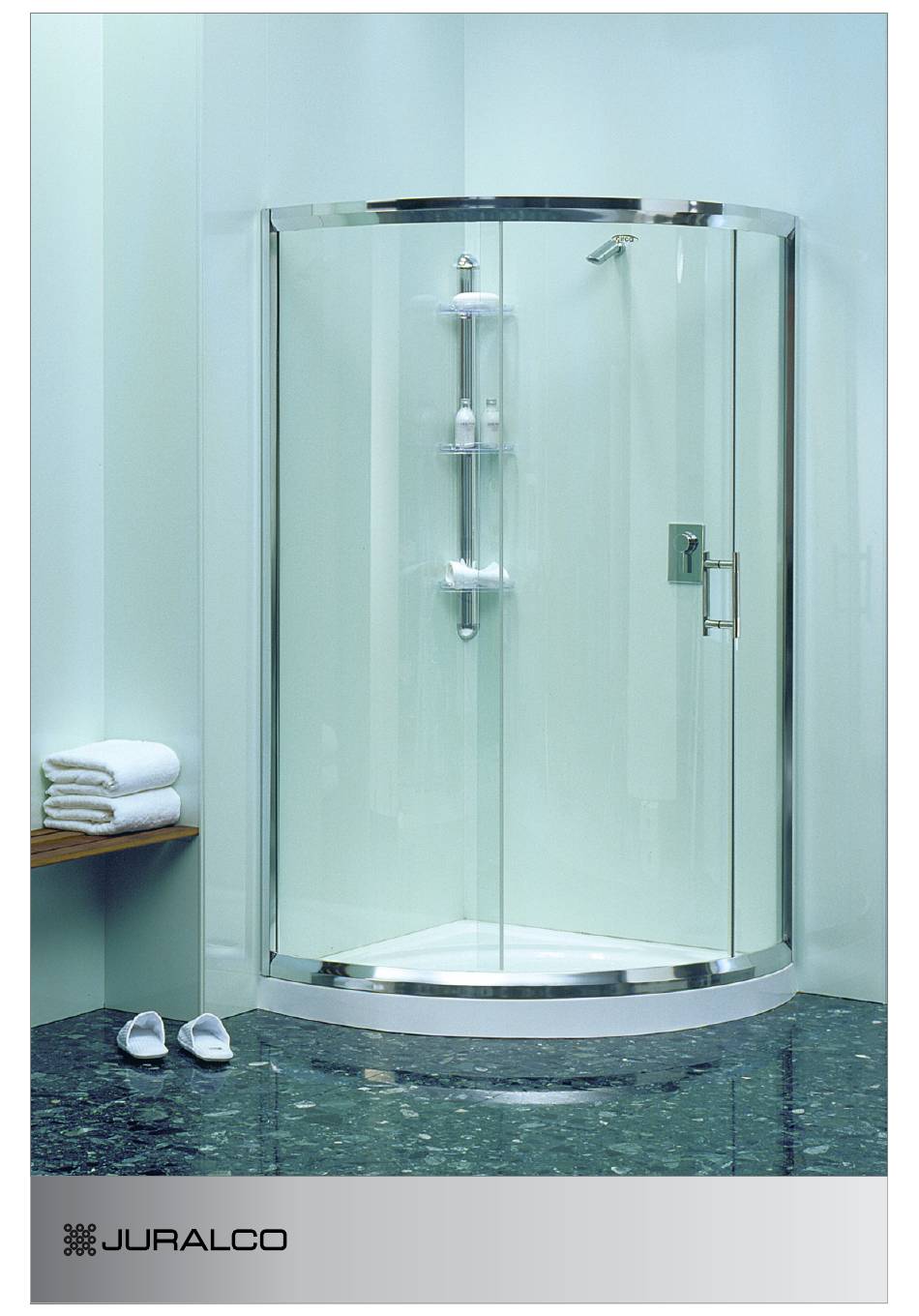

- Page 1 ® JURALCO CIRCA SHOWER DOOR SYSTEM ® Issue 1/17 Juralco Circa Shower Door Systems ISSUE 1/17 www.juralco.co.nz ph (09) 478 8018...
- Page 2 Modern, elegant styling and roominess gives the Juralco Circa Curved Sliding Screen a luxurious opulence. The curved shower base and sliding curved glass screen can be combined with either tiled or acrylic walls to enhance the appearance of any bathroom.
- Page 3 ® Juralco Circa Shower Door System - Extrusions, Components Extrusions Full Size WALL JAMB WALL CHANNEL CURVED FRAME Components Double Roller Set Double Pull Handle Light Grey Sprung Bottom Clip Top Limit Stop Light Grey Light Grey Stop Glass Clip...
- Page 4 ® Juralco Circa Shower Door System - Typical Sections Typical Sections Top Limit Stop Double Roller Set Curved Frame Wall Jamb Sliding Door Panel 6mm Glass Fixed Panel 6mm Glass Fixed Glass Clip Waterproof Strip Bottom Curved Frame Bottom Sliding Clip...
- Page 5 ® Juralco Circa Shower Door Systems - Shower Trays Shower Tray Sizes 1105 mm sq mm sq 1010 mm sq - Unit height 1850mm - Door entry opening 510mm - Tray Height 80mm Model D100N Nominal Tray Size 1000mm x 1000mm...
- Page 6 ® Juralco Circa Shower Door Systems - Installation Shower Tray, Linings Note: Prior to delivering to site, unpack and check all items Installation CIRCA PACKING LIST TOOLS NEEDED 2 x Curved Glass Fixed panels Caulking Gun INSTALLATION 1 x Curved Glass, Sliding Door Pencil 1 - Unpack all components, inspect for damage.
- Page 7 ® Juralco Circa Shower Door Systems - Installation 10 - Adhesive. Before fitting the liner, ensure both surfaces to be bonded are clean, dry and grease free. Wipe down the liner surface to be absolutely clean. Do not stop, seal or sand the gib surface, as this will affect adhesion.
- Page 8 OUTSIDE 13 - Cleanup After at least 24 hours wash the frame and glass with a shower type cleaner. Leave the site clean and tidy. All pages © Copyright Juralco Aluminium Building Products Ltd, 2017 ® Issue 1/17 Juralco Circa...
