Summary of Contents for Ampeon AMP-EE01

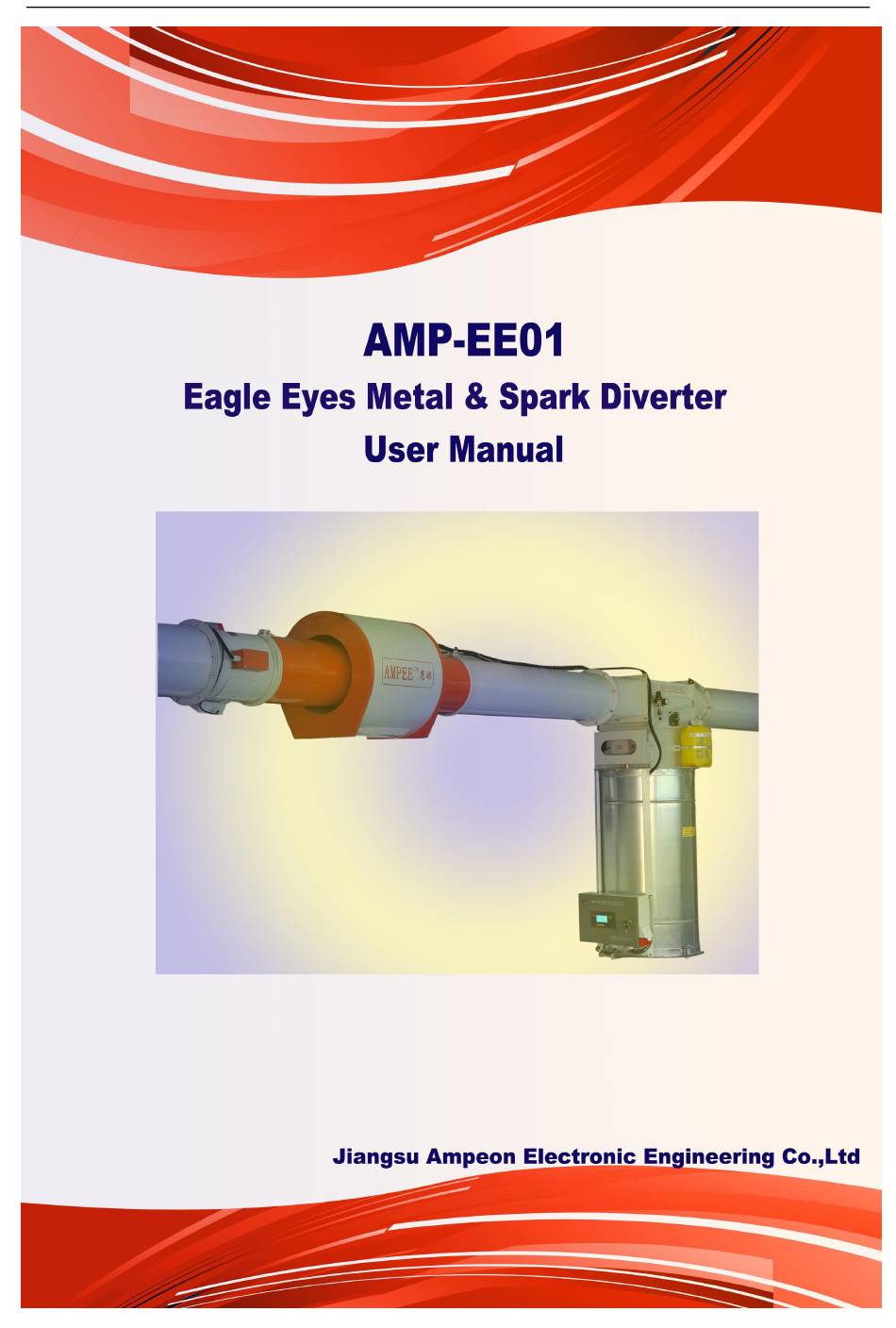

- Page 1 Ver1.91 2013-10-13...
- Page 2 3. Jiangsu Ampeon Electronic Engineering Co., Ltd. provides services of the three guarantee period 18 months from the delivery date. 4. Troubles due to lightening strike, water invasion and obvious artificial miss or damage etc.
-
Page 3: Table Of Contents
AMPEON AMP-Series C o n t e n t s A. Overview............................2 1、Use and structural features..................... 2 2、Technical parameter........................ 2 B. Electric wiring and installing......................3 1、Installing..........................3 1.1 The installation of the connecting pipe of spark detectors..........3 1.2 The installation of the metal detector................3 1.3 The installing of control box..................... -
Page 4: Overview
A. Overview 1、Use and structural features AMP-EE01 type Eagle Eyes Metal and Spark Diverter is the latest product of Jiangsu Ampeon. It is manufactured whit high-quality components and materials and incorporates the high speed microprocessor technology. It is installed on the pipe of pneumatic transport systems for materials like fibers or tuft. -
Page 5: Electric Wiring And Installing
AMPEON AMP-Series B. Electric wiring and installing In order to reach the best performance of AMP-EE01 Eagle Eyes metal & spark diverter, proper electric wiring and installing is the most important approach. Please be sure to read this “User manual” carefully before installation. And the installation environment and conditions for further correct measurement and evaluation. -
Page 6: The Installing Of Control Box
AMPEON AMP-Series 1) Metal detector can be hung up at the four hoisting rings by metal rods. Metal detector should be installed firmly, to avoid incorrect detecting caused by the vibrating. 2) Make sure the shielded cables for signal receiving and transferring between the metal detector and control box is connected reliably ，... - Page 7 AMPEON AMP-Series A) Diverter AE01 B) Collecting box C) Observation window D) Door E) Support for installing the control box F) Wiring ducts G) Diverter controller H) -X98 junction box I) Cylinder J) Water spray nozzle K) Water storage tank...
-
Page 8: The Standard Installation
AMPEON AMP-Series 1.5 The standard installation Before installing the AMPEE01, you need to calculate the right distance between the metal detector and the diverter. You can do this with the following formula. Distance[m]= Transport velocity[m/s]*Reaction time[s]*Safety factor The Distance is the metal detector to the diverter. -
Page 9: 2．Electric Wiring
AMPEON AMP-Series 2．Electric wiring -X95) Spark Detectors Junction Box -X90) Metal Detector Junction Box -X98) Diverter Junction Box Control box MSD-01 Figure 6 a: Electric wiring of the standard installation Figure 6 b: Electric wiring of the control box... -
Page 10: Electric Wring - J0 Of The Control Box
AMPEON AMP-Series Figure 7: Wiring terminals in the control box Figure 8: Electric wiring of the power board 2.1 Electric wring - J0 of the control box a) Terminal 1 and terminal 2 are the power input AC220V, terminal 3 is earthing. -
Page 11: Electric Wring - J13 Of The Control Box
AMPEON AMP-Series ATTENTION! We shall avoid the share of power supply with other equipments that may produce interference radiation. We shall pay special attention to avoiding the phenomenon that on the time of spark alarm stopping ， the power supply of instrument itself can’t be shut down for output of relay signal. -
Page 12: Electric Wiring Of The Main Board To The Spark Detectors
AMPEON AMP-Series Figure 9: Electric wiring of the main board 2.4Electric wiring of the main board to the spark detectors There are two spark detectors SD1 and SD2 connected in the spark detector junction box - X95. The wiring terminals No.32 to No.37 on the main board in the control box are connected to the terminals of the spark detector junction box - X95. -
Page 13: Earthing And Safety
AMPEON AMP-Series Figure 10: Electric wiring of the control box to diverter 2.6 Earthing and safety a) You should earth properly according to the safety standard of local government. This equipment needs to be separately earthed. It is suggested that the earthing wire be as short as possible and it is prohibited to earth it together with other equipments. - Page 14 AMPEON AMP-Series Figure 11: Diagram of control panel and main display Display Explanation 08/22/2010 The time now is 16:35 on Aug.22,Year 2010 16:35 Spark The spark detectors The flash will show ‘—’ to‘| ’,while the diverter is activating Metal The count of metal detector is ‘8’...
-
Page 15: Explanation Of The Keys
AMPEON AMP-Series After resetting the alarm by pressing the key , the fire alarm page will return to the main page. Figure 12: The fire alarm display Display Explanation 09 ： 08/22/2010 The spark detector alarmed at 9:26 on Aug.22, Year 2010. -
Page 16: 2、Parameter Setting
AMPEON AMP-Series detector’s action. Function key. The key is used to switch the menu page (refer Figure13). If the keyboard is locked, you can enter the menu page by pressing the ‘FUN’ and ‘▲ ’ keys simultaneously. . Home key. After pressing the key, you will return to the main page. -
Page 17: System Setting
AMPEON AMP-Series 2.2 System setting After you enter into the system setting menu page , press the two keys ‘▲, ▼’can change for the up and down item shifting. Figure 16a: System settings menu Figure 16b: System settings menu 1. CHINESE 中 文 ’item, shows that we can 1) The cursor is flashing in the ‘... - Page 18 AMPEON AMP-Series Figure 17： Function setting menu Parameter Settings Factory setting 1.Sensitivity 0-99 % 2.Activate 0.00s-3.00s 0.00S 3.Reset 1.00s-3.00s 1.50S Table 3: Function parameter value table 1）Sensitivity ①The metal detecting Sensitivity Parameter range is 0-99%,the lowest is 0 and the highest is 99%. The percentage is higher, the sensor is more sensitive.
-
Page 19: History
AMPEON AMP-Series will be diverted. 4）Spark test When the cursor flashes at ‘ 4. Spark test’, press the key ‘FUN’ entering into the spark testing page, then you can take the simulation test with the fire alarm function of the machine. -
Page 20: Communication Setting
AMPEON AMP-Series 1 ） 120 ms, → 6.4 m/s ", this message tells you how long the diverter took to move from the normal to the activated position and the metal transport velocity just detected is 6.4 m/s . The arrow symbols “←，→”... -
Page 21: Functions
AMPEON AMP-Series 8-bit command consists of 2 ASCII codes Function Lo Contents of data： DATA（n-1） n×8-bit data consist of 2n ASCII codes …… n<=20,maximum of 40 ASCII codes（20 data） DATA 0 LRC check sum： LRC CHK Hi 8-bit check sum consist of 2 ASCII codes LRC CHK Lo End characters：... -
Page 22: Debugging And Usage Maintenance
AMPEON AMP-Series 0003H The count of detected metal D. Debugging and usage maintenance 1、Fire alarm simulation test a. You can use the fire alarm testing function brought by the machine itself .See Chapter C Using of the control panel/2.3 Function setting/ 4Spark test. -
Page 23: 3、Maintenance And Inspections
AMPEON AMP-Series diverter. The parameter can directly affect the contaminated material volume. It is best to assure that the metal scraps can be properly discharged but the contaminated material volume is the minimum. d. While you is carrying out the metal test, please be observant to avoid the metal from entering the blower in the next procedure. - Page 24 AMPEON AMP-Series ~22~...
