Pro Vision BODYCAM 4 Quick Start Manual

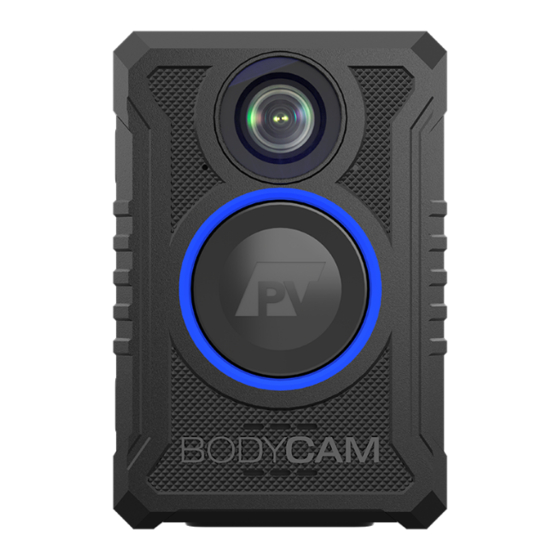

FEATURES
Mount
Lens
F1 Button
Microphone
Status LED
Power Button
Docking Connector
UPLOADING
Insert the camera into a single or multi-unit
dock to charge the battery and upload files.
The cameras will immediately begin uploading
once connected. The camera display will show
the upload status. Always check the display
before removing a camera from the dock; do
not remove if a firmware update is in progress.
USER FUNCTIONS
Function
Power On
Display
Power Off
Start Event Recording
F2 Button
Stop Event Recording
Add Marker During an
Event Button
Event
Mute or Unmute Audio
Recording
Speaker
Enter or Exit Covert
Mode
Temporarily Increase
Display Brightness
DISPLAY
The display will rotate automatically from docked to operational
mode; it will automatically dim after 10 seconds of inactivity.
Action
Press and hold the Power button for 3
seconds.
Press and hold the Power button for 3
seconds while the camera is not
recording Events.
Double-press the Event button.
Press and hold the Event button for 3
seconds.
Single press the Event button while
Event recording.
Press and hold F1 button for 3 seconds.
Press and hold the F1 and F2 buttons
simultaneously for 3 seconds.
Single press the power button to
increase the display brightness for 5
seconds.
Event recording initiated by button
Event recording initiated by signal from another camera
Event recording initiated by signal from a car
Audio is muted or disabled
Covert mode is enabled (no sounds, vibrations, or LED)
Battery status, changes to red when less than 10%
Battery is charging (when docked)
Pre-Event recording is active
Background recording is active
Camera remote activation signal is broadcasting
BODYCAM 4
Quick Start Guide
Revised 12/07/2020
Status Bar
Information Area
Secondary Information Area
Page 1 of 2
