- Page 1 REGULADORES SOLARES DE Y-SOLAR MODELOS Z-10, Z-20, Z-30...
-
Page 2: Product Features

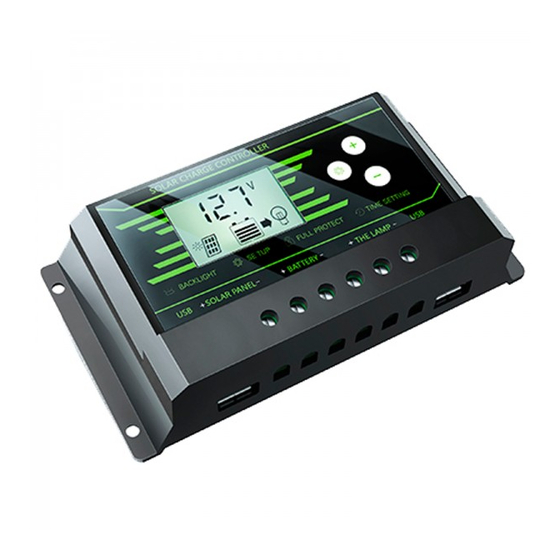

Z10-30 User’s Manual Safety advice • Make sure your battery has enough voltage for the controller to recognize the battery type before first installation. • The battery cable should be as short as possible to minimize loss. • The charge controller is only suitable for regulating solar modules. Never connect another charging source to the charge controller. - Page 3 Z10-30 Characteristics LCD Display Keys 1. The battery voltage or a light delay closing time display Plus: press to increase value Set up: switch between different displays, or to enter/exit setting try long press Minus: press to decrease value...
-
Page 4: System Connection
Z10-30 2. Solar input indication 3. Charging instructions: flashing when charging often bright full or constant voltage charging 4. Battery power indicator 5. Load indication System Connection • The battery positive and negative pole according to the icon access controller, the controller will automatically detect battery voltage, the load positive... -
Page 5: Specifications
Z10-30 Specifications Product Model Battery voltage 12V/24V auto Charge current Discharge current Max. solar input 12V batteries: up to 23V; 24V batteries: up to 46V Equalization 14.4 V Float charge 13.7 V ( default, adjustable) Discharge stop 10.7V (default, adjustable) Discharge reconnect 12.6V (default, adjustable) Charge reconnect... - Page 6 Z10-30 2. Long press (5 secs) menu button to enter settings manually. Numbers will flash. Into corresponding settings page, use plus/minus keys to adjust parameters to desired value. After completion cycling setting pages, system will automatically store changes into memory and exit setup menu. 3.
