PACK
G
OFFSET SHELF STACK & HANGING RAIL
INSTALLATION GUIDE
This information sheet provides details of how to construct and install an offset shelf stack and one hanging rail.
Please take time to read it through fully prior to the installation of your sliding wardrobe doors.
This pack contains:
• 1 x divider panel
(l)2070mm x (w)450mm x (d)18mm
• 1 x shelf support panel
(l)1720mm x (w)450mm x (d)18mm
• 1 x long shelf
(l)1600mm x (w)450mm x (d)18mm
• 1 x long shelf side bearer
(l)430mm x (w)87mm x (d)18mm
• 1 x long shelf back bearer
(l)1200mm x (w)87mm x (d)18mm
• 4 x shelves
(l)450mm x (w)364mm x (d)18mm
• 1 x hanging rail & fixing brackets
(l)1200mm
• Fixings - 18 x 34mm minifix bolts; 18 x minifix
housings; 2 x M10 direct drive screws; 9 x 40mm
screws; 9 x wall plugs; 5 x 25mm screws; 12 x 15mm
screws; 2 x plastic corner blocks; self-adhesive screw
head cover caps
Note: The kit can be installed with the divider panel
on the left (as shown) or it can be flipped so that the
divider panel is on the right - however, some of the
following instructions will need to be reversed
accordingly.
Tools required (not supplied)
• Electric drill, 2mm diam. wood drill bit and
6mm diam. masonry drill bit
• Crosshead screwdriver
• Handsaw (with appropriate blade for
cutting MFC)
• Hacksaw (32tpi blade recommended)
• Spirit level
• Bradawl
• Tape measure
• Pencil

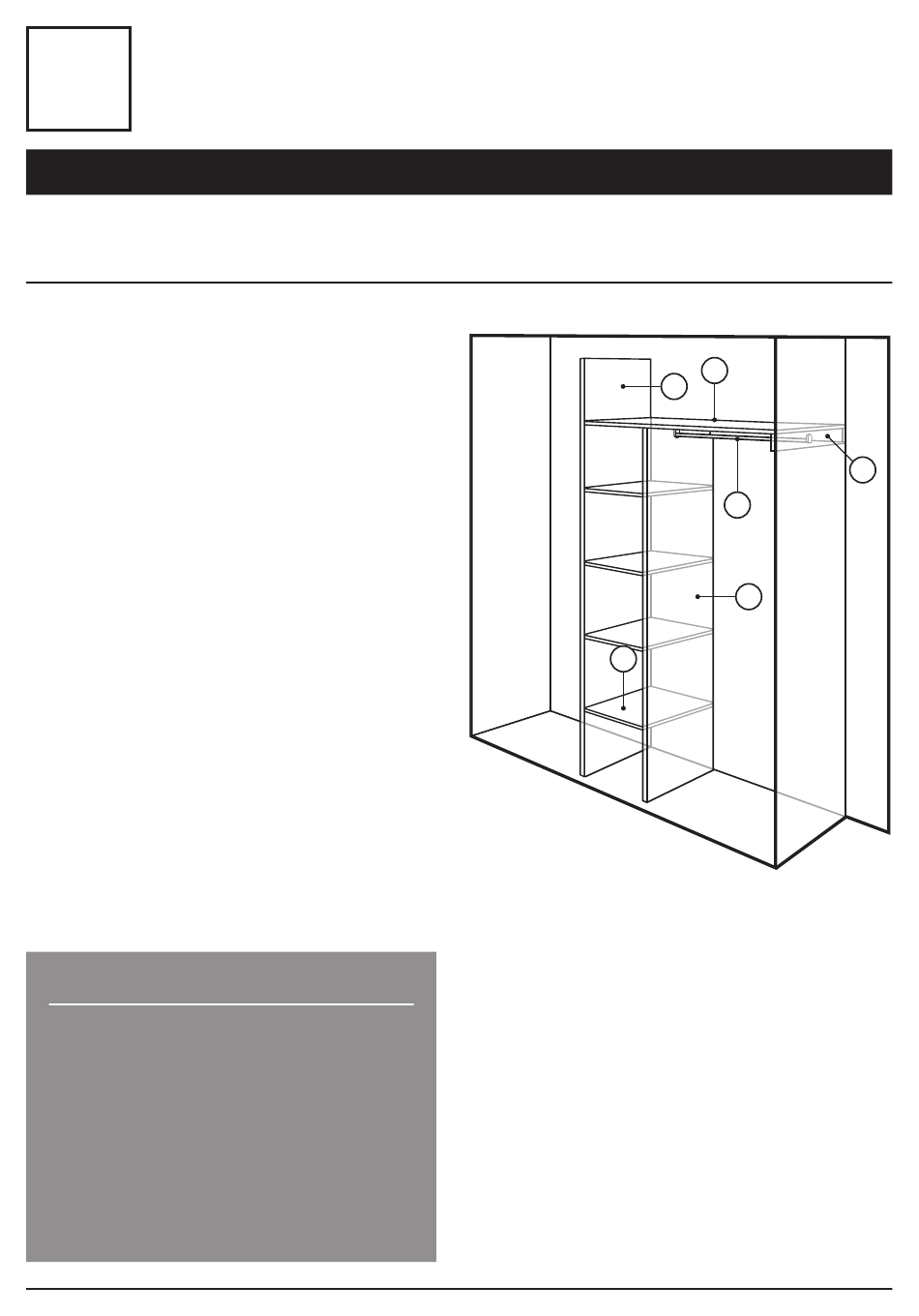

5
1 - Divider panel
2 - Shelf support panel
3 - Long shelf
4 - Long shelf bearers
5 - Shelves
6 - Hanging rail
1
3
1
6
2
4
Advertisement
Summary of Contents for Wardrobe Doors Direct OFFSET SHELF STACK & HANGING RAIL
- Page 1 PACK OFFSET SHELF STACK & HANGING RAIL INSTALLATION GUIDE This information sheet provides details of how to construct and install an offset shelf stack and one hanging rail. Please take time to read it through fully prior to the installation of your sliding wardrobe doors. This pack contains: •...
- Page 2 1. Constructing the shelving unit You will require the following components and fixings from the pack supplied: - Divider panel (2070mm length) - Shelf support panel (1720mm length) - 4 shelves (400 x 450mm) Screw mini x bolt - 18 minifix bolts (34mm length) into panel up to the point of the smooth shank Divider...
- Page 3 Secure the shelf unit to the back wall using the corner blocks Ensure at the above pre-drilled positions. holes are at top of arrangement 2. Attaching the shelf bearers Drill pilot holes On the back wall, using a spirit level, mark a horizontal line in pencil from the top edge of the shelf support panel to the right hand back corner of the wardrobe space.
- Page 4 3. Fitting the long shelf Drill and countersink 2mm pilot holes through the top of the shelf at the positions shown Measure the width from the divider panel to the right hand inside end of the wardrobe and, if necessary, cut the long shelf down to this size.
