Quick Installation Guide for Wireless Broadband Router
(The specification is subject to change without notice.)

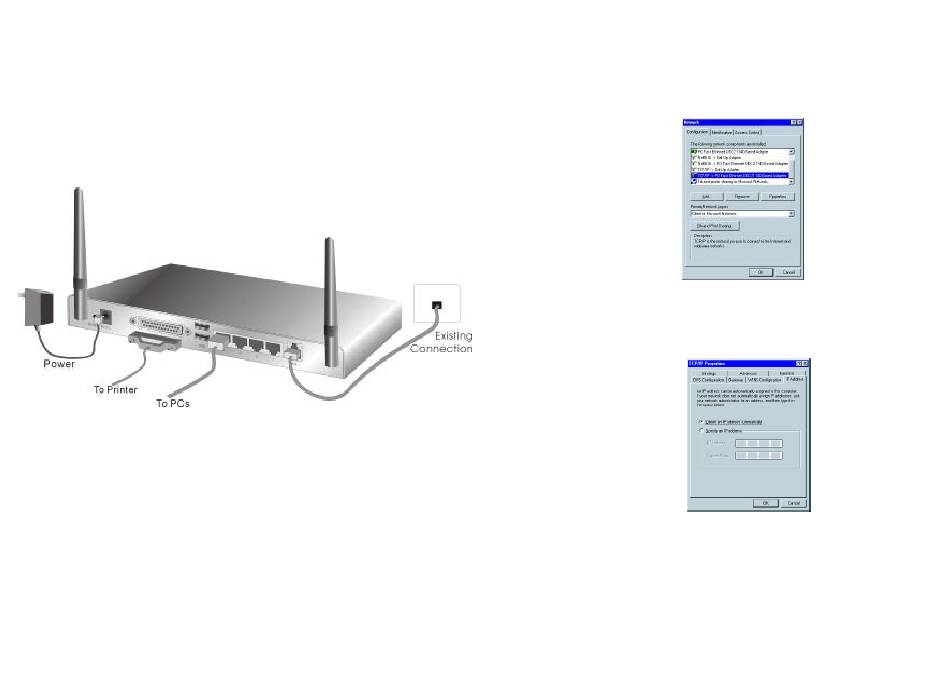

A. Hardware Installation
1. Set up LAN connection: connect an Ethernet cable from your computer's
Ethernet port to one of the LAN ports of this product.
2. Set up WAN connection with your router: connect the network cable from your
cable ( DSL) modem to the WAN port of this product.
3. Connect this product with your printer: connect the printer cable to the printer
port of this product and that of your printer individually.
B. Make the correct TCP/IP settings for your PC:
1. Install the TCP/IP protocol for your PC if it has not yet been installed.
2. From the Windows Start button on your PC, choose settings, and select the
Control Panel item.
3. Double click the Network icon. Select the TCP/IP line that has been
associated to your network card in the Configuration tab of the Network
window.
4. Click on the Properties button. Click the IP Address tab. Select Obtain
An IP Address Automatically.
Advertisement
Table of Contents
Related Manuals for Micronica SOHOmate WiP-500
Summary of Contents for Micronica SOHOmate WiP-500
- Page 1 3. Double click the Network icon. Select the TCP/IP line that has been Quick Installation Guide for Wireless Broadband Router associated to your network card in the Configuration tab of the Network (The specification is subject to change without notice.) window.
- Page 2 5. Click the Gateway tab. Clear all of the gateway settings. Click on the OK channel 13 for European (ETSI); channel 14 for Japan. button. 1. WEP: disable Note: If you want to set the IP of your PC manually, please refer to the User Manual.
