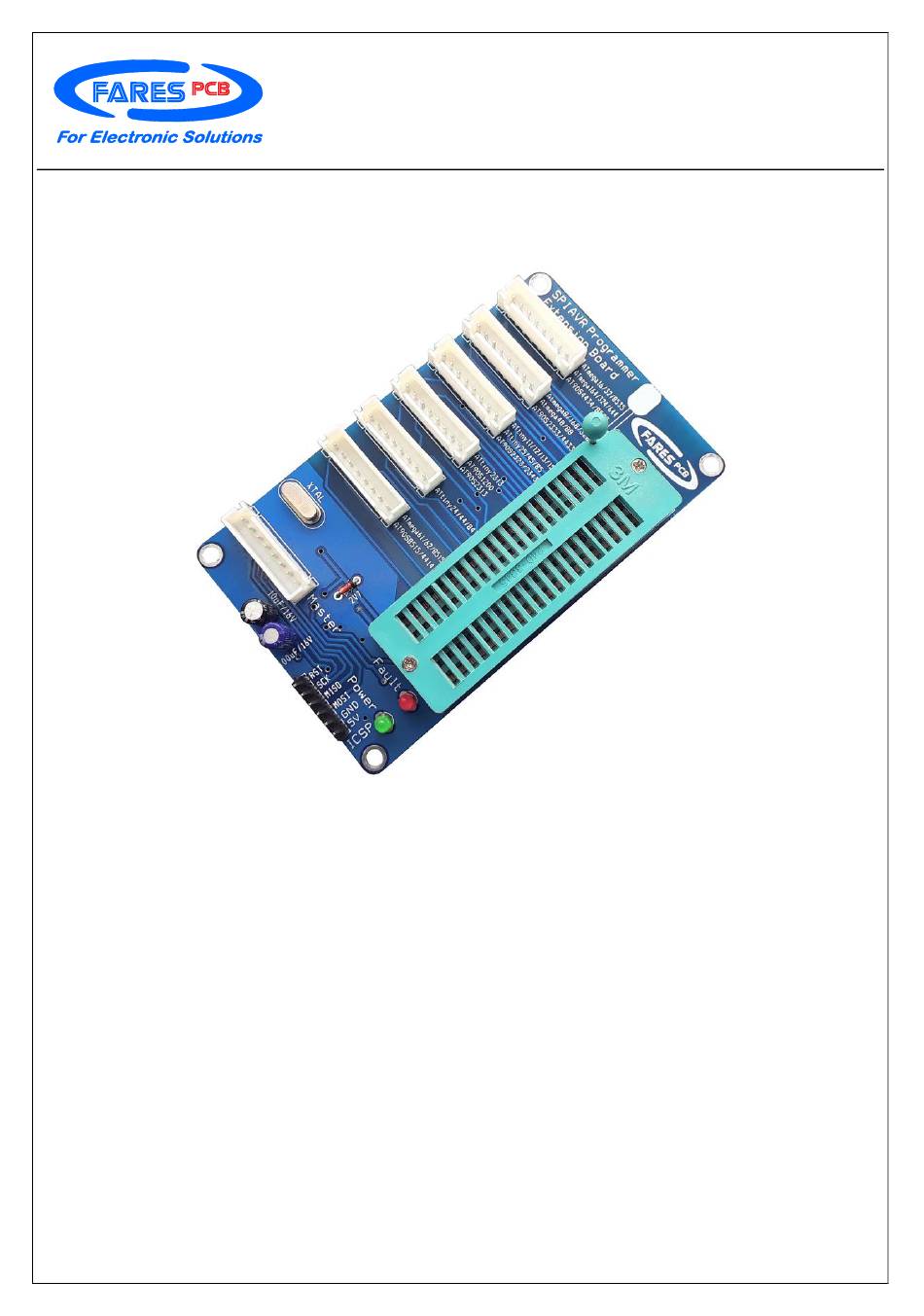

- Page 1 FARESPCB Educational Products SPI AVR Programmer Extension Board SPI AVR Programmer Extension Board ©2021 FARES Corporation 1 of 7 Page...
- Page 2 General Description SPI AVR Programmer Extension Board is an extension board for any SPI AVR programmer enable user to burn code on any type of AVR microcontroller in DIP package on only one ZIF socket. Features • Compatible with any SPI AVR programmer.
- Page 3 SPI AVR Programmer Extension Board ZIF Lever Target Sockets ZIF Socket Master Socket Fault LED Power LED ICSP Socket SPI AVR Programmer Extension Board ©2021 FARES Corporation 3 of 7 Page...
- Page 4 3. Connect the master socket to the proper target socket using the 8- pin flat cable. 4. Connect ICSP socket in SPI AVR board to the corresponding ICSP socket in programmer board using the 6-pin flat cable. 5. Connect the programmer board to PC...
- Page 5 SPI AVR Programmer Extension Board CAUTION • In case of overcurrent, the fault LED will be on, this may occur in three conditions: ➢ Chip mispositioning on ZIF socket. ➢ Chip damaging. Wrong plugging of ICSP cable. ➢ Supported Chips...
- Page 6 SPI AVR Programmer Extension Board SPI AVR Programmer Extension Board with programmer ©2021 FARES Corporation 6 of 7 Page...
- Page 7 For the most up-to-date information, please visit our web site at http://www.fares-pcb.com Information furnished by FARESPCB is believed to be accurate and reliable. However, assumes no responsibility arising from the use of the specifications described. FARES Warrantee: FARES ™...
