FARES INDUSTRIAL PRODUCTS
FARES
PCB
Breakout Board
MODEL: FIPBB01
GENERAL DESCRIPTION
FIPBB01 is a simple , cheap , buffered nonisolated parallel breakout board . It
supports four output control signal groups to drive four axis CNC machine. Each
signal group supports three control signals ( Enable , Direction and Clock ) . Two
output relays could be enabled via DIP switch for additional spindle control. FIPBB01
also supports five dry contact inputs for travel limit switches.
FIPBB01 features
1- Four output control signal groups. labeled X-axis, Y-axis, Z-axis, V-Axis.
2- Ena , Dir , Clk control signals are available. For pin assignment and address show table1.
3- LED indicator for each output signal.
4- Two output relays 5V coil / 3A contacts (resistive load).
5- Normally open and normally closed contacts are available.
6- LED indicator for each output relay.
7- Five external inputs (dry contact).
8- LED indicator for each input status.
9- All outputs and
inputs are brought out via pin header and screw clamp connector for flexibility.
10- no requirements for external power supply. Card is supplied from USB port.
11- Dimension: 180 x 70 x 18 mm.

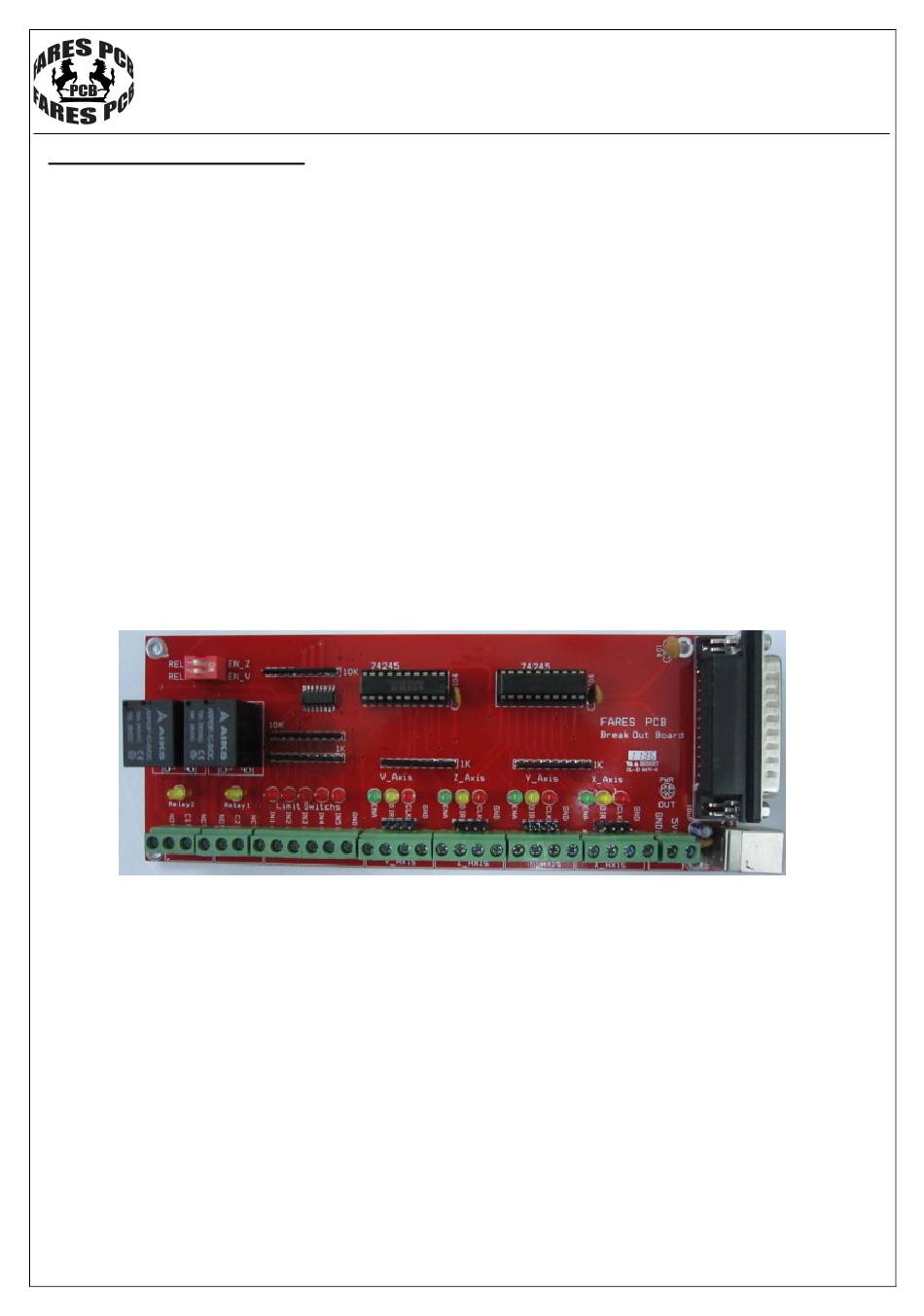

Figure 1. FIPBB01 real PCB view
©2011 FARES
Corporation
1
www.farespcb.com
PCB
Advertisement
Related Manuals for FARESPCB FIPBB01
Summary of Contents for FARESPCB FIPBB01
- Page 1 MODEL: FIPBB01 GENERAL DESCRIPTION FIPBB01 is a simple , cheap , buffered nonisolated parallel breakout board . It supports four output control signal groups to drive four axis CNC machine. Each signal group supports three control signals ( Enable , Direction and Clock ) . Two output relays could be enabled via DIP switch for additional spindle control.
- Page 2 FARES INDUSTRIAL PRODUCTS FARES Breakout Board MODEL: FIPBB01 Figure 2. FIPBB01 output circuit schematic DB25 D1 LED CLK_X CLK_X DIR_X ENA_X ENA_X DIR_X D2 LED CLK_Y DIR_X CLK_X DIR_Y ENA_Y D3 LED CLK_Z ENA_X OUT_X DIR_Z D4 LED CLK_Y ENA_Y...
- Page 3 FARES Breakout Board MODEL: FIPBB01 Table1 shows each output and input port, its pin number on DB25 socket and its function. Use this table to configure the software that interface FIPBB01 card. Table1.Input and output ports Port # Pin# Function Direction 378.0...
- Page 4 FIPBB01. The main window of the software will be opened as shown in figure2. Figure 4. FIPBB01 test program window – To test motor X click the associated buttons for X axis ( up button labeled (X+) and down button labeled (X-) ).
- Page 5 FARES INDUSTRIAL PRODUCTS FARES Breakout Board MODEL: FIPBB01 – To test motor Z click the associated buttons for Z axis ( up button labeled (Z+) and down button labeled (Z-) ). When up button is Pressed 1 – Green LED labeled ENA is turned on.
- Page 6 FARES INDUSTRIAL PRODUCTS FARES Breakout Board MODEL: FIPBB01 To test FEPBB01 on Mach3Mill software, follow the next configurations 1 – Setup the Mach3 program and open Mach3Mill. The following screen will appear 2 – To configure output ports open (Config) – (Ports and Pins), as shown in figure ©2011 FARES...
- Page 7 FARES INDUSTRIAL PRODUCTS FARES Breakout Board MODEL: FIPBB01 3 - The following screen will appear. Check (Port Enabled) box and set the port no to 0x378. 4 – Select (Motor Outputs) tab as shown in figure. Enable the required axis and set Step Pin# and Dir Pin# as shown in figure ©2011 FARES...
- Page 8 FARES INDUSTRIAL PRODUCTS FARES Breakout Board MODEL: FIPBB01 5 – Select (Output Signals) as shown in figure and assign pin number for each output enable. 6 – Select (Input Signals) as shown in figure and assign pin number for the input correspond to axis.
- Page 9 FARES INDUSTRIAL PRODUCTS FARES Breakout Board MODEL: FIPBB01 7 – To configure the operating keys used in manual testing open (Config) – (System Hotkeys) as shown in figure 8 – The following screen will appear ©2011 FARES Corporation www.farespcb.com...
- Page 10 FARES INDUSTRIAL PRODUCTS FARES Breakout Board MODEL: FIPBB01 9 – Click X axis in the increment direction (X++) then the following screen will appear 10 – Press right arrow on the keyboard to assign this key to move the X motor in the increment direction 11 –...
- Page 11 For the most up-to-date information, please visit our web site at http://www.farespcb-eg.com Information furnished by FARESPCB is believed to be accurate and reliable. However, FARES assumes no responsibility arising from the use of the specifications described.
