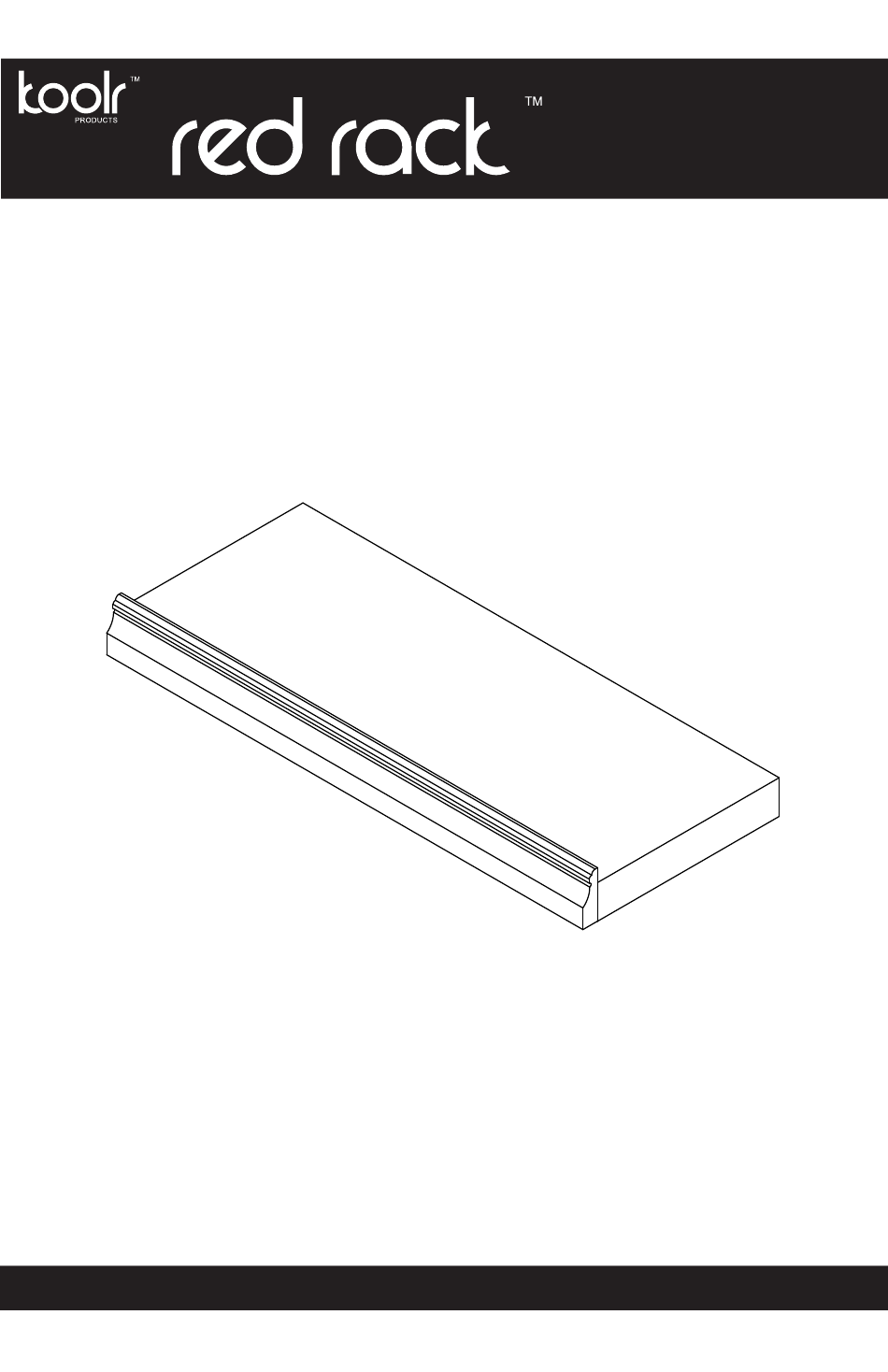

- Page 1 BASE AND TRIM ASSEMBLY & INSTALLATION GUIDE...
- Page 2 TOOLS AND COMPONENTS Hammer Phillips Screwdriver BASE Nails x 8 7/8” Screws x 8 TRIM ASSEMBLE RACK TO BASE ATTACHING RACK TO BASE Screw through bottom horizontal bars into BASE* with 7/8” screws or nails ( figure A ). With base section in place, check level and adjust with shims as required.
- Page 3 ADD TRIM TO RACK AND BASE NAIL IN TRIM Nail through TRIM* into BASE at groove to hide nails ( figure A ). Nail moldings to face of base and racks (see DETAIL B). END CAP (optional) * If END CAP will be installed replace the trim with the one supplied in the END CAP set F23C DETAIL B RACK WALL...
- Page 4 TEST BEFORE USE Use of Red Rack is strictly at your own risk. Koolr Products Inc. will not accept any responsibility or liability for damages resulting from units not assembled precisely as directed, or not securely fastened to a wall or support with suitable fasteners.
