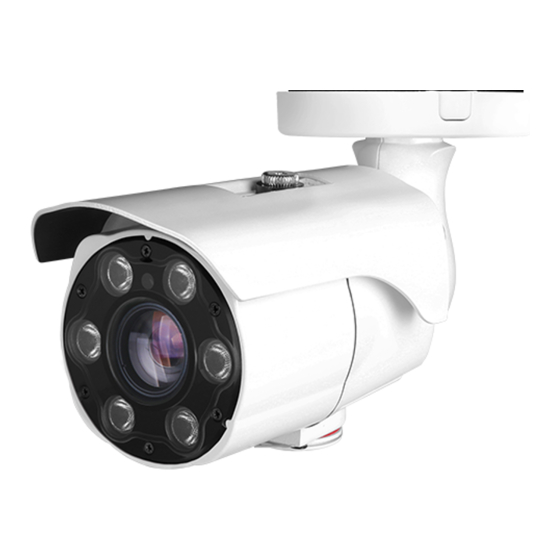

- Page 1 HD IP Fixed Bullet Camera User’s Manual_Install Part Ver. 1.2 / 2019.11 Before installing and using the camera, please read this manual carefully. Be sure to keep it handy for future reference.
-
Page 2: Table Of Contents
Contents INTRODUCTION Important Safety Information Specification Product & Accessories Part Name INSTALLATION Installation Cabling Inserting / Removing an SD Memory Card SPECIFICATION Dimension... - Page 3 Safety Information CAUTION RISK OF ELECTRIC SHOCK. DO NOT OPEN. CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Warning Precaution This symbol indicates that dangerous voltage This exclamation point symbol is intended to alert consisting a risk of electric shock is present within the user to the presence of important operating...
- Page 4 Important Safety Instructions 1. Read these Instructions. - All these safety and operating instructions should be read before the product is installed or operated. 2. Keep these Instructions. - The safety, operating and use instructions should be retained for future reference. 3.
- Page 5 Disposal of Old Appliances 1. When this crossed-out wheel bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC. 2. All electrical and electronic products should be disposed of separately form the municipal waste stream stream in accordance to laws designated by the government or the local authorities.
-
Page 6: Specification
Specification - Spec. FEATURES Optimized Multiple Profile Streaming ROI (Region of Interest) Various Web Plug-in Smart AVC Advanced Built in ISP Two motor MFZ(Motorized Focus Controllable) Fluid Integration Way Double Scan sensor with advanced built in ISP CAMERA I/O & EVENT Image Sensor 1/2.8”... -
Page 7: Product & Accessories
Introduction - Product & Accessories Please check if all the camera and accessories are included in the package. Cables Camera Screw & Torx Wrench Test Monitor Cable Plastic Anchor - 4pcs Template Sheet Waterproof cap & Gasket Quick Manual Manual CD... -
Page 8: Part Name
Introduction - Part Name Sunshield Adjusting Screws Sunshield Lens Pan/Tilt Stoper Screw Control Board Bracket Con Cap Alarm In/Out RJ-45 Connector Waterproof Cap Audio In/Out DC Powr Jack... -
Page 9: Installation
Installation - Installation Before installing your camera, you have to read the following cautions. 1. You have to check whether the location can bear five times of the weight of your camera. 2. Don’t let the cable to be caught in improper place or the electric line cover to be damaged. Otherwise it may cause a breakdown or fire. -
Page 10: Cabling
Installation - Cabling Two Options Use a PoE-enabled swtich to connect data and power through a single cable and begin viewing and recording images instantly. A non-PoE switch will require an adaptor for power transmission. 1. Using a PoE-Enabled Switch 2. - Page 11 Installation - Cabling In 1 In 1 In 1 In 1 Alarm In Alarm Out Network Power Audio Output Audio Input Power Connection Audio Input Please, check the voltage and current capacity of rated Connect the ‘Audio In’ cable of the camera to the device power carefully.
-
Page 12: Inserting/Removing An Sd Memory Card
Installation - Inserting/Removing an SD Memory Card The memory card is an external data storage device that has been developed to offer an entirely new way to record and share video, audio, and text data using digital devices. Micro Recommended SD Card Specification (Not Included) - Type: Micro SD (SD/SDHC/SDXC) - Manufacturer: SanDisk, Samsung, Transcend, Micron... -
Page 13: Specification
Specifications - Dimension Unit : mm ø78 ø4.2 247.2 92.4 96.7 122.6...
