DESCRIPTION:
TF-1TD:
TYPICAL
INSTALLATION:
WATER
LEVEL
SENSOR
NOTE:
CAUTION:
ALLIED INNOVATIONS, LLC
Manufacturing the Product Lines of Len Gordon
7215 Bermuda Rd Las Vegas NV 89119-4304

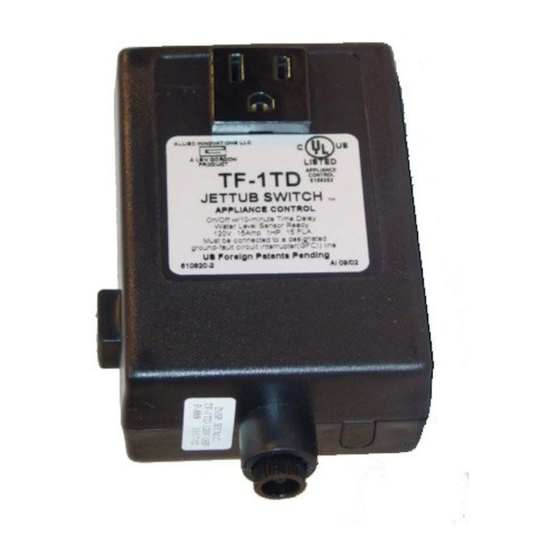

The Allied Innovations, LLC TF-1TD is a solid state on/off air switch with a built in 10-minute
time delay feature. The unit plugs into any standard household wall receptacle. Any 120 volt, 1
hp pump can be plugged directly into the TF-1TD. Pressing the air button initiates a 10-minute
time delay, after which the control automatically turns off. The air button can override time
delay and shut motor off prematurely.
With the installation of the Water Level Sensor, the TF-1TD is inoperable until the tub is filled to
the proper level. This feature will totally eliminate pump burnout and water damage in
commercial installations.
Ground connections are not shown and vary with installations.
MUST BE CONNECTED TO A DESIGNATED GROUND-FAULT CIRCUIT INTERRUPTER
(G.F.C.I.) LINE.
READ AND SAVE THESE INSTRUCTIONS

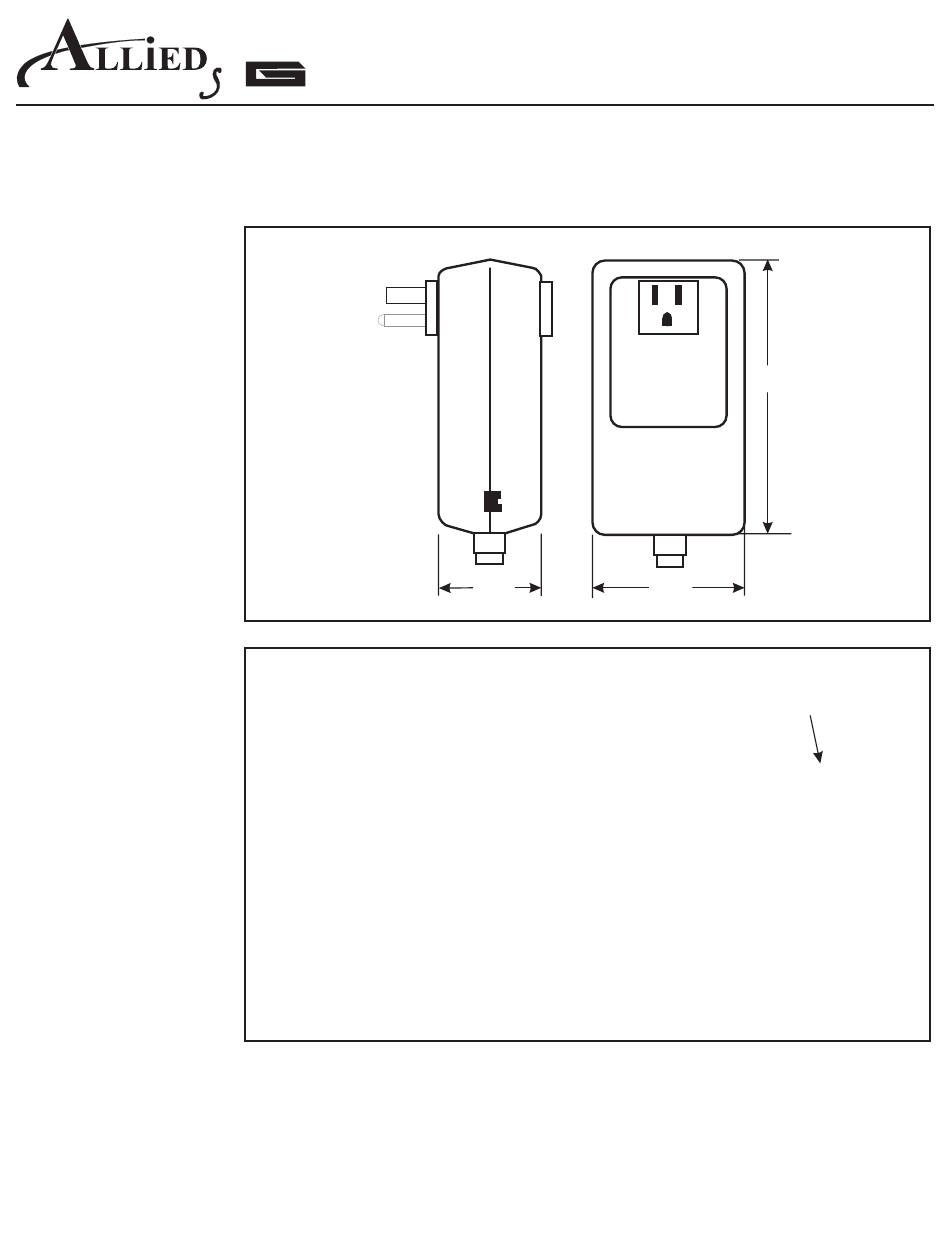

1-3/4"
3-1/8"
TF-1TD
Jettub Switch ™
4-3/8"
