Summary of Contents for Hot Tub Products SpaEase 200

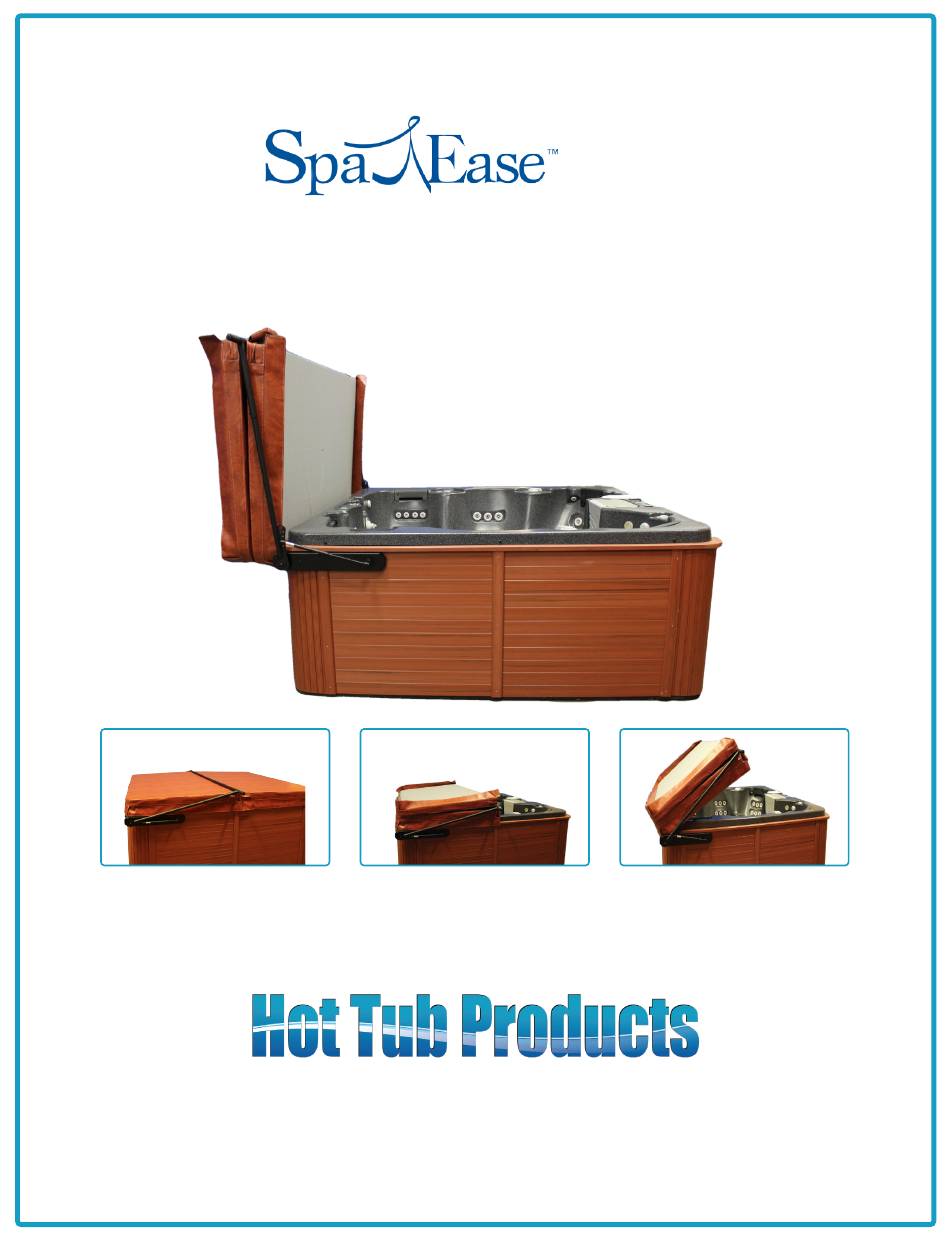

- Page 1 Hot Tub Cover Lifter 2 Toelles Road, Suite 13 Wallingford CT 06492 www.hottubproducts.com...
- Page 2 Congratulations on the purchase of the SpaEase 200 Cover Lifter. On behalf of Hot Tub Products LLC, we thank you for choosing one of our products. We are a family business that has been manufacturing hot tub products since 1983. All of our staff takes great pride in the engineering and design in everything we produce.
-
Page 3: Tools Required
SpaEase 200 Parts List TOOLS REQUIRED • Screw Gun • Wrenches: - 1/2” - 7/16” • Drill Bits: - 9/64” • Tape Measure • Phillips Screwdriver Optional: Tube Cutter may be required to cut aluminum tube on smaller spas. A) Mounting Bracket (2) L/R... - Page 4 Brackets. This is an optional part that comes independently packaged for large radius spas. Do not use the SpaEase 200 in high wind conditons. Injury from the CAUTION spa cover being blown over and impactng the spa user can occur.
- Page 5 SPAEASE 200 INSTALLATION INSTRUCTIONS Figure 3 CLEARANCE REQUIREMENTS: Requires a 7” clearance at the rear of the spa for the cover to open (See fig 3). It may require 1 or 2 more inches if you order a cover with a thicker taper 5” x 3” or 6” x 4”.
- Page 6 STEP 2 – INSTALL “COVER PLATE” (See Fig 5) Position Cover Plate over the Mounting Bracket and with a Phillips handheld Figure 6 screwdriver and secure the Machine Screws into the 2 center holes. Then install the Rubber Sleeve onto the Safety Stop. Crossover Bar (short side) REPEAT STEPS 1 THROUGH 2 ON THE OTHER SIDE...
- Page 7 STEP 8 – INSTALL 2ND SWING ARM Slide the 2nd Swing Arm into the 2nd Crossover Bar and position the opposite side of the Swing Arm onto the Boss on the Mount- ing Bracket closest to the rear of the spa. Then secure the Swing Arm just as it was done on the other side. See Fig 11 Again, make certain to install a Teflon Washer, on both sides of the Swing Arm along with a Black Fender Washer and a Lock Washer(See Fig 7) before tightening the Hex Bolt until the Lock Washer is compressed.
-
Page 8: Optional Accessories
3 Ways to Upgrade Your Lifter ® 1. Add a Automatic Operating System This will allow you to operate your SpaEase 200 Lifter with the Simple Turning of Key on Your Spa Cabinet. 2. Upgrade to a Cover & Lifter SAVES YOU MONEY...
