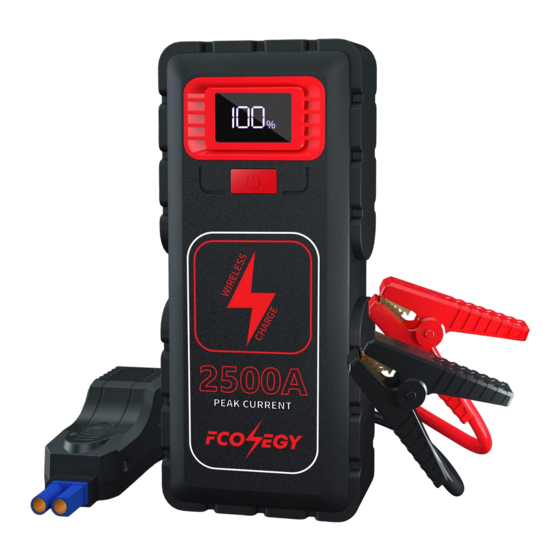

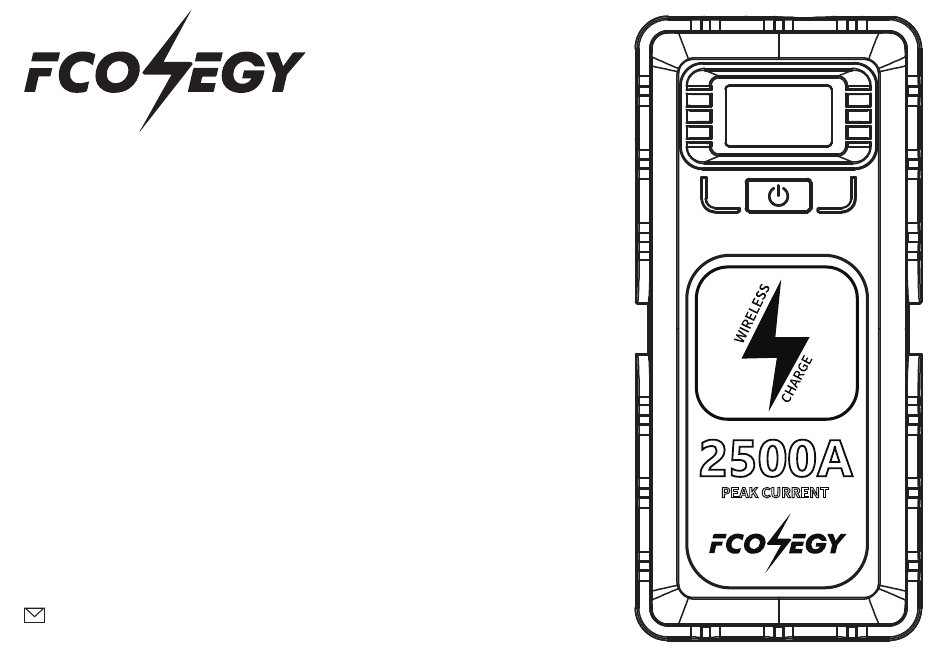

- Page 1 User Manual Portable Car Jump Starter Model:FC500 Support Team: support@fconegy.cn...
-
Page 2: Package Contents
Package Contents 1*DC- Cigarette Lighter 1*EVA Bag Adapter User Manual Portable Car Jump Starter Model:FC500 Support Team: support@fconegy.cn 1* FC500 Car Jump Starter 1*Smart Battery Clamp 1*USB-C Charging Cable 1*User Manual... -
Page 3: Product Specifications
Product Specifications Model FC500 Battery Capacity 25800mAh Starting Current 1200A Peak Current 2500A Type C Input & Output 5V/3A 18W(Max) USB1 Output 5V/2.4A USB2 Output (Quick Charge) 5V/3A 9V/2A 12V/1.5A DC Output 12V-16V 10A 10W(Max) Wireless Charger Temperature Rang： -20℃~60℃... -
Page 4: Technical Specifications
Technical Specifications... -
Page 5: Operation
FUNCTION OPERATION Jump Starting Port Insert the plug into the jump starting port LED Flashlight Flashlight modes: Solid, SOS, Alert USB Output 1 5V/2.4A USB Output 2 5V/3A 9V/2A 12V/1.5A Type C Input and Output 5V/3A 18W(Max) DC Output 12V-16V 10A Power Button Power ON/OFF Black Clamp... -
Page 6: Getting Started
GETTING STARTED Charging the jump starter: 1. Connect the jump starter and the power source via the USB C cable. 2. Short press the ON/OFF button to turn on the product. While charging the jump starter, the LED Display Screen will show the percent power increased. - Page 7 How to jump starter your car NOTE: This product is for 12V car only. ●Check to make sure that battery level is above 70% before you use it to jump start your car. Step 1: Insert the plug of the smart battery clamp completely into the jump starter. If the green and red light indicators on the battery clamp are flashing alternately you are safe to move on to to the next step.
- Page 8 Step 3: Start your car. When the indicator light of the smart clamp is green, you need to start the vehicle within 30s.lf over 30s, the clamp will stop working,you need to connect again from Step 1. If you failed to start your car, you need to disconnect the battery clamp from the vehicle and the jump starter.
- Page 9 Step 4: Once your car is started, please remove the battery clamp from the car-battery and the jump starter within 30 seconds. Trouble Shooting of LED Indicator on the Clamp Indicator Situation Red and green lights flash alternately. The clamp only connected to the jump starter Green light is always on,and the buzzer beeps once.
-
Page 10: Charging Your Devices
Charging your devices USB/Type-c Output 1. Connect FC500 and your iPhone, smart phones or other electronic devices via USB/Type-c cable. 2. Press the ON/OFF button to turn on the car jump starter. 3. Unplug the cable when no charge is required. -
Page 11: Troubleshooting
Trouble shooting Issue Cause Remedy Cannot Make sure to clamp the RED jumper cable to the Wrong clamp connection Jump start POSITIVE (+) post And BLACK jumper cable to on the car battry. vehicle NEGATIVE (-) post or car interior. Jump starter timed out. - Page 12 Warnings 1. Always wear safety glasses when jump starting a battery (to protect your eyes), and gloves when handling a battery (to protect your hands). 2. When jump starting a vehicle, please ensure that the blue plug is securely fitted into the jump start socket on the jump starter.
-
Page 13: Battery Disposal
3. Do not put fingers or hands into the product. 4. Do not use any attachment that is not sold by FCONEGY which may result in a risk of fire, electric shock, or injury to persons. - Page 14 8. Do not disassemble the jump starter; take it to a qualified service person when service or repair is required. Incorrect reassembly may result in a risk of fire or electric shock. To reduce the risk of electric shock, unplug the jump starter from the outlet before attempting any instructed servicing. 10.
- Page 15 g. Remove personal metal items such as rings, bracelets, necklaces and watches when working with a lead-acid battery. A lead-acid battery can produce a short circuit current high enough to weld a ring or the like to metal, causing a severe burn. 12.
