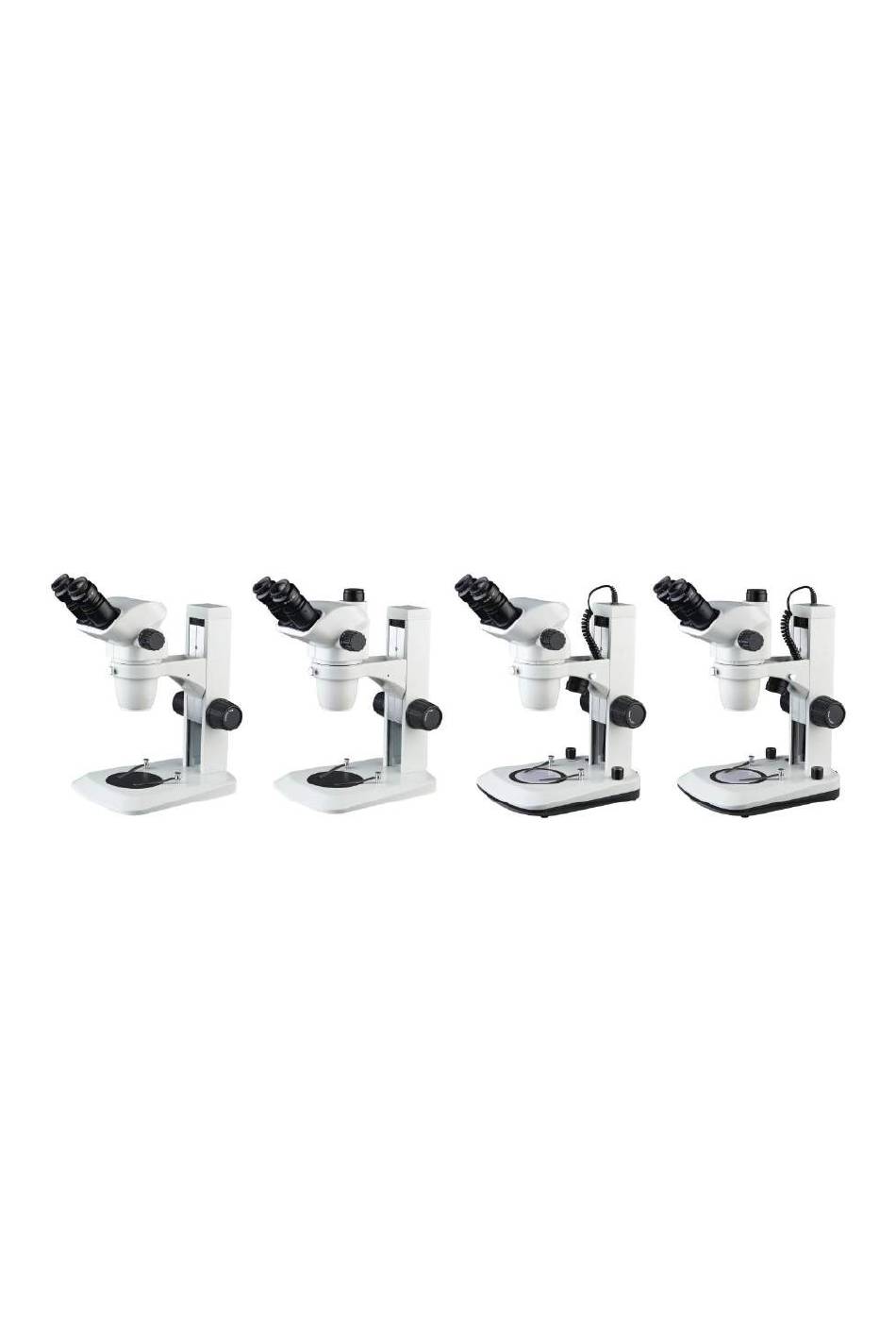

BS-3030 Series
Zoom Stereo Microscope
Instruction Manual
BS-3030A
BS-3030AT
BS-3030B
BS-3030BT
This instruction manual is for the stereo microscope BS-3030 series. To ensure the safety and
obtain optimum performance and familiarize yourself fully with the use of this microscope, we
recommend that you read this manual thoroughly before operating the microscope. Please keep
this instruction manual in an easily accessible place near the microscope for future reference.
BioTools Inc.
Advertisement
Table of Contents
Related Manuals for BioTools BS-3030 Series
Summary of Contents for BioTools BS-3030 Series
- Page 1 BS-3030B BS-3030BT This instruction manual is for the stereo microscope BS-3030 series. To ensure the safety and obtain optimum performance and familiarize yourself fully with the use of this microscope, we recommend that you read this manual thoroughly before operating the microscope. Please keep this instruction manual in an easily accessible place near the microscope for future reference.
-
Page 2: Table Of Contents
Before use ................. 1 1.Nomenclature..............2 2.Assemblage................3 3.Operation 3-1.Use the black and white work board.......4 3-2. Adjust the degree of tightness of the focusing arm..4 3-3.Set the specimen slide...........4 3-4.Adjust the specimen slide..........4 3-5.Adjust the interpupillary distance........5 3-6.Mount and remove the optional eyepiece micrometer..5 3-7.Use auxiliary objective...........5 3-8.Mount C type photo set and TV set.........5 3-9.Adjust the focus of TV set..........5... -
Page 3: Before Use
Operation 1) As microscope is a precision instrument, handle with care, avoiding impact or abrupt movement during transportation. 2) Microscope ought to be placed in a dry and clean place. Do not expose the microscope in the sun directly. Avoid high temperature and violent vibration. Usually, following environment is required indoor temperature: 0°C - 40 °C, Max. -
Page 4: Nomenclature
1. Nomenclature Eyepiece Zoom control knob Focusing Head lock screw Head Base Clip Black and white work board Lock C-mount screw Focusing ring PK-mount... -
Page 5: Assemblage
2. Assemblage The following diagram for the installation, the number representatives the order. Before installing, it should ensure that all connections has clean surface, the installation should be taken to avoid the surface of the lens was dirty or scratched. C type camera C type mount PK-mount... -
Page 6: Operation
3. Operation 3.1 Use black and white work board (1) If the specimen is white or transparent, make the black one as background, to enhance the contrast. (2) Take off or change the work board, move the work board (Fig.1) make one side down, then the other side will be up.(Fig. -
Page 7: 3-5.Adjust The Interpupillary Distance
Adjust the interpupillary distance (1) Adjust the prism housing along the direction of arrow of the Fig.4 till the observation is comfortable. Mount and Remove the Optional Eyepiece Fig.4 Micrometer With scale (1) Turn and remove the mounting ring from the eyepiece.(Fig.5) (2) Clean the eyepiece micrometer and mount it to the mounting with the inscription side downward. -
Page 8: Nomenclature
J3 base BS-3030 series 4. Use Microscope stand Make sure the power is cut off when replace the fuse. Make sure the earth wire is correctly connected. Black and white stage plate, glass stage plate, diameter 95mm 4.1 Nomenclature Fig.9 4.2 Operatio n... -
Page 9: Technical Parameter
5.Technical Parameter 5.1 Optical parameter Eyepiece Eyepiece (optional) Working Zoom WF10X/22mm WF15X/16mm WF20X/12mm distance Field of Field of Field of magnification magnification magnification magnification (mm) view(mm) View(mm) view(mm) 6.7X 32.8 10.05X 23.9 13.4X 0.67X 17.9 10.5X 22.86 0.7X 31.4 17.1 0.8X 27.5 1.5X... -
Page 10: Troubleshooting
6.Trouble shooting The performance of the microscope can't be made fully because of unfamiliar using, this following table will give some advice. 1. Optical system (1) Brightness is too bright or too dark Brightness adjust not well Make right adjustment Dirt on the specimen Clean the specimen Dirt on the surface of eyepiece...
