- Page 1 8 Channel SDI/HDMI Live Streaming Switcher User manual _v1.0...
- Page 2 Introduction Thank you very much for using our portable broadcast platform products!please read the manual carefully before using this product. This manual describes in detail the functions, installation and operation of the portable broadcast station general principles or methods. This series of portable broadcast station is a high performance, multi - function product of live broadcast switching station.
- Page 3 Oton office. * Warranty only valid in the country or region of purchase. * Shipping expenses are at Oton for any delivery claim - you get a defective piece at box just opened. What Is Not Covered It is important to note that our warranty is not an unconditional guarantee for the duration of the Program.
-
Page 4: Table Of Contents
Table of Content Overview....................................1 Key Features...................................1 Technical Specification..............................2 Panel Mapping..................................3 Using Multiview..................................6 Getting Started..................................9 * Cable Connection..............................9 * Loading stills or video from USB drive........................9 * Configuration for Video Decoding..........................9 Connecting the Switcher to Web Page........................... 10 * Connecting to a Network-Auto Recognition of IP Address................10 * Connecting to a Network - Manually Setting a Fixed IP Address..............10 Switching Your Production.............................. -
Page 5: Overview

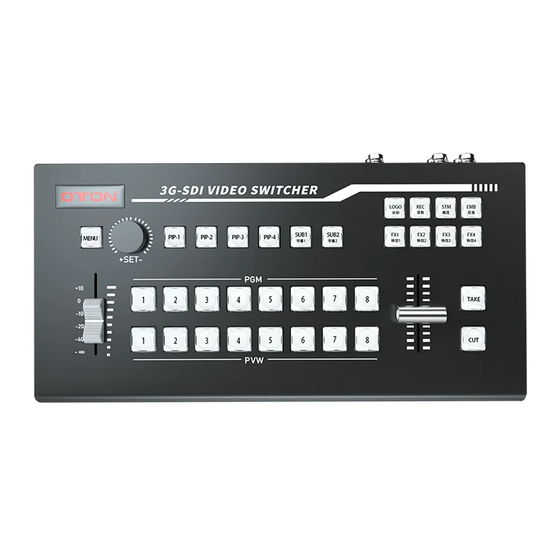

Overview Oton Geek S08 series SDI HDMI live stream video mixer can switch up to 8 different video inputs (4xSDI + 2 x HDMI + 2 x IP Stream. The input format will be auto-detected by the switcher, and the output format is selectable by the user. -
Page 6: Technical Specification
* Support multistream to 4 service platforms at the same time * Simultaneous record PGM Video to USB Drive * support external 4G wireless dongle for alternative network connection * Support EMB(Emergency) Mode * Support tally indication for camera status Technical Specification Connections Video Source... -
Page 7: Panel Mapping
Video Recording Channel 1x Program Video Recording Duration Depends on the capacity of USB disk and recording bitrate 10240 kbps (13.6 mins /GB) – default 40960kbps (3.4 mins/GB) – max Recording Bit Rate 500-40960kbps adjustable Resolution 1920×1080 Video Format USB Media File USB Disk Format FAT32, NTSF, EXFAT Graphic Format... - Page 8 Icon Function Description Numbered Simply press the numbered buttons video sources to selected preview or program sources. program and red color refers to program status, green preview status color refers to preview status control 1-4: SDI Sources 5-6: HDMI Sources 7-8: decoding video or USB media T-Bar Transitional Switching controller...
- Page 9 Add Subtitle SUB1: Vertical subtitle SUB2: Horizontal subtitle Tips: vertical subtitle supports Chinese only. Transition Press the corresponding button to select Effects transition Effects, you can configure the effects in MENU or web-based page. Logo Press the button to enable adding logo to your live video, press again to disable it Recording Press the button to enable recording...
-
Page 10: Using Multiview
USB 2.0 &USB 3.0 Port * Load the stills or video in USB Drive * Recording program video to USB drive * Connect 5G wireless dongle for alternative network connection（HUAWEI E3372 suggested ) Web management RJ45 Port Live streaming & Video decoding 1000Mb/s Tally Indication Tally indication let you know which... - Page 11 Preview: The preview lets you monitor the source currently switched to the preview output. This view is helpful to practice switching between sources, so you can see what it will look like before switching to the program output. You need to change the switcher operation to program or preview switching to make use of the preview view.
- Page 12 volume. If the audio level rises above 54dB the meter will illuminate red to warn you that it is close to the maximum strength of 60dB. Tips: 1. 0-42dB: green color, 42-54bB, yellow color, 54-60dB red color refers to audio is active permanently, refers to audio is following video, refers to audio is inactive even if the source is on air.
-
Page 13: Getting Started
Recording View: the view displays recording status, duration counter and USB drive capacity. When USB drive is connected and start recording, the REC indicator turn to red and duration counter starts to work, you can also see how much disk space is left, when the capacity is less than 300MB, the switcher will stop recording. -
Page 14: Connecting The Switcher To Web Page
3. Select the input for channel 7 or 8 on panel 4. You can see it shows in channel 7/8. Video Encoder Please log in the backend of your encoder and find it’s decoding address, you can paste either address below, supported protocol: HTTP-TS, RTS, HLS, FLV, RTMP 5. -
Page 15: Switching Your Production
means both units share the first three fields of numbers, but have their own identifying number in the last field so they won’t conflict with each other. This is generally the most important principle to know when working via Ethernet. Windows System 1. -
Page 16: Switching Sources Using Transition
* Switching sources using transition Transitions let you smoothly switch from one source to another over a defined duration. For example, a mix transition gradually fades the current source into the next until the original source is no longer visible. A wipe transition will move a line across the original source revealing another effectively wiping across the image. -
Page 17: Chroma Key
In the case of a chroma key the key/cut signal is generated from the fill signal. Performing a chroma key Oton Geek S08 series features an advanced chroma keyer with user friendly adjustment options. These controls help you achieve the best key, improving the blend of foreground and... -
Page 18: Adding Logo
1. Select background and fill source Log in web back end, select Application settings > PIP Buttons Preset, Select Key for PIP1/2/3/4 and click Apply or you can press MENU button and configure the KEY to PIP1/2/3/4, then press SET button. 3. -
Page 19: Adding Subtitles
Tips: Logo Image Format: PNG, BMP, TGA, JPG (PNG recommended) Image Size:<1MB, 200Kb recommended Press MENU button for quick logo selection. Adding Subtitles The switcher supports Horizontal subtitle and vertical subtitle(Chinese language only), size, color, font and location adjustable. You can preset 10 sets subtitle in advance. To add subtitle to your video, Preset subtitles at the back end and click Apply. - Page 20 Tips: 1.The ‘ON’ button contains different audio controls: AFV(default), Audio on and Audio Off, press the button to switch between them. AUDIO 1 – audio for each channel ON – When the input’s audio is set to ‘on’, the input audio will be heard permanently,even if the source is not currently on air.
-
Page 21: Switching Between Horizontal Video & Vertical Video
Switching Between Horizontal Video & Vertical Video The device features with both horizontal video and vertical video. Vertical video today is mostly made and viewed on Smartphones. But it also can be made in a professional studio with multiple cameras at the same high level as widescreen content. -
Page 22: Recording Your Video
Recording Your Video The Switcher lets you record your live stream video to USB drive via USB3.0 port. Simply plug in an USB disk or hard drive to the USB3.0 port and press REC button and you are now recording your broadcast, to stop recording, simply press REC button again. - Page 23 red when the camera is on-air. Some setups will use a green light when a camera is on preview, this way the people on set and the camera operators will know which camera is going to be the next live camera.
-
Page 24: Host Configuration
Host Configuration * Change password Default ID: admin, default password:admin, you can change your password here. * Change device IP address Default IP address for the switcher is 172.16.161.106, you can change the IP address per your needs, so that it can work with your other devices. If you forget the revised IP address, you can reset the switcher and it will restore to the default IP address. -
Page 25: Synchronize Device Time With Your Local Time
* Synchronize device time with your local time * System Update Click "Select File" option in the system update interface, select the hdmiswitch.bin file or zip file, click "Upload" and wait for the progress bar to complete, then click "restart" to update the system. System upgrade will not change the device settings...
