StarEcho PT0248C2S Assembly Instructions Manual

10 x 13 ft gazebo
Hide thumbs

Advertisement

Quick Links

Download this manual
ASSEMBLY INSTRUCTIONS
Item No.:PT0248C2S

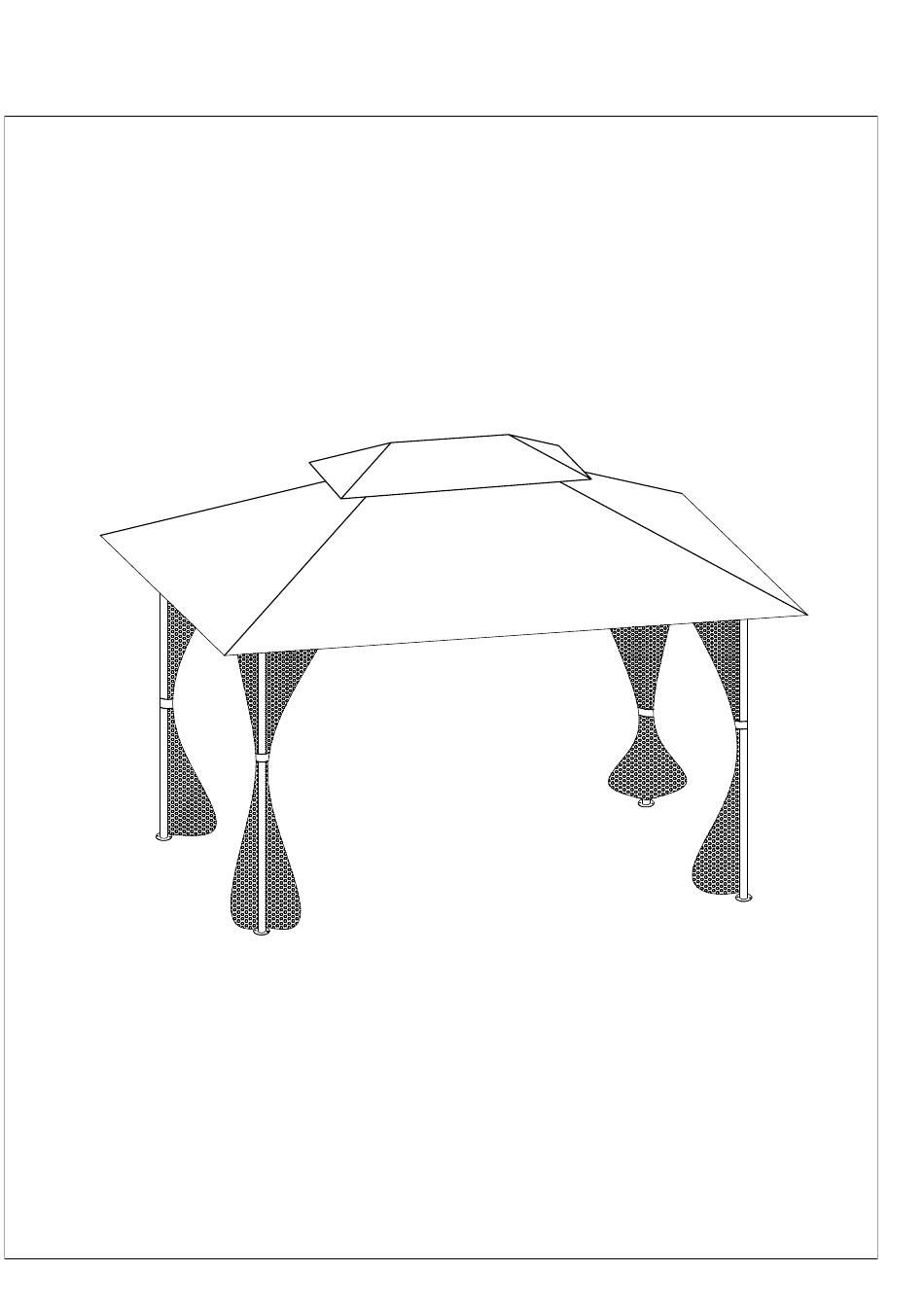

10 x 13 ft Gazebo
Thank you for your purchase!
We are pleased that you have chosen StarEcho for your outdoor gazebo purchase.
We hope that you enjoy the unmatched quality, comfort, and style of your new patio
item. Every piece is meticulously considered all the way down to the smallest details,
exclusively for you, by our world class design team. We know you have a choice when
it comes to your patio gazebo needs, so from our team to yours, thank you for letting
us be a part of your outdoors.
Made in China

Advertisement

loading
Need help?

Need help?

Do you have a question about the PT0248C2S and is the answer not in the manual?

Questions and answers

Related Manuals for StarEcho PT0248C2S

Summary of Contents for StarEcho PT0248C2S

  • Page 1 10 x 13 ft Gazebo Thank you for your purchase! We are pleased that you have chosen StarEcho for your outdoor gazebo purchase. We hope that you enjoy the unmatched quality, comfort, and style of your new patio item. Every piece is meticulously considered all the way down to the smallest details, exclusively for you, by our world class design team.
  • Page 2 SAFE INFORMATIONS WARNING:  When assembling and using this product, basic safety precautions should always be followed to reduce the risk of personal injury and damage to equipment. Please read all instructions before assembly and usage.  Some parts may contain sharp edges, wear protective gloves if necessary. ...

  • Page 3: Parts List

    PARTS LIST Top Leg Middle Rod Post Lower Leg Small Roof Post Connector Short Side Top Connect Beam Short Side Big Roof Beam Connector Long Side Beam Canopy Middle Small Beam Canopy Upper Netting Slant Bar Lower Bolt Slant Bar M6x15mm Middle Bolt...

  • Page 4: Assembly Steps

    ASSEMBLY STEPS ASSEMBLY OF LONG SIDE BEAM x 2 Step 1: Connect Long Side Beam (D1) to Middle Long Side Beam both end (D3). fix by using Bolt (BB). ASSEMBLY OF THE UPPER POST TO LONG SIDE BEAM x 2 Step 2: Connect Upper Post (A1) to assembled Long Side Beam(D1,D3).
  • Page 5 ASSEMBLY OF SHORT SIDE BEAM TO UPPER POST x 2 Step 3: Connect Short Side Beam (C1 )and (C2) to assembled Upper Post (A1), fix by using Bolt (BB). ASSEMBLY OF ACROSS BEAM x 2 Step 4: Connect assembled Short Side Beam (C1 )and Short Side Beam(C2).
  • Page 6 ASSEMBLY OF NETTING ROD TO LONG SIDE FRAME x 2 Step 5:Insert Long Side Netting Rod (E1)to Middle Rod (E2).then attach assembled Netting Rod(E1,E2) to assembled Beam (D1),fix by using Bolt (BB). ASSEMBLY OF SMALL ROOF FRAME Step 6: Insert Top Connect Bar (T1)into Small Top Connector (J), connect other end of Top Connect Bar (T1) and Big Top Connector (T2),by using bolt (AA).
  • Page 7 ASSEMBLY OF MIDDLE ROOF FRAME x 4 Step 7: Insert Upper Slant Bar (G2) into Lower Slant Bar (G1); Insert Middle Top Bar (H2) into Middle Upper Bar(H1). ASSEMBLY OF SHORT SIDE ROOF BAR TO ACROSS BEAM (Attention: Assemble this step require 2 person, one of person fix top connector position.) Step 8: Attach Upper Top Bar(H1) to Top Connector ( J);...
  • Page 8 ASSEMBLY OF LONG SIDE ROOF BAR TO ACROSS BEAM Step 9: Attach Upper Top Bar(H1) to Big Top Connector ( T2); attach Lower Top Bar (H2) to assembled Long Side Beam (D3) and Middle Long Side Netting Rod(E2) together, by using Bolt (BB). ASSEMBLY OF TOP FRAME Step 10: If assembled Middle Netting bar(E2) incorrect direction, Attach Middle Netting Rod (E2) to Middle Beam (D3) by Using one Bolt (BB).
  • Page 9 ASSEMBLY OF TOP SLANT BAR Step 11: Insert Upper Slant Bar (G1) into Small Top Connector (J); connect Lower Slant bar (G2) and Upper Post (A1). SETTING OF BIG CANOPY ON ROOF Step 12: Put Big Canopy (01) on frame.
  • Page 10 ASSEMBLY OF ROOF EXTENSION TUBE Step 13: Insert Slant Bar(G1) into Short Extension Tube(K4); insert Slant bar (G2) into Long Extension Tube(K5). SETTING OF SMALL CANOPY ON ROOF FRAME Step 14: Put Small Canopy (02) on Top frame,fix four corner to Short Extension Tube (K4), then adjust Tube to suitable length.
  • Page 11 SETTING OF BIG CANOPY ON ROOF FRAME Step 15: Insert Middle Top Bar(H2) into Big Canopy edge pocket(01),then fix Big Canopy four corner to Long Extension Tube (K5), adjust Tube to suitable length. ASSEMBLY OF GAZEBO POST Step 16: Connect Lower Post (A2) and Upper Post (A1).
  • Page 12 SETTING OF NETTING Step 17: Hang Netting (P1) on Netting Bar(E1,E2), by using Ring (LL). ASSEMBLY ASSEMBLED GAZEBO ON GROUND Step 18: Fix assembled gazebo Lower Post (A2)on ground by using Stake (II).

  • Page 13: Limited Manufacturer's Warranty

    A purchaser of an "open box," previously-returned, or "clearance" item, as well as original purchasers outside of the warranty period, may obtain replacement parts from StarEcho for products in current production, at nominal cost.
