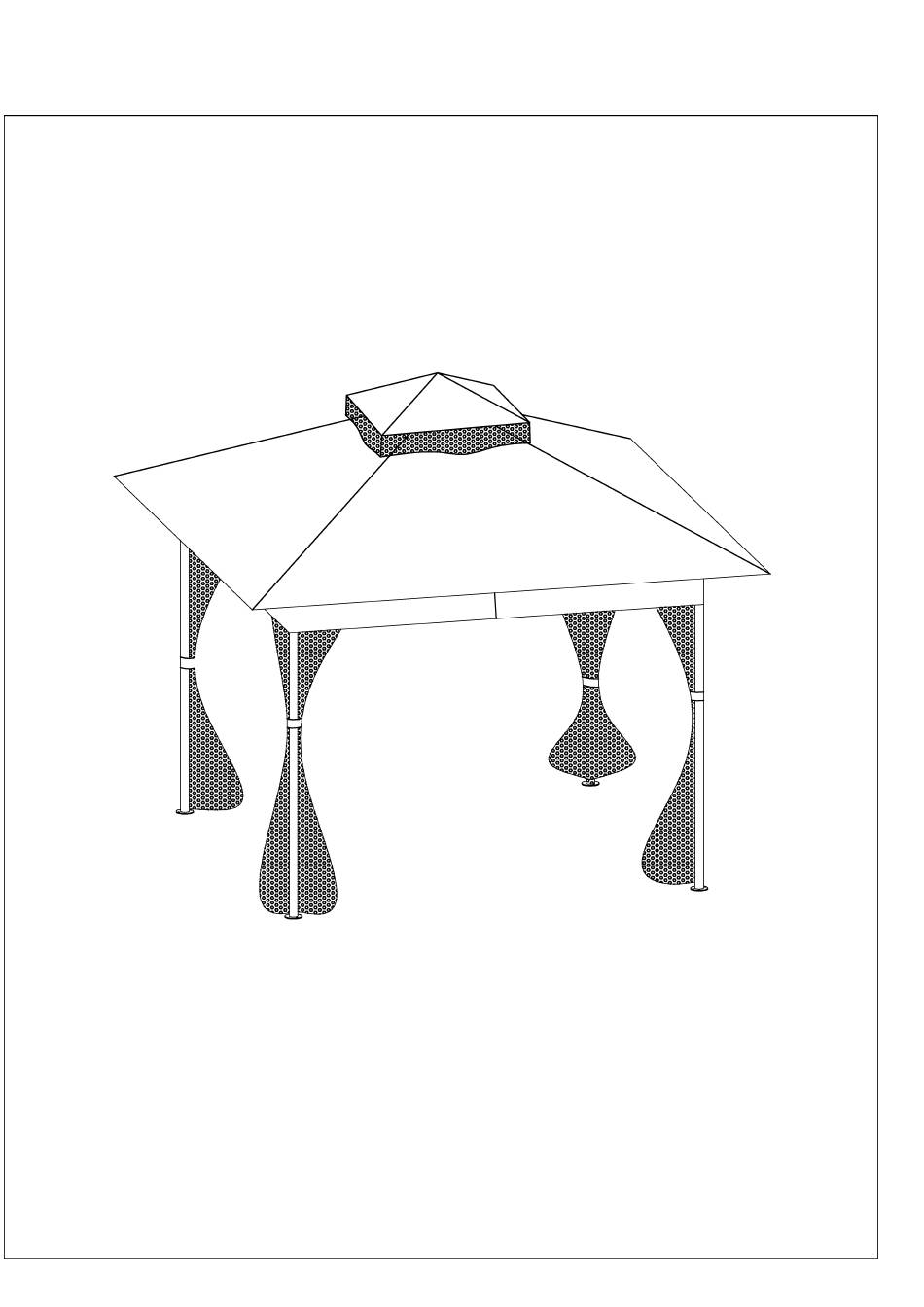

Assembly Instructions
Item Number: PT0148A2S
Thank you for your purchase!
We are pleased that you have chosen StarEcho for your outdoor gazebo purchase.
We hope that you enjoy the unmatched quality, comfort, and style of your new patio item.
Every piece is meticulously considered all the way down to the smallest details, exclusively
for you, by our world class design team. We know you have a choice when it comes to your
patio gazebo needs, so from our team to yours, thank you for letting us be a part of your
outdoors.
Made in China

Advertisement

loading
Need help?

Need help?

Do you have a question about the PT0148A2S and is the answer not in the manual?

Questions and answers

Related Manuals for StarEcho PT0148A2S

Summary of Contents for StarEcho PT0148A2S

  • Page 1 Item Number: PT0148A2S Thank you for your purchase! We are pleased that you have chosen StarEcho for your outdoor gazebo purchase. We hope that you enjoy the unmatched quality, comfort, and style of your new patio item. Every piece is meticulously considered all the way down to the smallest details, exclusively for you, by our world class design team.
  • Page 2 SAFE INFORMATIONS WARNING:  When assembling and using this product, basic safety precautions should always be followed to reduce the risk of personal injury and damage to equipment. Please read all instructions before assembly and usage.  Some parts may contain sharp edges, wear protective gloves if necessary. ...

  • Page 3: Parts List

    Parts List Parts Name Item No. Parts Images Parts Name Item No. Parts Images Qty. Short Top Leg • Extension G ·· 竺 鲁） Post Tube 荨 Lower Leg ， � 泗 Connector Post 二 Across ， Beam 1 Canopy Small Across Canopy...
  • Page 4 Step 1: Connect Across Beam 1 (C1) and Across Beam 2 (C2). Step 2: Connect Top Leg Post (A1) to assembled Across Beam 1/2 (D1/D2), locking by Bolt (BB). (Attention: lay flat beam on the ground, and face up.)
  • Page 5 Step 3: Connect Across Beam 1/2 (C1/C2) to assembled Top Leg Post (A1) by Bolt (BB). Step 4: Connect assembled Across Beam 1/2 (C1/C2).
  • Page 6 Step 5: Insert Lower Slant Bar (G2) into Upper Slant Bar (G1); Insert Lower Top Bar (H2) into Upper Top Bar (H1). Step 6: Connect Upper Top Bar (H1) and Top Connector (J); Connect Lower Top Bar (H2) and Across Beam 1/2 (C1/C2) by Bolt (BB).
  • Page 7 Step 7: Connect Upper Slant Bar (G1) and Top Connector (J); Insert Lower Slant Bar (G2) into Top Leg Post (A1). Step 8: Put Big Canopy (O1) on big roof frame.
  • Page 8 Step 9: Insert Short Extension Tube (K4) into Upper Slant Bar (G1); Insert Long Extension Tube (K5) into Lower Slant Bar (G2). Step 10: Put Small Canopy (O2) on small roof frame, fix four corners to Short Extension Tube (K4) and adjust tube to suitable length.
  • Page 9 Step 11: Insert to Middle Top Bar (H2) into side edge pocket on Big Canopy (O1); Insert Long Extension Tube (K5) into Big canopy corner pocket, adjust the tube to suitable length. Step 12: Connect Lower Leg Post (A2) and Top Leg Post (A1). (Attention:this step requires two persons).
  • Page 10 Step 13: Hang Netting (P1) on netting rod by Ring (LL). Step 14: Fix Gazebo Lower Leg Post (A2) on the ground by Stake (II).
  • Page 11 Step 15: Connect the Hook to the Top Connector (J). Attention: the hook should be under the Top Connector (J).

  • Page 12: Care And Maintenance

    A purchaser of an "open box," previously-returned, or "clearance" item, as well as original purchasers outside of the warranty period, may obtain replacement parts from StarEcho for products in current production, at nominal cost.
