Filtrific S44 Installation

Fixed skimmer with t40f filter tank

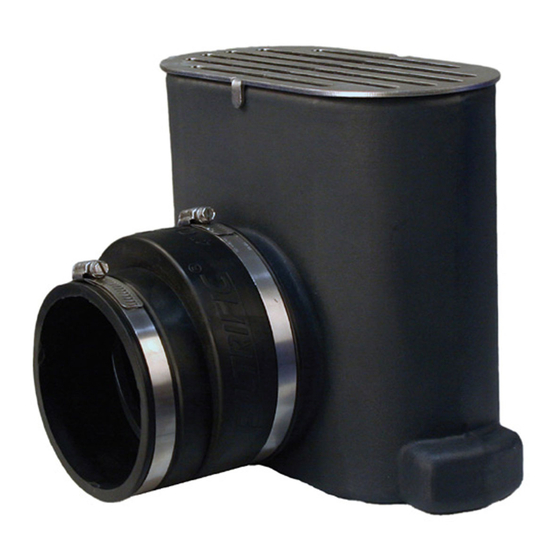

S44 Fixed Skimmer with T40F Filter Tank

S44 Skimmer & T40F Filter Tank| VanishingWater

Vanishing Water Installation

A Drain Intake allows water to drop

below the top of the skimmer when

the pump is shut off.

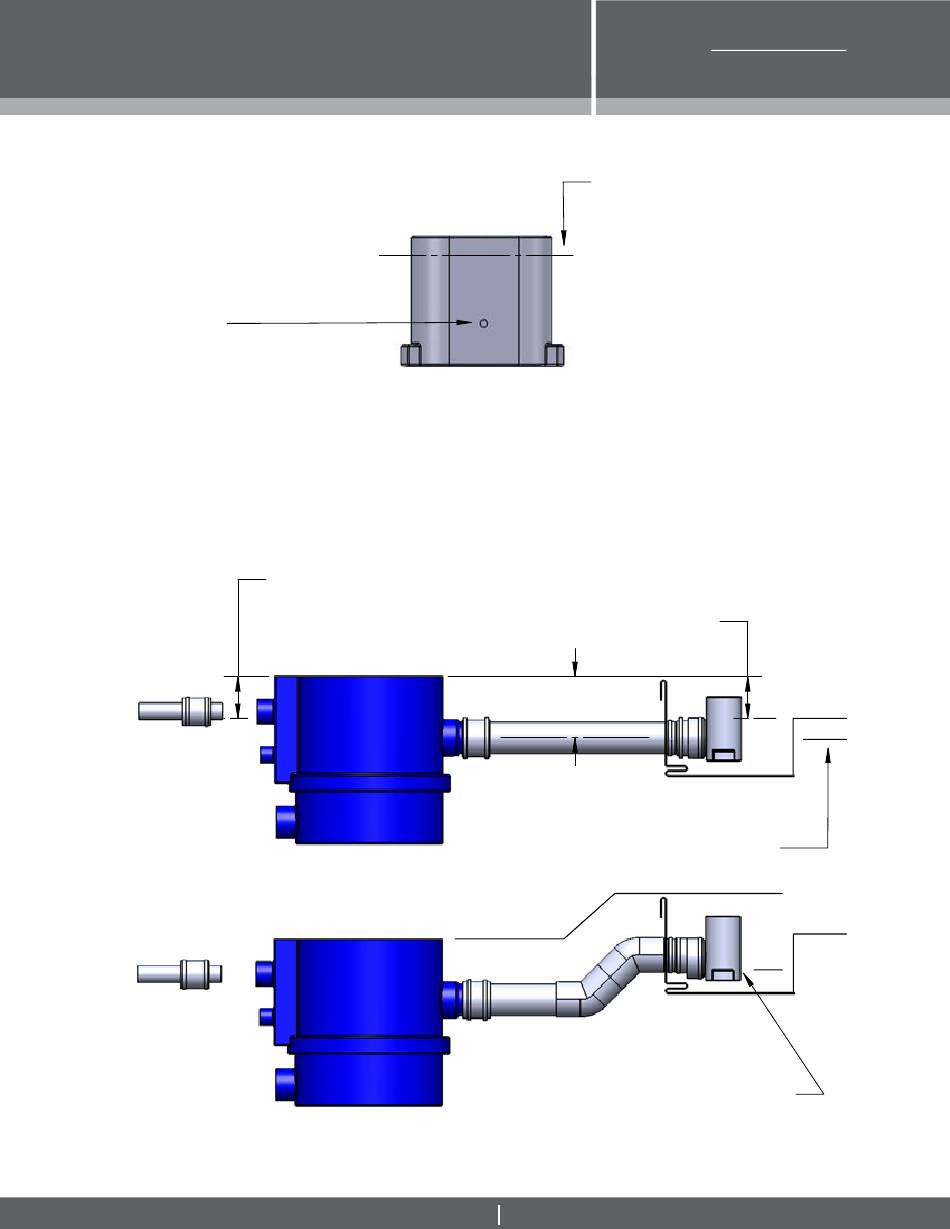

In a level intake installation, the At-Rest water level in the water

feature will be at the bottom of the overflow port.

Overflow

Phone: (800) 906-0604 Web: www.filtrific.com

6.00 Water At-Rest Level & Overflow

Professional Water Feature Equipment

Trim or lower the skimmer surface

as needed to accomodate the

rate of pumping. The skimmer

can also be adjusted by rotating

the eccentric coupling.

6.00 Water At-Rest Level

8.75

Liner is lowered for a Vanishing Pool

(Typically an additional 3". The water

will vanish just below the rock surface.

In this installation, deeper

Vanishing Pools are possible by

placing the Drain Intake level with

the bottom of the intake pipe.

ILTR I F

I C

Table of Contents

Do you have a question about the S44 and is the answer not in the manual?

Page 1 S44 Fixed Skimmer with T40F Filter Tank ILTR I F S44 Skimmer & T40F Filter Tank| VanishingWater ® Vanishing Water Installation Professional Water Feature Equipment Trim or lower the skimmer surface as needed to accomodate the rate of pumping. The skimmer can also be adjusted by rotating the eccentric coupling.
Page 2 S44 Fixed Skimmer with T40F Filter Tank ILTR I F ® Pond Installation Professional Water Feature Equipment S44 Skimmer & T40F Filter Tank| Pond The At-Rest water level in the pond is determined by the overflow level inside the Filter Tank. The highest overflow level is 2.50" down from the top of Filter Tank.
