FH-4WH
Flush mount wheel hangers set
Thank you for purchasing our Flush mounted wheel hangers.
This product is intended for storage of wheels with tires weighing up to 120lbs each.
Please read these instructions from start to finish before beginning.
-We are not liable for damages caused by improper installation or misuse of this product.
-Not recommended for Seismic zones 3 or higher.
-Always check/detect routing of pipes and electrical before penetrating/drilling walls.
-Clear the installation space of vehicles or valuables before beginning.

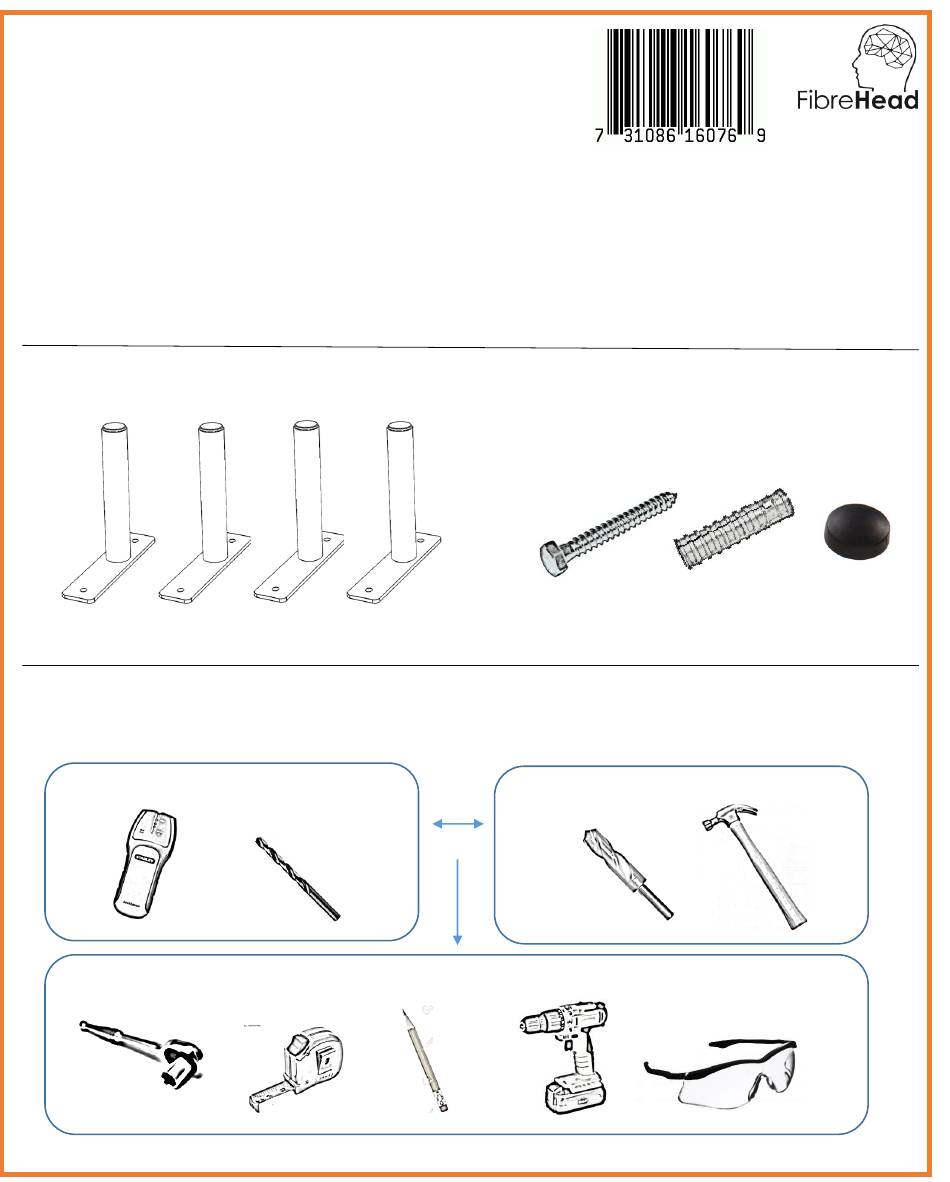

Parts
Included
Drywall with Wood Studs
Stud Finder
1 /2"
Socket + Ratchet
Tools Required
Not Included
3 /16" Drill bit
Common
Pencil
Tape Measure
Hardware
Included
(8x)
Lag Bolts
Masonry
Or
1 /2" Drill bit
Drill
(8x)
(8x)
Lag Shield
Bolt caps
(concrete/brick)
Hammer
Safety Glasses
Advertisement
Table of Contents
Related Manuals for FibreHead FH-4WH
Summary of Contents for FibreHead FH-4WH
- Page 1 FH-4WH Flush mount wheel hangers set Thank you for purchasing our Flush mounted wheel hangers. This product is intended for storage of wheels with tires weighing up to 120lbs each. Please read these instructions from start to finish before beginning.
- Page 2 Wood stud with drywall Install Skip to next section installing into Masonry (Block or Brick) Step 1. Locate and Mark Studs Note: Stud For oversize tires 32” and larger. Pencil Measure Instead of a to match straight line, Height do a zigzag pattern offsetting for additional size.
- Page 3 Masonry Install Installing in Concrete, Block or Brick. Step 1. Locate and Mark Studs (Hole center accuracy required so be precise) Note: For oversize tires Measure 32” and larger. to match Pencil Instead of a Height 32” Apart straight line, do a zigzag pattern Use Hanger offsetting for...
- Page 4 Hanging Wheels Step 4. Remove center cap and Hang wheels Cutaway view shown. Always hang the wheel face closest to the wall X Incorrect X Correct Finished! Great job…Time for a beverage. Do you like our product ? It would mean a lot if you could leave a review at where you purchased it.
