TECHNICAL FILES
SHV302 | T1.16BE.SB.BAD
WALL MOUNTED WASHBASIN MIXER WITH 2 HOLES, EXTERNAL PART
WITHOUT SPOUT
*AVAILABLE IN CHROMED BRASS; BLACK
FINISHING; POLISHED BRASS.

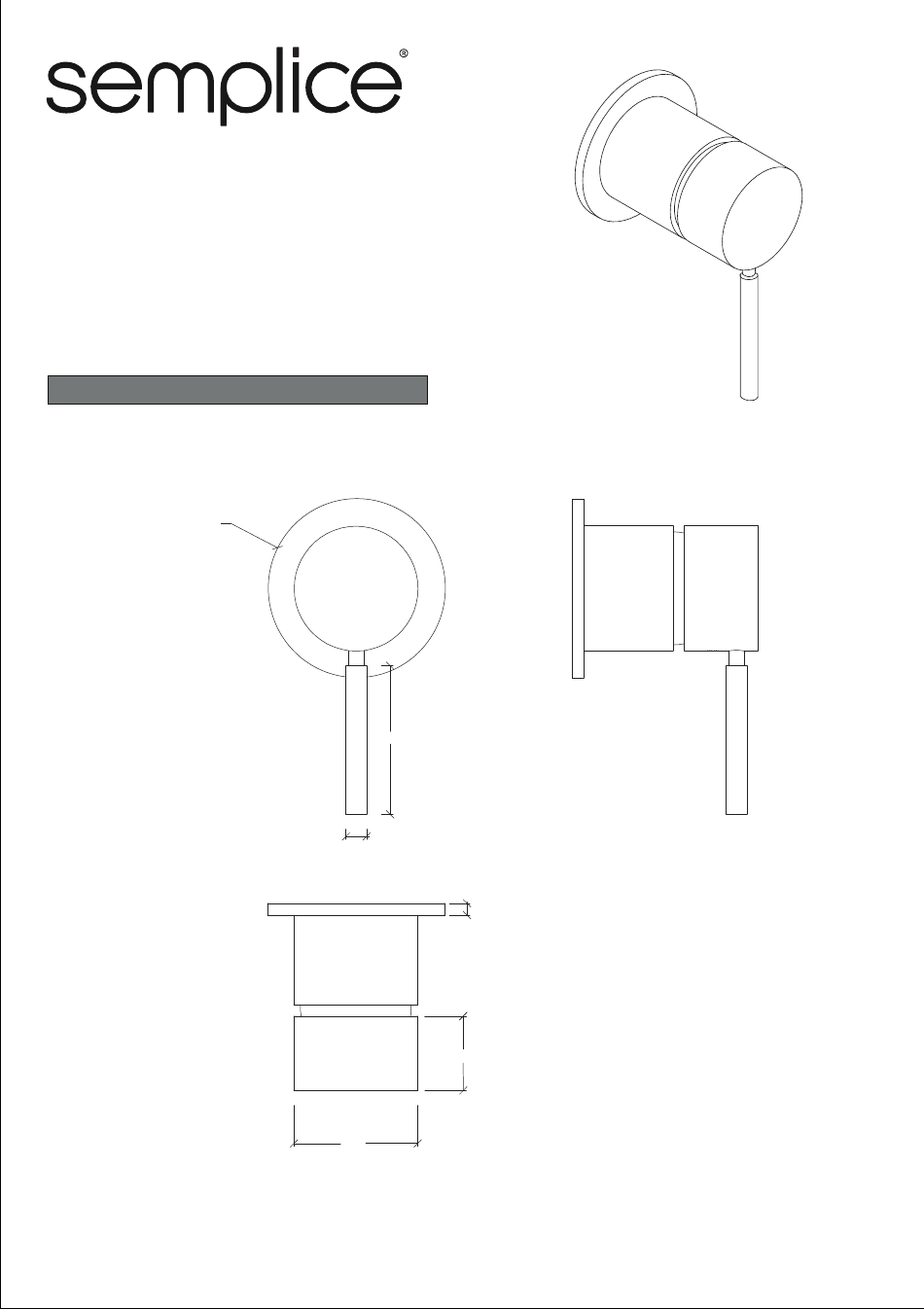

TECHNICAL DRAWING | MEASUREMENTS IN MM
* The dimensions might vary slightly from one finish to the other.
Ø 60
50
Ø7
4
25
Ø 41
SHV302
- 2/8
SHEET
Advertisement
Table of Contents
Related Manuals for SEMPLICE SHV302
Summary of Contents for SEMPLICE SHV302
- Page 1 TECHNICAL FILES SHV302 | T1.16BE.SB.BAD WALL MOUNTED WASHBASIN MIXER WITH 2 HOLES, EXTERNAL PART WITHOUT SPOUT *AVAILABLE IN CHROMED BRASS; BLACK FINISHING; POLISHED BRASS. TECHNICAL DRAWING | MEASUREMENTS IN MM * The dimensions might vary slightly from one finish to the other.
- Page 2 TECHNICAL FILES SHV302 | T1.16BE.SB.BAD WALL MOUNTED WASHBASIN MIXER WITH 2 HOLES, EXTERNAL PART WITHOUT SPOUT COMPONENTS LIST | COMPONENTS DRAWING T1.16BE.SB PLATE PLATE O´RING HOOD CARTRIDGE CONCEALER HANDLE CLICK CLACK WASTE VALVE COMPATIBLE WITH: T1.675 T1.16I - 2/8 SHV302...
- Page 3 MINIMUM PRESSURE 1 BAR TECHNICAL FILES MAXIMUM PRESSURE 10 BAR RECOMMENDED WORKING PRESSURE 2-5 BAR SHV302 | T1.16BE.SB.BAD MAXIMUM WATER TEMPERATURE 70º/176º MAXIMUM WATER TEMPERATURE RECOMMENDED 65º/149º MAXIMUM INLET PRESSURE DIFFERENCE (HOT-COLD) 1.5 BAR ASSEMBLY INSTRUCTIONS 1- After the coating is applied and tile joints are filled in, PICTURE 1 please remove the plastic protection covering the mixer.
- Page 4 TECHNICAL FILES SHV302 | T1.16BE.SB.BAD ASSEMBLY INSTRUCTIONS 1- Place the hood over the tecaform body. PICTURE 2 1- Place the plate on the mixer body, apply silicone on the PICTURE 3 back of the plate and fit it to the coating.
- Page 5 TECHNICAL FILES SHV302 | T1.16BE.SB.BAD ASSEMBLY INSTRUCTIONS 1- Place the umbrak bolt inside the hole under the handle. PICTURE 4 2- Screw it with an allen key. END OF INSTALLATION SHV302...
- Page 6 TECHNICAL FILES SHV302 | T1.16BE.SB.BAD CARTRIDGE REPLACEMENT 1- Unscrew the handle with the help of the allen key. 2- Remove the handle from the top of the cartridge. 3- Unscrew the cartridge concealer from the tecaform locknut, then remove the hood from the tecaform piece.
- Page 7 TECHNICAL FILES SHV302 | T1.16BE.SB.BAD MAINTENANCE AND WARRANTY We recommend regular maintenance of the tap, in order to assure its permanent good function. To clean the tap, please use a smooth cloth with water and neutral soap. Never use products with abrasives substances, such as chloride acid, ammonia, acetone, vinegar, bleach or abrasive sponges.
