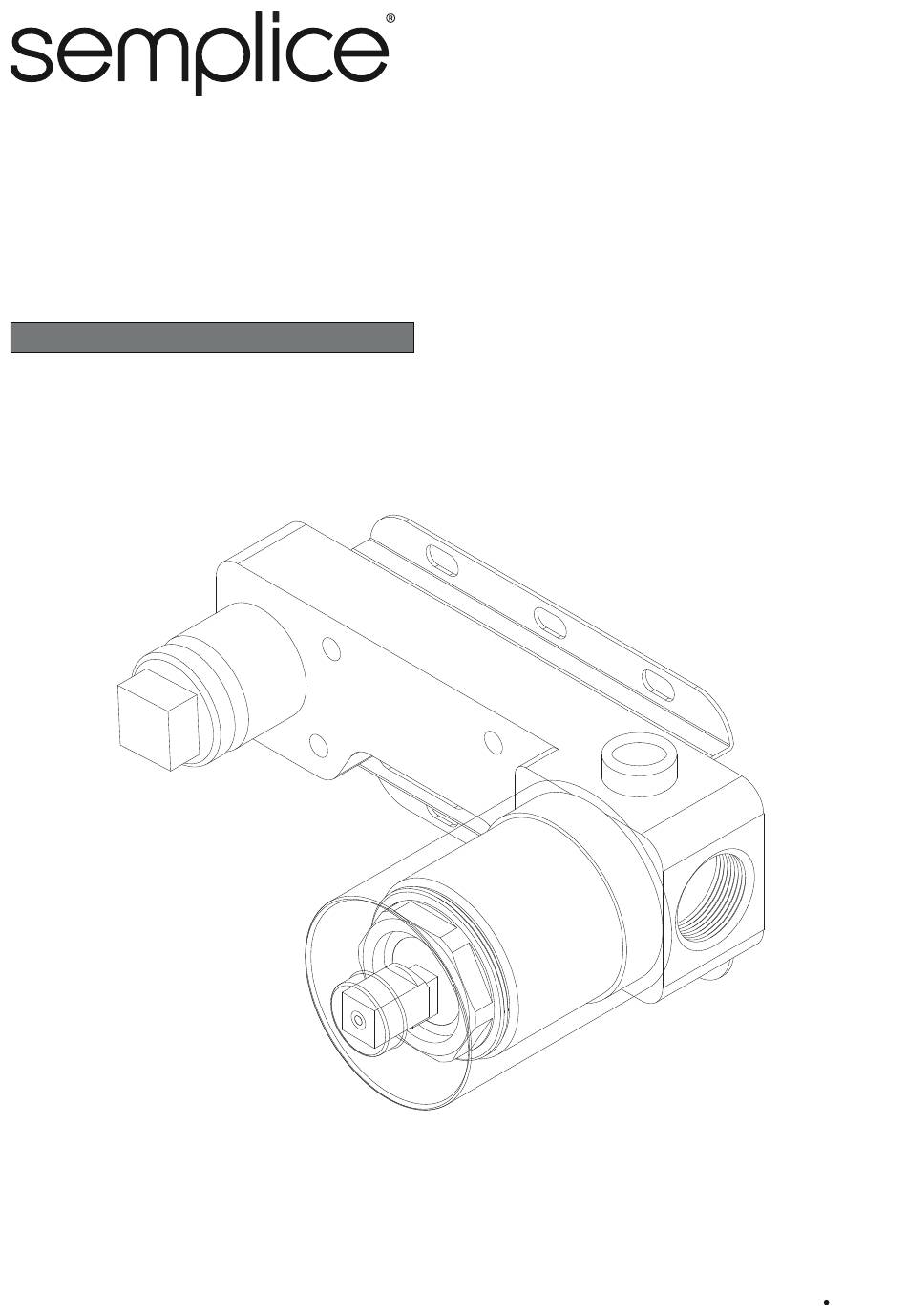

- Page 1 TECHNICAL FILES SHV302X | T1.16I.BAD WALL MOUNTED WASHBASIN MIXER WITH 2 HOLES, INTERNAL PART TECHNICAL DRAWING | MEASUREMENTS IN MM SHV302 | T1.16I.BAD SHEET - 1/8...
- Page 2 TECHNICAL FILES SHV302X | T1.16I.BAD WALL MOUNTED WASHBASIN MIXER WITH 2 HOLES, INTERNAL PART COMPONENTS LIST | COMPONENTS DRAWING T1.16I FIXING PLATE SCREW Water outlet MONOBLOCK HALF INCH CAP P26377 CARTRIDGE P38629 TECAFORM FASTENING NUT Cold water inlet G1/2” PLASTIC PROTECTION Hot water inlet G1/2”...
- Page 3 MINIMUM PRESSURE 1 BAR TECHNICAL FILES MAXIMUM PRESSURE 10 BAR RECOMMENDED WORKING PRESSURE 2-5 BAR SHV302X | T1.16I.BAD MAXIMUM WATER TEMPERATURE 70º/176º MAXIMUM WATER TEMPERATURE RECOMMENDED 65º/149º MAXIMUM INLET PRESSURE DIFFERENCE (HOT-COLD) 1.5 BAR ASSEMBLY INSTRUCTIONS Attention!!! PICTURE 1 Before starting the installation, the pipes must be properly cleaned, to eliminate any dirt that may cause permanent damages to the cartridge.
- Page 4 TECHNICAL FILES SHV302X | T1.16I.BAD ASSEMBLY INSTRUCTIONS Ensure the water supply is turned off before proceeding to PICTURE 2 Picture A the mixer installation. 1- Verify on the picture “A” the maximum and minimum measurements for internal part installation. Minimum 50 mm | Maximum 55 mm Turn o water 2- Please mark the wall where the internal part T1.16I will be placed.
- Page 5 TECHNICAL FILES SHV302X | T1.16I.BAD ASSEMBLY INSTRUCTIONS 1- Confirm on the spirit level (included on the mixer seat) PICTURE 3 that the piece is levelled with the floor. After ensuring the alignment is correct, conclude the tightening of the bolts. 2- Proceed to the water connections, connecting cold and hot water to the corresponding tubes.
- Page 6 TECHNICAL FILES SHV302X | T1.16I.BAD CARTRIDGE REPLACEMENT 1- Unscrew the handle with the help of the allen key. 2- Remove the handle from the top of the cartridge. 3- Unscrew the cartridge concealer from the tecaform locknut, then remove the hood from the tecaform piece.
- Page 7 TECHNICAL FILES SHV302X | T1.16I.BAD MAINTENANCE AND WARRANTY We recommend regular maintenance of the tap, in order to assure its permanent good function. To clean the tap, please use a smooth cloth with water and neutral soap. Never use products with abrasives substances, such as chloride acid, ammonia, acetone, vinegar, bleach or abrasive sponges.
