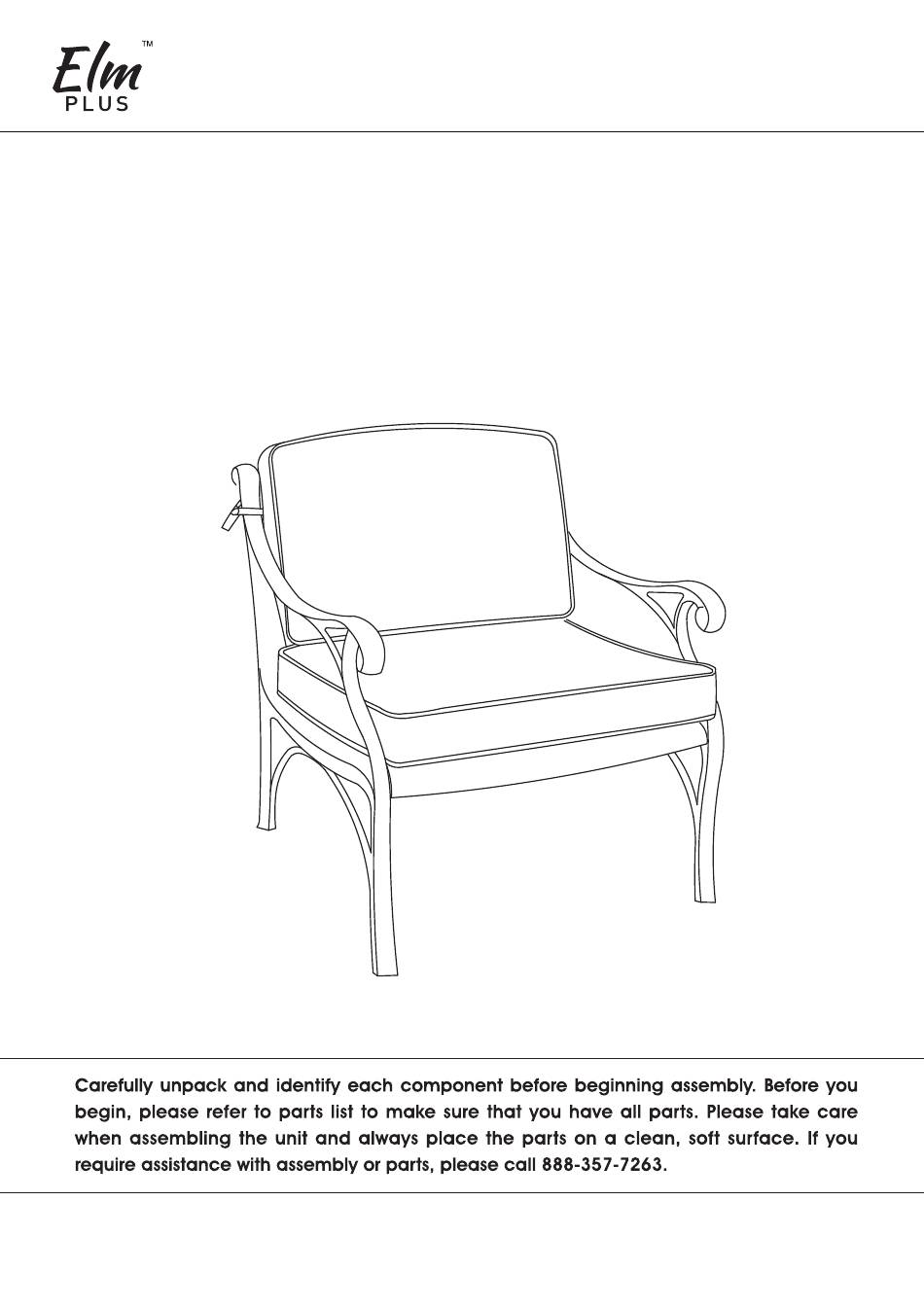

- Page 1 Elm Plus, LLC Assembly Instruction CAST ALUMINIUM PATIO SOFA CHAIR...
- Page 2 PRE-ASSEMBLY PREPARATION WARNING! DO NOT LET CHILDREN PLAY IN OR AROUND THE UNIT DUE TO THE POSSIBLE RISK OF FINGER ENTRAPMENT • Please read through this instruction before beginning assembly. • Two adults assembly is recommended. • Clear out the space for assembly and lay out all parts base on Parts List, extra room will allow you to easily determine if all the pieces are present.
- Page 3 Nut (O) Nut cap (P) Wrench (Q) Wrench (R) Qty: 5 Qty: 5 Qty: 1 Qty: 1 Step 1 Place the Right Arm Panel (B) with its one side face skywards onto a clean, soft surface to avoid any scratches or damages to the product. Attach Seat Panel (D) to Right Arm Panel (B) by using 2 Bolts (L), 2 Washers (M), 2 Spring Washers (N), 2 Nuts (O) with Wrench (R) as shown below.
- Page 4 Step 2 Attach Left Arm Panel (C) to Seat Panel (D) by using 2 Bolts (L), 2 Washers (M), 2 Spring Washers (N), 2 Nuts (O) with Wrench (R) as shown below. DO NOT FULLY TIGHTEN BOLTS. L X 2 M X 2 N X 2 O X 2 Step 3 Attach Backrest Panel (A) to Right Arm Panel (B) and Left Arm Panel (C) by using 4 Bolts (G), 4 Washers (H), 4 Spring Washers (I), 4 Nuts (J) with Wrench (Q) as shown below.
- Page 5 Step 4 Now fully and securely tighten all nuts at all joints. Put the Nut caps (K) and (P) on the Nut as shown below. K X 4 P X 4 Step 5 Adjust the Pre-installed levellers at the bottom of the chair legs until the chair is level with the ground.
- Page 6 Step 6 Put Back Cushion (E) and Seat Cushion (F) on the Chair. Your Chair is ready for use. Inspect it and make sure all parts are adequately connected.
