Single Color Wall Mounted ZigBee Remote Controller
Important: Read All Instructions Prior to Installation
Function introduction
Press and hold down both keys together to search and
pair to ZigBee network or factory reset the controller.
Group 1
Click to turn on. Press and
hold down to increase
light intensity.
Group 2
Group 3
Group 4
11 mm
Battery: CR2450
Before the first use, please remove the protective film
Group 1
Click to turn off. Press and
hold down to decrease
light intensity.
Group 2
Group 3
Group 4
Note: This remote
supports 4 groups for
binding max. 30 lighting
devices.

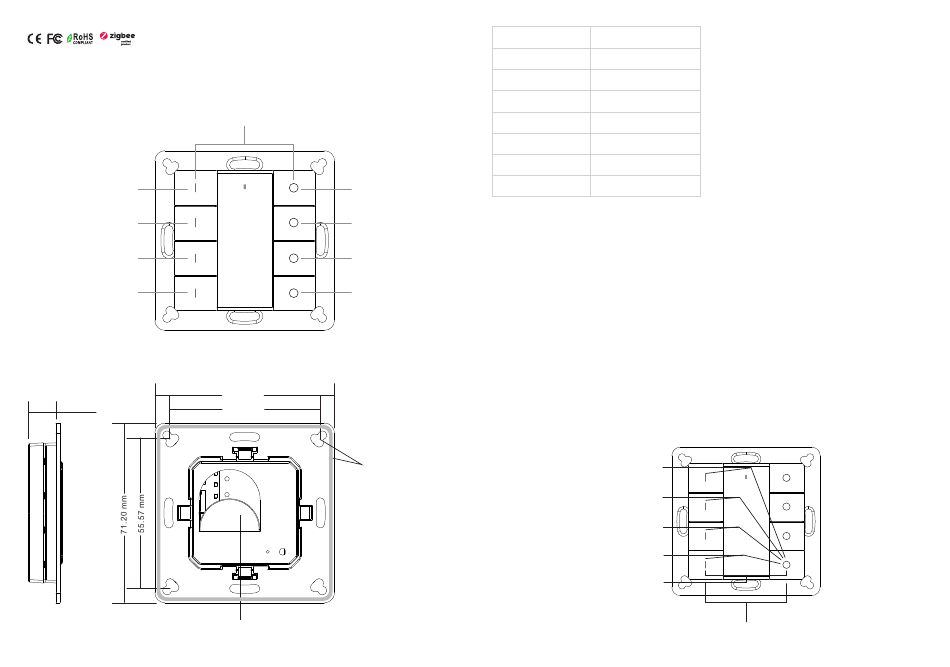

Front side
71.20 mm
55.57 mm
The remote control can be fixed on
the wall with 3M glue or screw.
Back side
Product Data
70100005
Operation Frequency
Transmission Range
(free field)
Power Supply
Operating temperature
Relative humidity
Dimming Range
Dimensions
Protection Type
ZigBee Clusters Supported by This Remote Are As Follows:
Input clusters:
• Basic
• Power Configuration
Output clusters:
• Identify
• On/off
• Group
Safety & Warnings
• This device contains a button lithium battery that shall be stored and disposed properly.
• DO NOT expose the device to moisture.
• Do not ingest battery, Chemical Burn Hazard
• This product contains a coin / button cell battery. If the coin / button cell battery is swallowed,
it can cause severe internal burns in just 2 hours and can lead to death
• Keep new and used batteries away from children.
• If the battery compartment does not close securely, stop using the product and keep it away
from children.
• If you think batteries might have been swallowed or placed inside any part of the body, seek
immediate medical attention
Quick Start (Simplified operation compared to standard operations in the part "Operation")
Touchlink + Add Group 1: Press and hold
down both keys for 3 seconds to start
touchlink and link light device to group 1.
Touchlink + Add Group 2: Press and hold
down both keys for 3 seconds to start
touchlink and link light device to group 2.
Touchlink + Add Group 3: Press and hold
down both keys for 3 seconds to start
touchlink and link light device to group 3.
Touchlink + Add Group 4: Press and hold
down both keys for 3 seconds to start
touchlink and link light device to group 4.
Factory reset: click both buttons 3 times to
reset the remote (the remote should already
be paired to a gateway).
• ZigBee dim remote based on ZigBee 3.0
2.4GHz
• Enables to control both single color lighting devices
30m
• Battery powered remote with low power consumption
• Enables to pair ZigBee lighting devices via touchlink
3VDC (CR2450)
commissioning without coordinator
0-40°C
• Supports find and bind mode to pair with ZigBee lighting
devices
8% to 80%
• Supports 4 groups for binding max. 30 lighting devices
0.1%-100%
• 2.4 GHz global operation
• Transmission range up to 30m
71.2x71.2x13.6mm
• Compatible with universal ZigBee Gateway products
IP20
• Compatible with universal single color ZigBee lighting
devices
• Identify
• Diagnostics
• Level control
• Ota
Network pairing mode: click both buttons 3 times to
set the remote into network pairing mode (the remote
should not belong to any gateway network).
