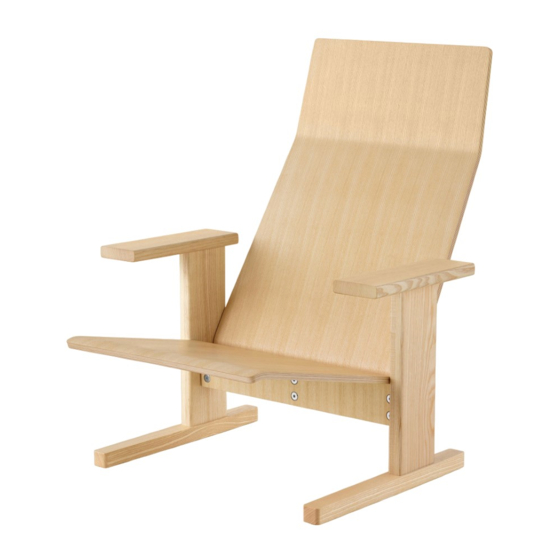

Mattiazzi QUINDICI MC15 Assembly Instructions

Q U I N D I C I L O U N G E
A s s e m b l y I n s t r u c t i o n s
seat 1 ×
1

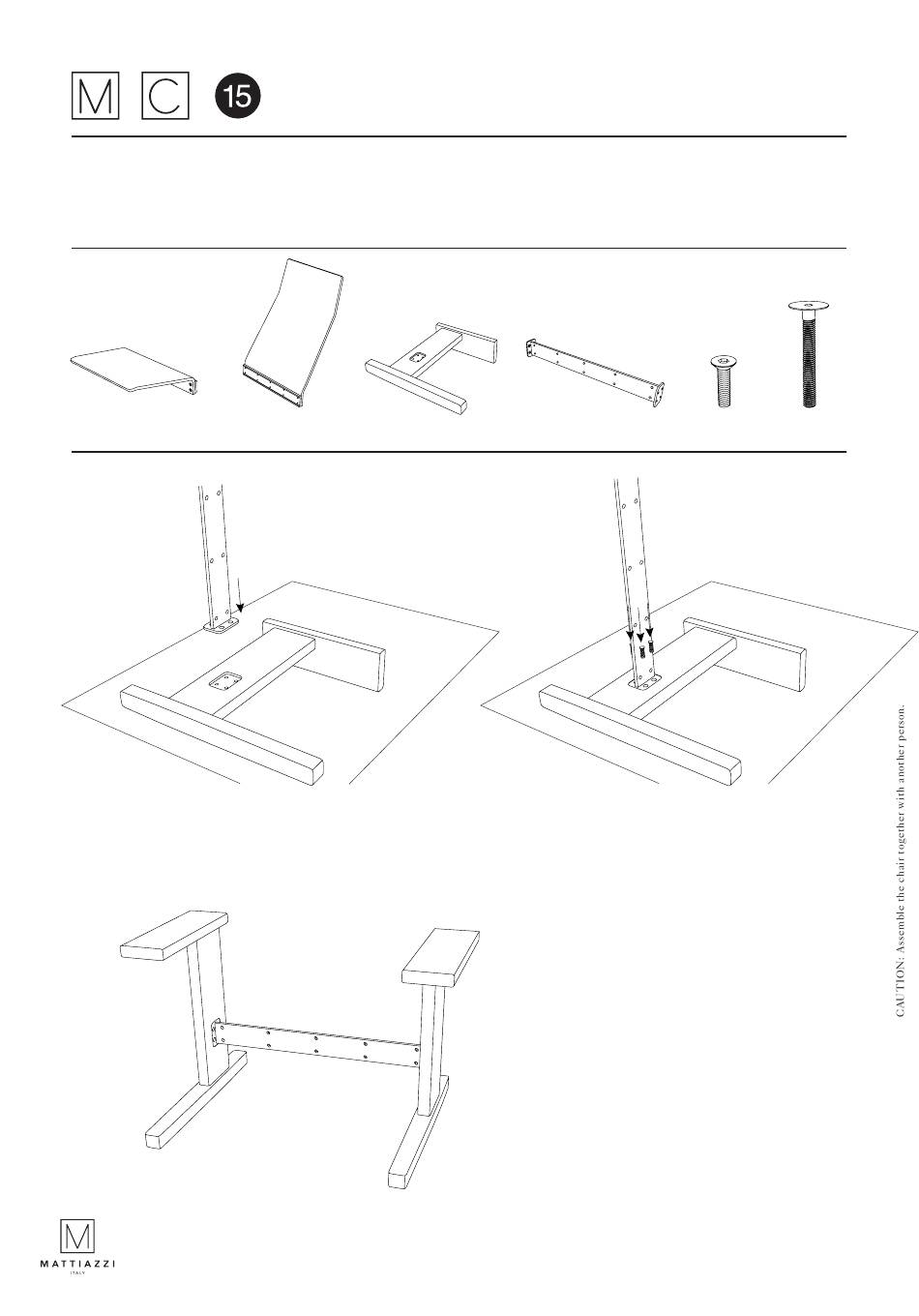

Place one leg on a f lat and clean surface.
Insert the beam as shown on the picture
3
Mattiazzi srl Via Sottorive, 19 /2
backrest 1 × legs 2 ×
33048 S. Giovanni al Natisone (UD) Italy
beam 1 ×
2
Fix the beam to the leg by using 4 screws-A per leg.
Repeat for the second leg in the other side.
Position the legs as shown in the
T + 39 0432 75 74 74 F + 39 0432 75 65 72
screws-A 8 × screws-B 6 ×
