Ultimate Body Press
16 Avenue A,
Leetsdale, PA 15056-1304
FOR YOUR SAFETY: This Dip Station is designed to be mounted to wood frame walls with solid wood studs measuring 16
inches apart on center. This Dip Station should not be mounted to drywall alone. It is the users responsibility to choose a
secure location and properly install the Dip Station using the instructions provided. Tighten all bolts and carefully examine
your installation to ensure that the Dip Station is securely fastened in place before attempting use.
Consult your physician before beginning this or any exercise program. If you experience any discomfort while using this
machine, discontinue use and consult your physician immediately.
PARTS LIST
1. Support Bracket
2. Dip Station Bracket
3. Backrest
4. Backrest Mounting Bracket
5. Armrests
6. Vertical Hand Grips
7. Lag Bolt
8. Large Allen Bolt
9. Small Allen Bolt
10. Large Flat Washer
11. Small Flat Washer
12. Allen Wrench
TOOLS REQUIRED
5/16 in. Drill Bit
Socket Drive Adapter for Power Drill
(Recommended)
17mm Socket Wrench
17mm Open Socket
CUSTOMER SERVICE / SATISFACTION GUARANTEE
support@ultimatebodypress.com
DSVKR – WALL MOUNT DIP STATION / VERTICAL KNEE RAISE STATION
Email:
USA Tech Support:
877-734-7227
(M-F 9am-5pm EST)
Advertisement
Table of Contents
Related Manuals for ULTIMATE BODY PRESS DSVKR
Summary of Contents for ULTIMATE BODY PRESS DSVKR

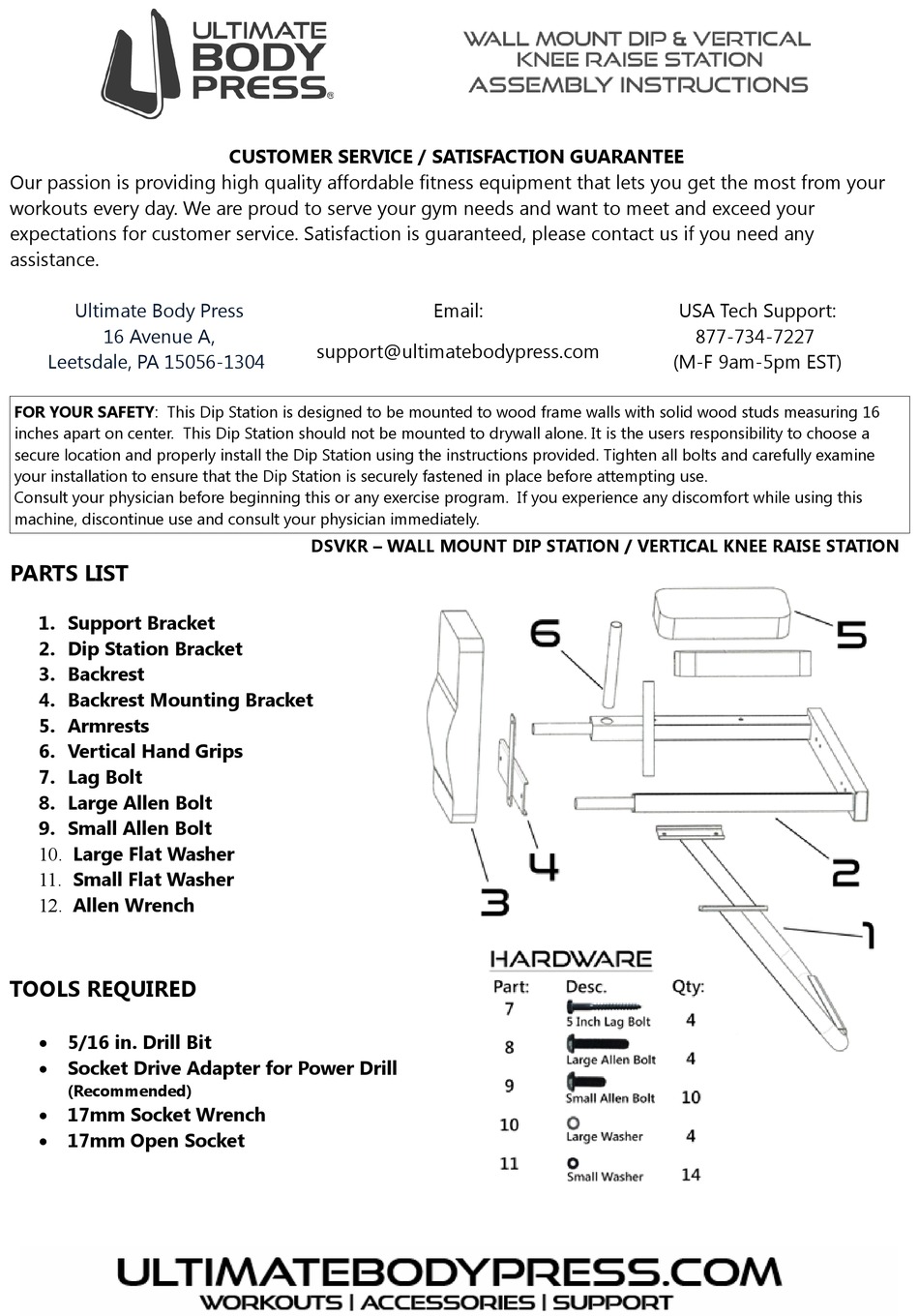

- Page 1 Consult your physician before beginning this or any exercise program. If you experience any discomfort while using this machine, discontinue use and consult your physician immediately. DSVKR – WALL MOUNT DIP STATION / VERTICAL KNEE RAISE STATION PARTS LIST 1. Support Bracket 2.
- Page 2 Constructing the Main Assembly Attach the Support Bracket (Part #1) to the Dip Station Bracket (Part #2) using 4 Small Allen Bolts and 4 Small Washers. These two pieces together form the Dip Station Assembly. Attaching the Dip Station Assembly to Wall 1.
- Page 3 Attaching Main Assembly to Wall (cont.) 9. You will now use the assembly as a template to locate and mark the remaining three pilot holes. a. Rotate the assembly to a horizontal position. b. Place a level on top of the back plate. c.
