Related Manuals for Air Packaging Machine H035
Summary of Contents for Air Packaging Machine H035

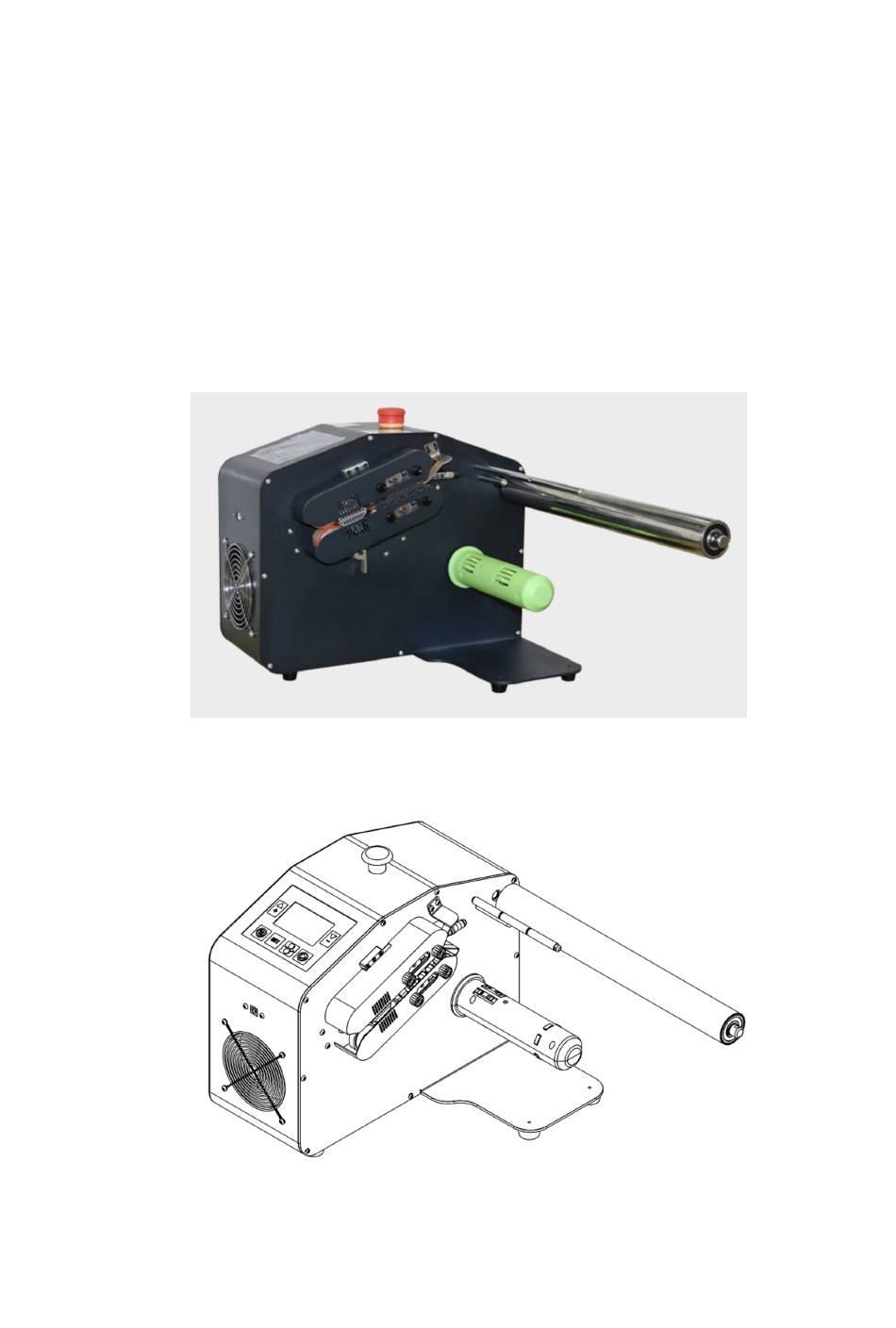

- Page 1 Air Cushion Machine User Model #H035 All-in-one On Demand Multi-function, Fast Speed: 28m/min www.AirPackagingMachine.com / 1 8...
- Page 2 Suitable Films 适⽤用卷膜类型 Our machine can produce below different films: www.AirPackagingMachine.com / 2 8...
- Page 3 H035 * 1 set Product Introduction 功能介绍 H035 is a new high-end portable air cushion machine. A multi-purpose all-in-one on- demand machine with beautiful appearance that can be inflated for air pillow / air bubble / air column / air beehive / air wave / air bubble bag …...
- Page 4 L400*W165*H310mm Package carton 充⽓气机包装尺⼨寸 L490*W390*H430mm Net weight 净重 16.5KG Gross weight ⽑毛重 18KG Technical Parameter 技术参数 Model 产品型号 H035 Input voltage 输⼊入电压 AC 220V or 110V 50Hz/60Hz Frequency 额定频率 Power 额定功率 450W Heat seal temperature 热封温度 90-150 level adjustable (90-150度可调节) Power connection mode 电源连接⽅方式...
- Page 5 www.AirPackagingMachine.com / 5 8...
- Page 6 Installation Operation Method 安装操作⽅方法 1, Install material holder, the material pole 1, the material pole 2 and material axle at the positions shown in Photo 1(auxiliary tool: inner hexagon). 将放料料轴、导料料杆1、导料料杆2以及导料料轴分别安装于图1所示位置（辅助⼯工具：六⻆角） 2, Connect the power cord to turn on the power supply, install the film on the material holder, pull the film through the feeding head and into the middle of the belt, press the button of IN-Material (Green button), wait for the film to be pulled out of the machine and press the START button to start inflating the film.
- Page 7 ERR 04: Motor over-current, this code indicates that the motor has been overloaded, or the transmission part is stuck, if all the above are normal, the motor should be replaced. 电机过流，出现此代码说明电机已经超负荷使⽤用，或者传动部分卡死，如上述都正常就要更更 换电机。 ERR 05: No material for continuing. 物料料缺失，没有检查到材料料 ERR 06： Fan over-current, Fan Failure.
- Page 8 4, The loading material of this air cushion machine should not exceed 7KG. Heavy pressure and support are prohibited when loading material. 此款充⽓气机装载材料料勿超过7KG，装载材料料时禁⽌止重压，禁⽌止扶靠。 5, When the material is driven by the machine, it will generate static electricity. The material itself also has static electricity. Operators can not wear slippers or no shoes.
