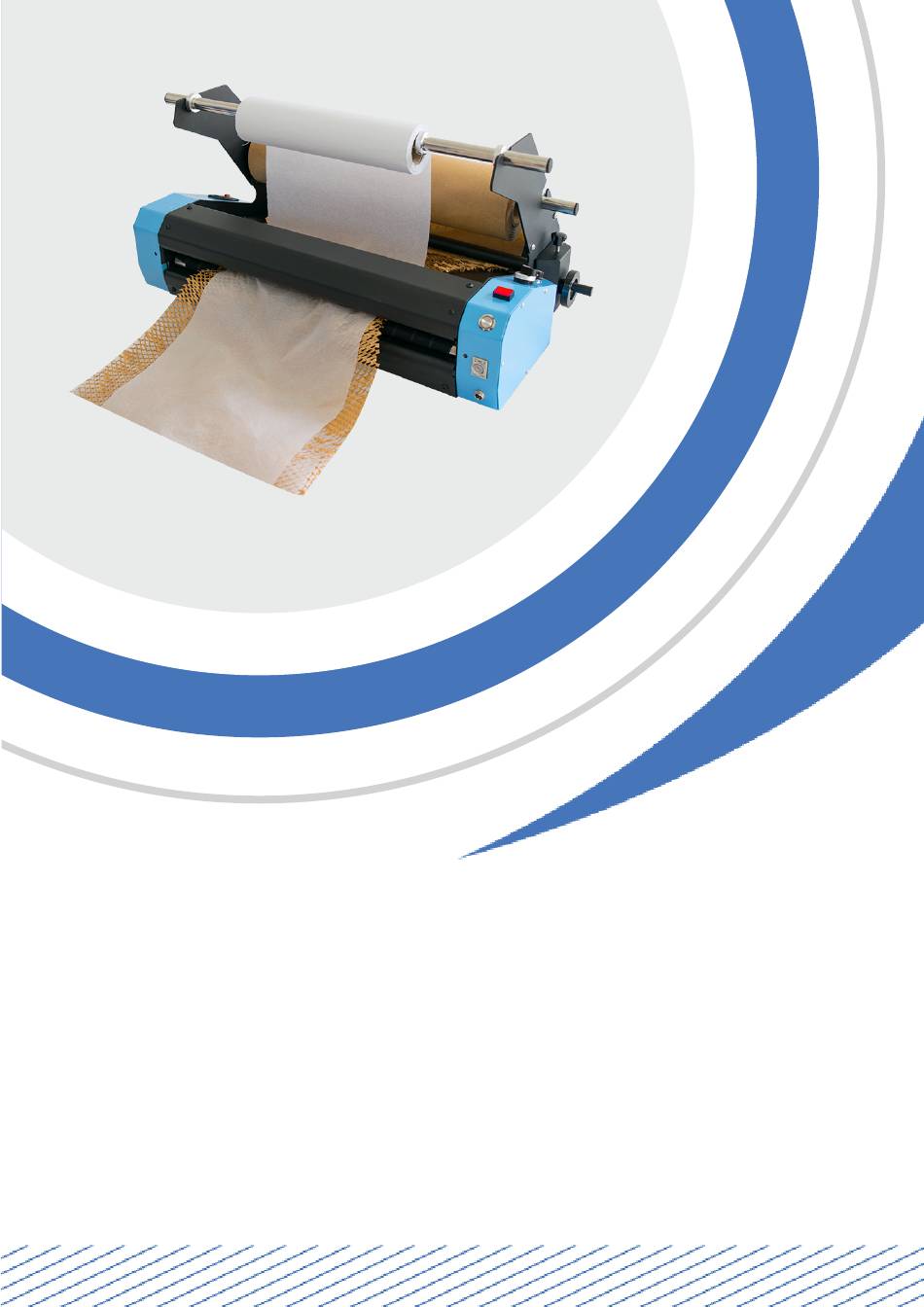

- Page 1 Instructions of electric honeycomb paper machine MODEL：HP50-D2 VERSION：202106 www.AirPackagingMachine.com...
- Page 2 CONTENTS SAFETY PRECAUTIONS BASIC PARAMETERS OF EQUIPMENT STRUCTURE INTRODUCTIONS KEY OPERATION INSTRUCTIONS INSTALL INSTRUCTIONS INSTRUCTIONS FOR USE www.AirPackagingMachine.com...
- Page 3 SAFETY PRECAUTIONS Please use 100-230V power supply. Avoid placing in direct sunlight and outdoors. Please cut off the power quickly when break down. Please disconnect the power supply and remove the plug , when cleaning or repairing equipment. Do not disassemble or repair equipment without the knowledge of engineer. BASIC PARAMETERS OF EQUIPMENT Voltage Power...
- Page 4 STRUCTURE INTRODUCTIONS Resistance adjustment handle Paper enter handle Speed control knob Paper exit place Automatic mode and timing mode Pedal Start-stop switch Timer mode loop button Timer White liner paper roller Honeycomb paper roller Power supply Resistance adjustment handle www.AirPackagingMachine.com...
- Page 5 KEY OPERATION INSTRUCTIONS SPEED CONTROL KNOB Adjust the paper output speed. AUTOMATIC MODE AND TIMING MODE Automatic mode: continuous output mode. Press the square button to start continuous output, and then press again to pause. Timing mode: the paper will output during the setting time. START-STOP SWITCH The switch which is control start and stop of automatic mode and timing mode.
- Page 6 INSTALL INSTRUCTIONS Take out the whole machine and install the support plate (pay attention to distinguish the left and right directions). 操作说明 INSTRUCTIONS FOR USE As shown in Figure 1, insert the paper roller (note the direction of the honeycomb paper). As shown in Figure 2, put on the paper (pay attention to the direction of the honeycomb paper, honeycomb paper need put in front of white lining paper).
- Page 7 Open the paper enter handle Turn the paper enter handle counterclockwise to make the honeycomb paper pass through the device. Pull the handle outwards, and fold the handle inward. www.AirPackagingMachine.com...
- Page 8 Press the start-stop switch, select automatic mode, fine-tune the speed adjustment knob to make the honeycomb paper come out of the paper outlet, and then pull out a section of the white liner paper and place it on the honeycomb paper so that the white liner paper comes out of the paper outlet channel.
