Item # 48085 - 4 Section Coat Locker
Qty. 1
Qty. 1
Qty. 1
Qty. 2
Qty. 1
Qty. 3
You will need 1 Allen wrench (provided), and 1 Phillips head screwdriver to assemble
Assembly Instructions

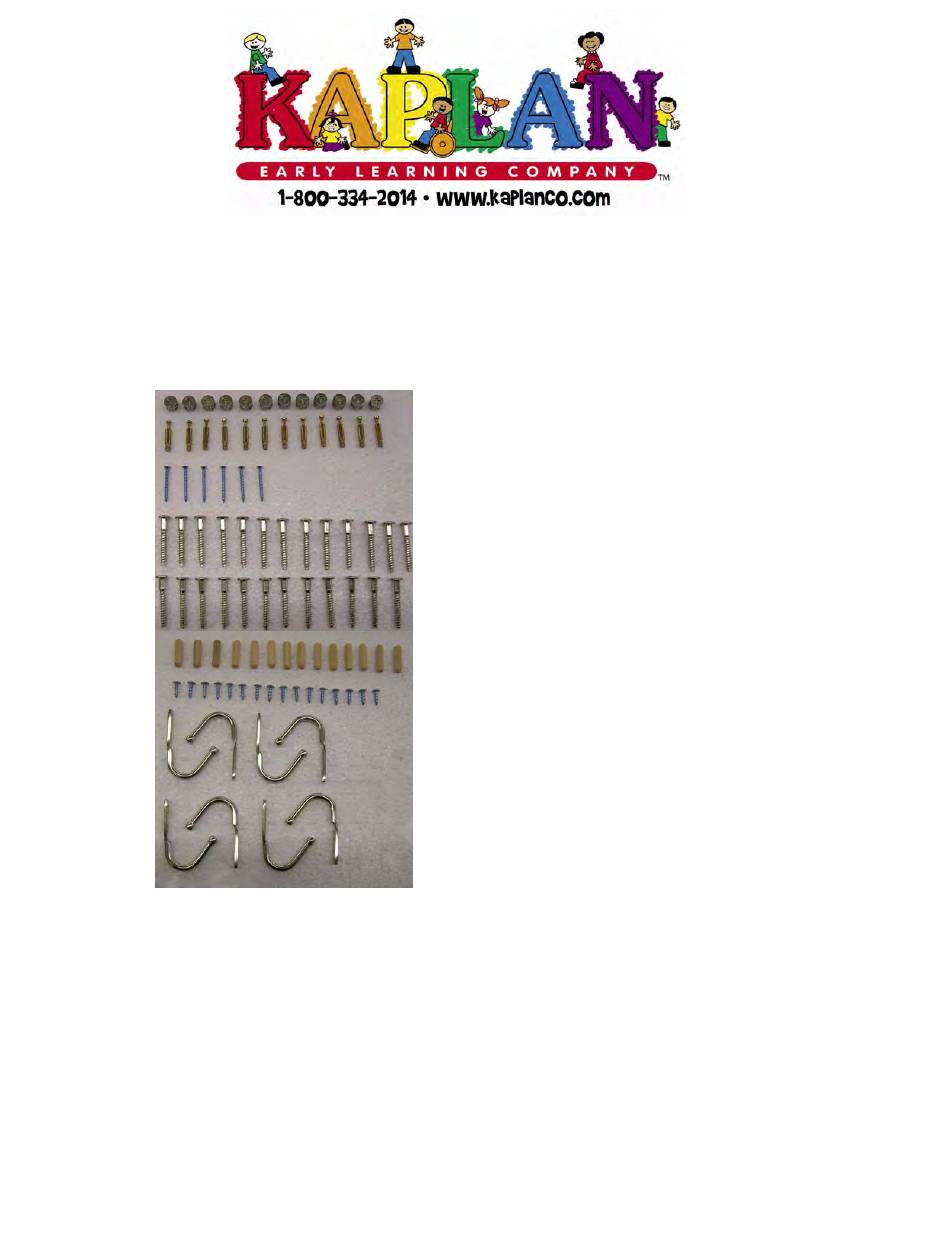

Hardware Components List
Parts List
left side
top
top notched shelf
toe kicks
bottom back panel
short dividers
Qty. 12
cam locks
Qty. 12
pin connection bolt
Qty. 6
1.5" wood screw
Qty. 25
7 x 50 hex head screw
Qty. 14
wood dowel
Qty. 16
3/4" wood screw
Qty. 8
single hook
Qty.
1
Qty.
1
Qty.
1
Qty.
4
Qty.
3
right side
bottom
bottom shelf
top back panels
long dividers
Advertisement
Table of Contents
Related Manuals for KAPLAN 48085
Summary of Contents for KAPLAN 48085
- Page 1 Item # 48085 - 4 Section Coat Locker Assembly Instructions Hardware Components List Qty. 12 cam locks Qty. 12 pin connection bolt Qty. 6 1.5” wood screw Qty. 25 7 x 50 hex head screw Qty. 14 wood dowel Qty. 16 3/4”...
- Page 2 Step 1 Attach short bottom dividers to the bottom. Place the bottom with the un nished side facing you, and the end with the groove for the back panel towards the table. Step 2 Using 6 hex head screws, attach the short dividers, with the round edge facing up.
- Page 3 Step 5 Place bottom shelf on top of the dividers, and line up dowels with the corresponding dowel holes on the bottom of the shelf. Push shelf down until ush on dividers. Using 3 hex head screws, attach the shelf to the dividers with the allen wrench.
- Page 4 Step 9 Slide the 3 long dividers onto the pin connection bolts. Make sure the groove for the back panels is towards the back of the unit. Step 10 Using 6 cam locks, secure the dividers to the bottom shelf, using two cam locks per divider.
- Page 5 Step 13 Install 6 pin connection bolts into the plastic inserts on the underside of the top shelf. Tighten bolts clockwise until snug. *Do not over tighten Step 14 Place top shelf on top of the dividers, and line up pin connection bolts with pre-drilled holes on top edge of dividers.
- Page 6 Step 17 Slide the remaining 2 back panels into the back panel grooves on both ends on the unit. Step 18 Insert wood dowels into the middle pre-drilled holes on the ends of each of the shelves. 4 on the right side, and 4 on the left side.
- Page 7 Step 21 Lie the unit on it’s back, and install the 4 remaining 1.5” wood screws into the toe kicks, as in Step 3. Stand unit up. *You may need some assistance lifting this unit, and practice proper lifting techniques. Congratulations! You have now completed assembly on your new 4 Section Coat Locker.
