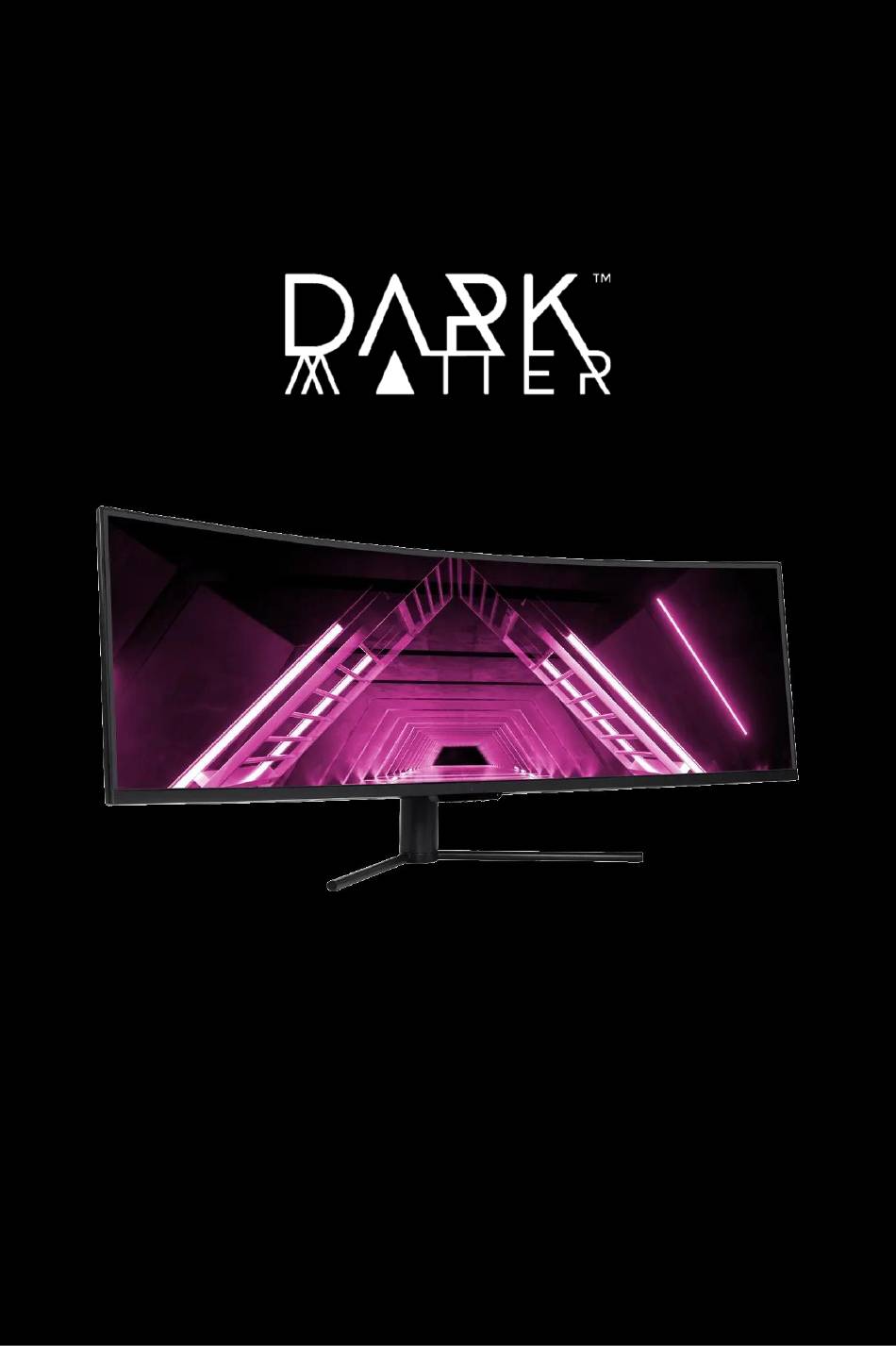

49" Curved Gaming Monitor
P/N 43305
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 43305 and is the answer not in the manual?

Questions and answers

Related Manuals for Dark Matter 43305

Summary of Contents for Dark Matter 43305

  • Page 1 49" Curved Gaming Monitor P/N 43305 User's Manual...

  • Page 2: Safety Warnings And Guidelines

    SAFETY WARNINGS AND GUIDELINES Please read this entire manual before using this device, paying extra attention to these safety warnings and guidelines. Please keep this manual in a safe place for future reference. This device is intended for indoor use only. •...
  • Page 3 Before plugging the unit into a power outlet, ensure that the • outlet provides the same type and level of power required by the device. This device uses a grounded power cord and requires a ground • connection for safe operation. Ensure that the power source has a proper ground connection.

  • Page 4: Customer Service

    FEATURES 49" display with 1800R curvature • 2x HDMI® 2.0, and 2x DisplayPort® 1.4 video inputs • 5120x1440p @120Hz maximum video resolution • Quantum Dot Display • 32:9 aspect ratio • 4ms response time • 3000:1 contrast ratio • 400 cd/m brightness •...

  • Page 5: Package Contents

    PACKAGE CONTENTS Please take an inventory of the package contents to ensure you have all the items listed below. If anything is missing or damaged, please contact Monoprice™ Customer Service for a replacement. 1x 49" Curved Gaming Monitor 1x DisplayPort® Cable 1x Stand Stem 1x Stand Base 4x M5x12 Stand Screws...
  • Page 6 DOWN: If the OSD menu is displayed, press the DOWN button to move the highlight down. If editing a value, press the DOWN button to decrease the value. UP: If the OSD menu is not displayed, press the UP button to turn the FPS crosshairs in the center of the screen on or off and to cycle through the four different crosshair values.
  • Page 7 Connections AUDIO: 3.5mm stereo audio jack for connecting headphones or a pair of powered speakers. DisplayPort 1: DisplayPort® 1.4 video input. DisplayPort 2: DisplayPort 1.4 video input. 10. HDMI 1: HDMI® 2.0 video input. 11. HDMI 2: HDMI 2.0 video input. 12.

  • Page 8: Installing The Stand

    INSTALLING THE STAND Perform the following steps to assemble the stand and attach it to the monitor. Open the box and remove the monitor in its foam packaging, then place it on a flat surface. Remove the Stand Base, Stand Stem, and the M5x12 Stand Screws from the packaging.

  • Page 9: Removing The Stand

    Place the monitor in its foam packaging on the top end, then remove the bottom section of the foam packaging. Align the bracket on the stand assembly with the opening on the back of the monitor, then carefully insert the bracket into the opening until it clicks into place.
  • Page 10 Place the top piece of foam packaging on the top of the monitor, then invert the monitor so that it is standing upside down in the foam packaging, as shown in the image below. Locate the button shown in the image below, then press it to release the stand assembly.

  • Page 11: Using A Wall Or Desk Mount

    USING A WALL OR DESK MOUNT Note that this monitor only includes screws for mounting it to a wall or desk mount. No mount or other mounting accessories are included. If you REMOVING THE STAND installed the stand, first perform the steps in the section above.
  • Page 12 Gamma 1.8 Gamma 2.0 Sets the level of gamma Gamma Gamma 2.2 correction Gamma 2.4 Gamma 2.6 Standard, Picture Photo, Movie, Selects one of the preset Color Setting Game, FPS, picture modes Setting Color Warm, Cool, Sets the color Temperature User temperature Low Blue...
  • Page 13 Automatically adjusts the Dynamic Picture brightness level based on Luminous On, Off Quality what is being displayed on Control the screen Wide Screen, Sets the screen aspect Aspect Ratio 4:3, 1:1, Auto ratio Display Sets the EDID® resolution HDMIEDED HDMI 4K, data that is sent to video SwitchMode HDMI 5K...
  • Page 14 Selects the input for the DP 1, DP 2, Sub Win3 third window in a 4 HDMI 1, HDMI Input window Picture-by- Picture display mode Selects the input for the Multi- DP 1, DP 2, Sub Win4 fourth window in a 4 Window HDMI 1, HDMI Input...
  • Page 15 Normal, 90, Rotates the orientation of Rotation 180, 270 the OSD menu Selects the DisplayPort DP 1.1, DP 1.2, DP Version version to use for solving DP 1.4 handshaking issues Adaptive- Turns Adaptive-Sync On, Off Sync support on or off On, Off, Turns HDR on or off Auto-Detect...

  • Page 16: Troubleshooting

    TROUBLESHOOTING Q1: The screen is blank. Ensure that power is turned on. Try plugging a different device, such as a lamp, into the AC power outlet to ensure that it is live. Check the contrast/brightness settings. If the LED INDICATOR is flashing blue, the monitor is not receiving a video signal.
  • Page 17 Q5: The screen is rolling, scrolling, or moving. A5: Ensure that the source refresh frequency is within the range of the monitor. Check the video cable connections. Try swapping the video cable with a known good one. Q6: The LED INDICATOR is off. A6: Ensure that power is turned on.

  • Page 18: Technical Support

    Q10: The LED INDICATOR is on or flashing, but there is no image on the screen. A10: Check the video cable connections. Try swapping the video cable with a known good one. Inspect the condition of the video ports on the monitor and video source for physical damage.

  • Page 19: Specifications

    SPECIFICATIONS Model 43305 Display Size 49" Maximum Resolution 5120x1440 Aspect Ratio 32:9 Refresh Rate 120Hz Video Inputs 2x DisplayPort® 1.4, 2x HDMI® 2.0 Panel Type VA with Quantum LCD technology Panel Model CSOT® SG4903M01-1 Curvature 1800R Active Display Area (H/V) 1193.472 x 335.664 mm...

  • Page 20: Regulatory Compliance

    Standby Power Consumption ≤0.5 watts Stand Tilt Range ‑5°~ +15° Stand Height Adjustment None Stand Swivel Range None Dimensions (with stand) 47.2" x 18.5" x 9.7" (1199 x 471 x 246 mm) Dimensions (without stand) 47.2" x 14.8" x 6.3" (1199 x 376 x 160 mm) Weight (with stand) 32.6 lbs.
  • Page 21 Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. Monoprice™, Dark Matter™, the Dark Matter logo, and all Monoprice logos are trademarks of Monoprice Inc. HDMI®, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
