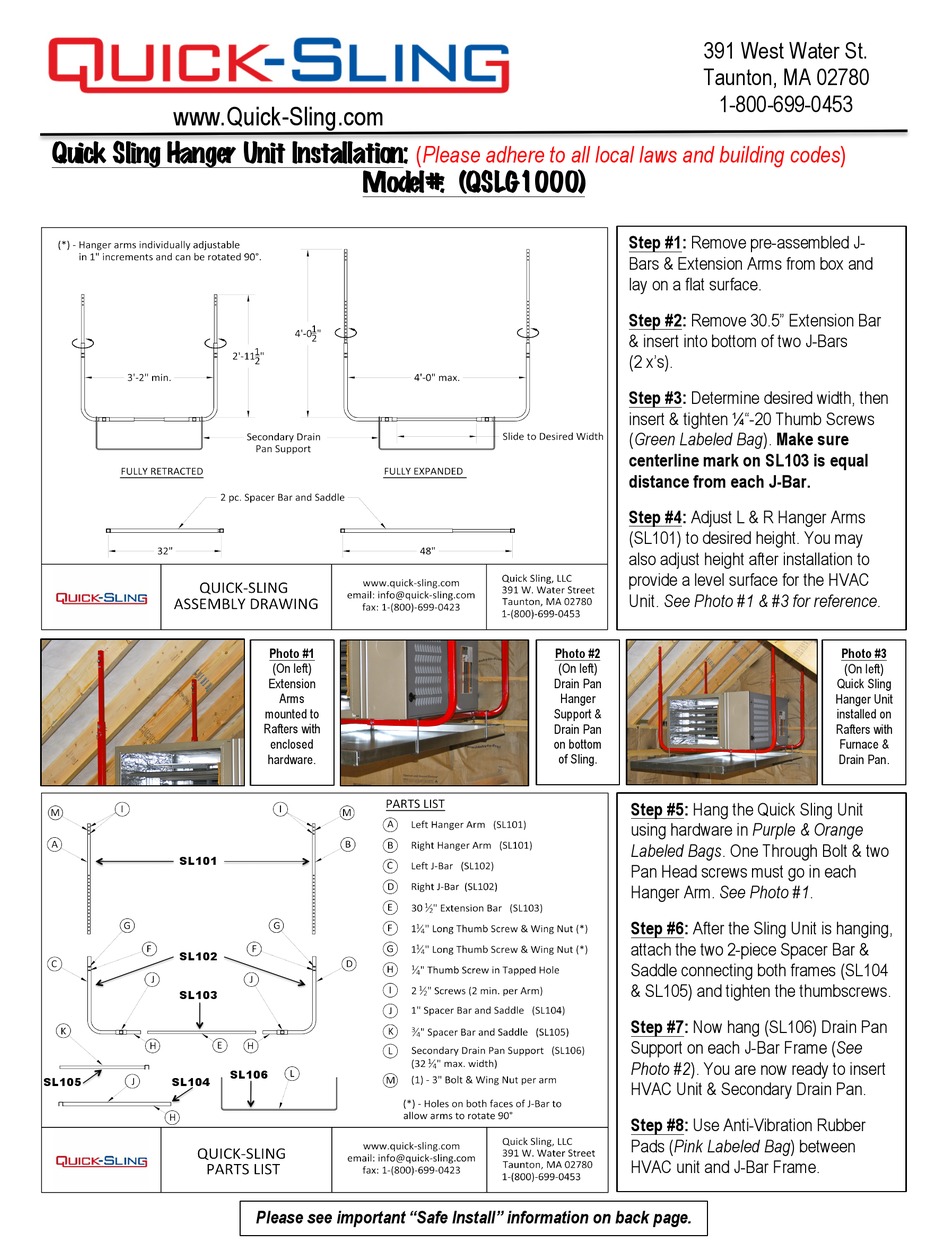

Quick-Sling QSLG1000 Installation

www.Quick-Sling.com

Quick Sling Hanger Unit Installation:

SL101
SL102
SL103
SL105 SL104
!
Model#: (QSLG1000)
Photo #1
(On left)
Extension
Arms
mounted to
Rafters with
enclosed
hardware.
SL106
Please see important "Safe Install" information on back page.
(Please adhere to all local laws and building codes)
Photo #2
(On left)
Drain Pan
Hanger
Support &
Drain Pan
on bottom
of Sling.
391 West Water St.
Taunton, MA 02780
1-800-699-0453
Step #1: Remove pre-assembled J-
Bars & Extension Arms from box and
lay on a flat surface.
Step #2: Remove 30.5" Extension Bar
& insert into bottom of two J-Bars
(2 x's).
Step #3: Determine desired width, then
insert & tighten ¼"-20 Thumb Screws
(Green Labeled Bag). Make sure
centerline mark on SL103 is equal
distance from each J-Bar.
Step #4: Adjust L & R Hanger Arms
(SL101) to desired height. You may
also adjust height after installation to
provide a level surface for the HVAC
Unit. See Photo #1 & #3 for reference.
Step #5: Hang the Quick Sling Unit
using hardware in Purple & Orange
Labeled Bags. One Through Bolt & two
Pan Head screws must go in each
Hanger Arm. See Photo #1.
Step #6: After the Sling Unit is hanging,
attach the two 2-piece Spacer Bar &
Saddle connecting both frames (SL104
& SL105) and tighten the thumbscrews.
Step #7: Now hang (SL106) Drain Pan
Support on each J-Bar Frame (See
Photo #2). You are now ready to insert
HVAC Unit & Secondary Drain Pan.
Step #8: Use Anti-Vibration Rubber
Pads (Pink Labeled Bag) between
HVAC unit and J-Bar Frame.
Photo #3
(On left)
Quick Sling
Hanger Unit
installed on
Rafters with
Furnace &
Drain Pan.
