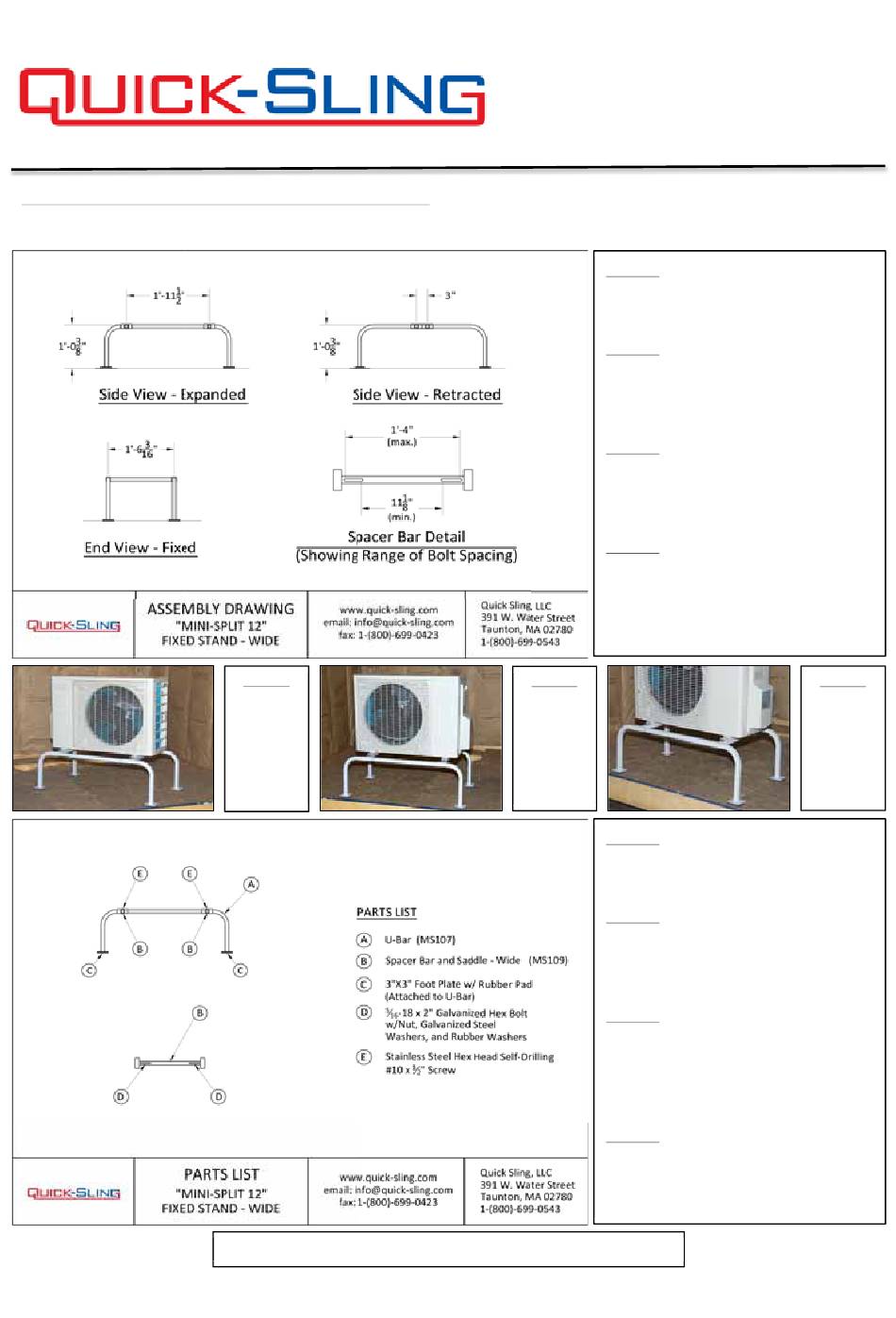

Quick-Sling QSMS1201 Installation

www.Quick-Sling.com
Mini Split 12" Stand - Wide Installation:
g
Model#: (QSMS1201)
Photo #1
(On left)
Mini-Split
12" Stand
(Wide) with
Unit. Will fit
on 24"
wide pad.
Please see important "Safe Install" information on back page.
(Please adhere to all local laws and building codes)
Step #1: Remove U-Bar Frames (2 -
Parts of MS107) from box and stand in
place.
Step #2: Remove Spacer Bar & Saddle
(2 - Parts of MS109) and attach on top
of U-Bar Frames to connect the 2
frames together.
Step #3: Measure the distance between
foot slots on your Mini-Split Condensing
Unit and position Spacer Bars & Saddle
the same distance apart.
Step #4: Place Mini-Split Stand in place
for installation. It is recommended to
use a plastic, cement or other base to
stabilize your overall installation. This
model will fit on a 24" wide base.
Photo #2
(On left)
Mini-Split
12" Stand
(side view)
showing
connection
to stand.
Step #5: Place Mini-Split Condensing
Unit on Stand and line-up foot slots with
openings in the Spacer Bar & Saddle.
Step #6: Secure Mini-Split Condensing
Unit to Stand with galvanized hardware
and Anti-Vibration Washers included in
box (Pink & Yellow Labeled Bags).
Step #7: Once Mini-Split Condensing
Unit is secured with enclosed hardware,
secure Spacer Bars & Saddle to the U-
Bar Frame with stainless steel self-
drilling Tech Screws (Tan Labeled Bag).
Step #8: Your Mini-Split Condensing
Unit is now ready for connection to
plumbing and electrical installation
leads.
391 West Water St.
Taunton, MA 02780
1-800-699-0453
Photo #3
(On left)
Mini-Split
12" Stand.
Close-up of
Spacer Bar
w Saddle
attachment.
