XTREME SERIES BAR
10" STREET LEGAL DRIVING LIGHT BAR
MOUNTING INSTALL INSTRUCTION
SKU# 61022
INSTALL MANUAL
WHAT'S INCLUDED:
2 X Light Bars
§
Side and Bottom Mount Brackets & Hardware
§
1 X Wiring Harness w/ Toggle Switch
§
(SKU# 84002)
FEATURES & SPECIFICATIONS:
LIGHT OUTPUT: 4600 Lumens (Per Light)
§
POWER: 80W @ 13.6V DC
§
VOLTAGE: 10 - 36V DC
§
DIMENSION: 10.1 x 2.3 x 1.6"
§
BEAM PATTERN:
§
Driving Beam (Auxiliary High Beam)
§
COMPLIANCE: SAE J581
1
WWW.ARC.LIGHTING
Advertisement
Table of Contents
Related Manuals for ARC Lighting Tiny Monster Xtreme Series
Summary of Contents for ARC Lighting Tiny Monster Xtreme Series

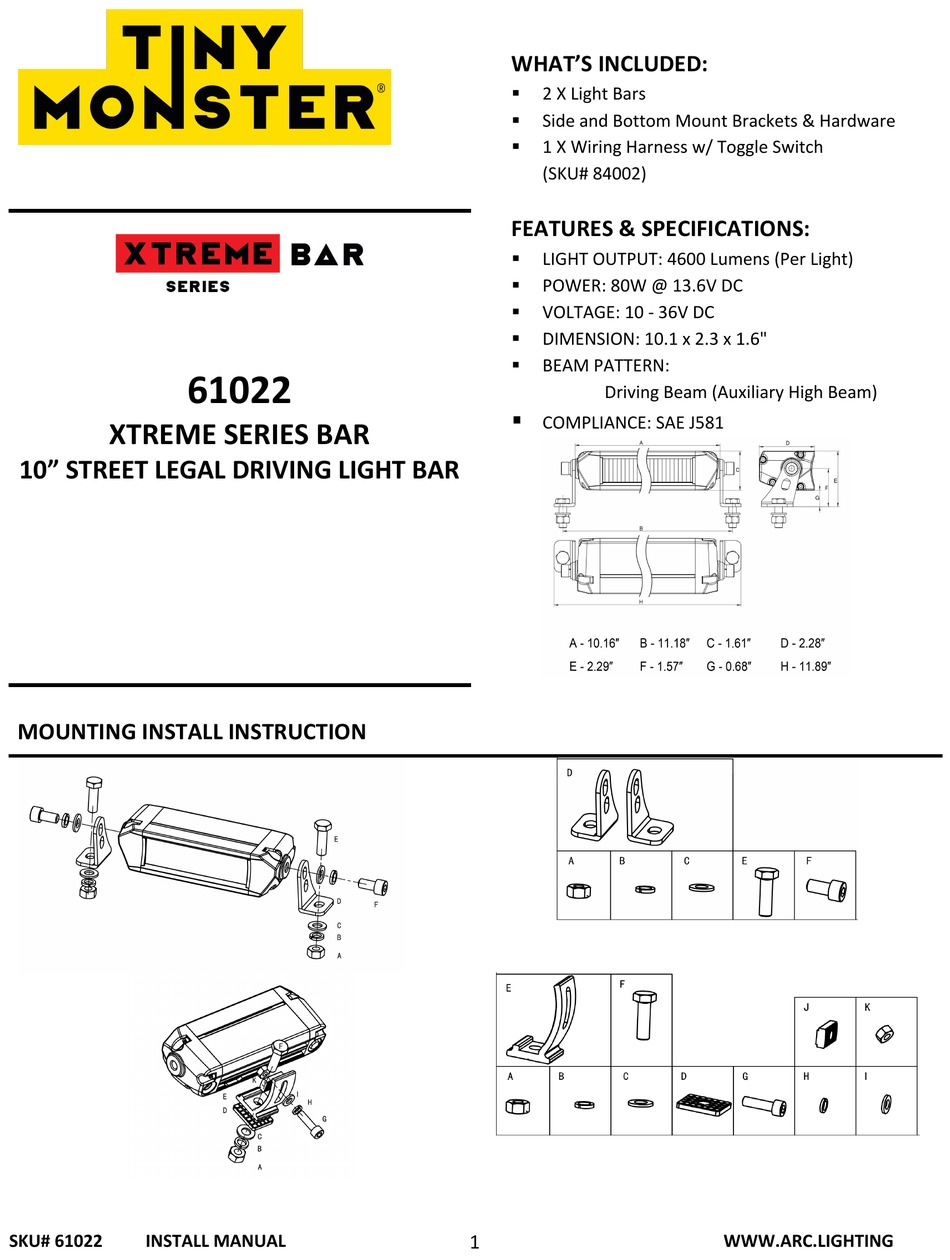

- Page 1 WHAT’S INCLUDED: 2 X Light Bars § Side and Bottom Mount Brackets & Hardware § 1 X Wiring Harness w/ Toggle Switch § (SKU# 84002) FEATURES & SPECIFICATIONS: LIGHT OUTPUT: 4600 Lumens (Per Light) § POWER: 80W @ 13.6V DC §...
- Page 2 HARNESS INSTALL INSTRUCTION 1. Determine suitable mounting locations to install the LED light bars, wiring harness and switch. Once all mounting locations are confirmed, connect the wires as shown above. Proper insulation at connections is required. 2. Connect positive and negative wire properly. Press the switch button to test if the lights are functioning properly.
