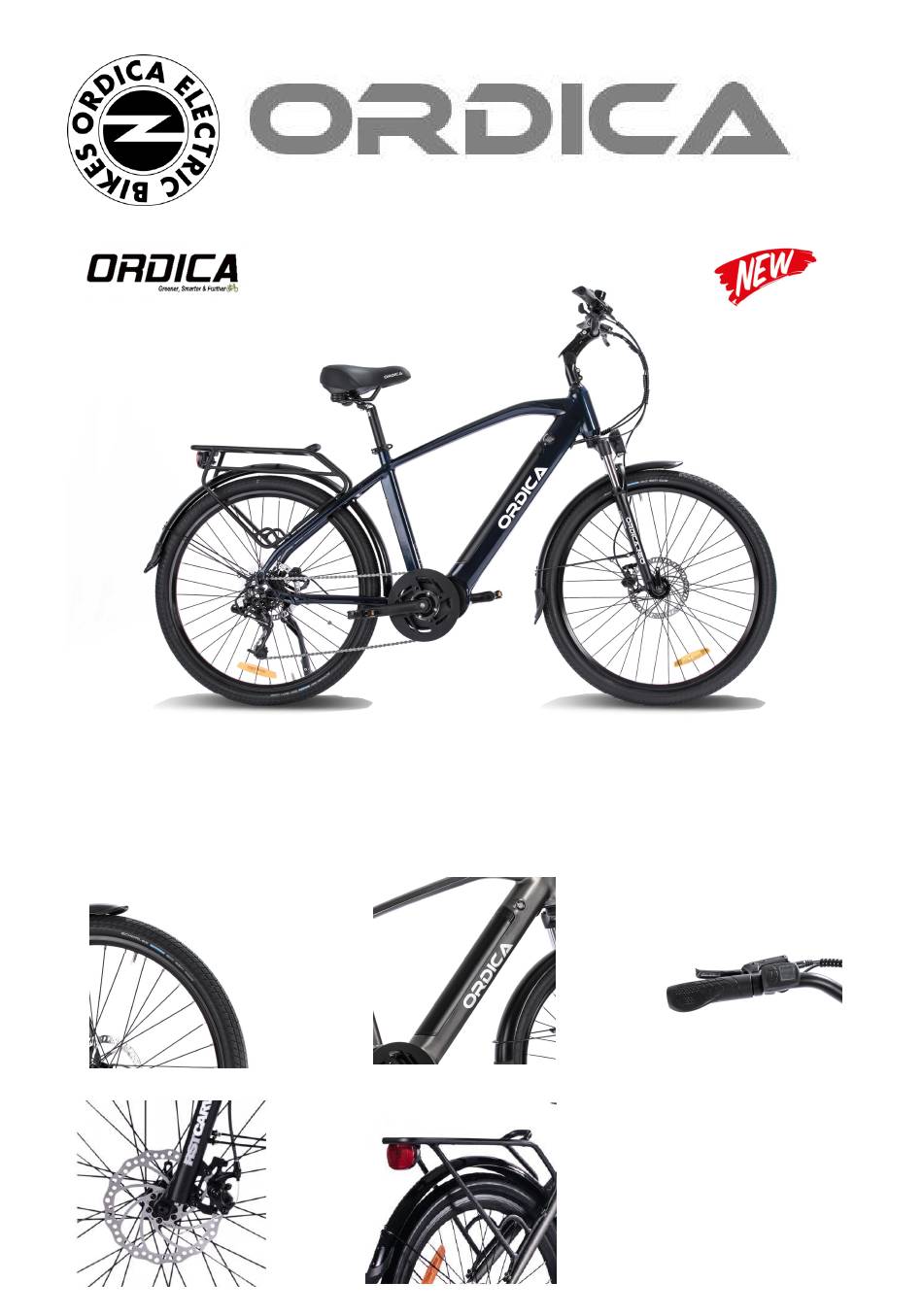

- Page 1 ELECTRIC BIKE MANUAL - PLEASE READ ME FIRST! ORDICA Electric Bikes www.ordica.com.au info@ordica.co...

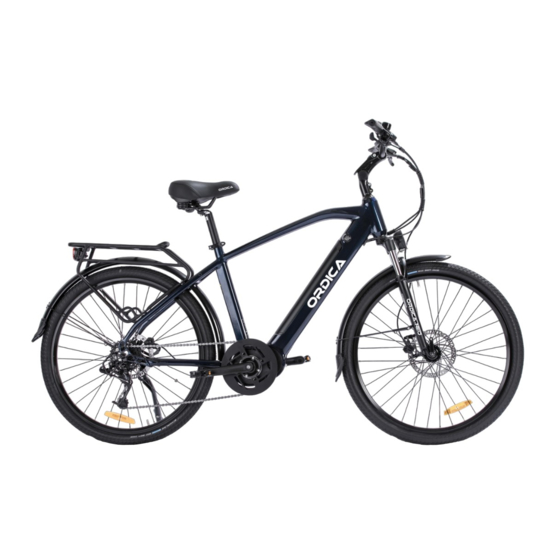

- Page 2 1. YOUR ORDICA NEO E-BIKE ORDICA NEO 27.5 INCH - IN CHARCOAL ORDICA NEO 27.5 INCH - IN NAVY 1. INTRODUCTION For your safety and for the safety of others, we recommend that you obey all road regulations and wear a protective helmet. For optimal, safe and enjoyable use of your e-bike, make sure you thoroughly read this user guide before you first ride.
-
Page 3: General Presentation Of The Vehicle
2. G ENERAL PRESENTATION OF THE VEHICLE General information Total weight of bike with battery：27.5 inch is 25kg Approx Assisted speed：25 ~ 27km/h 1 Mid drive motor：36V 250 W ○ Multi-function display with Bluetooth Permissible weight of the rider：100KG Maximum total weight：125KG (includes the ebike ) Battery Lithium-ion ：36V14Ah Samsung Cells Charge time：2-8 hours with the 2Ah charger... -
Page 4: Using The E-Bike
3. USING THE E-BIKE Before each ride, make sure that your battery is fully charged. The 4 bar battery indicator located on the display indicates the battery charge level. DISPLAY PANEL To Turn Display ON/OFF button Short press start to turn ON. Long press for three seconds turn OFF Select your desired assistance level and begin to pedal. -
Page 5: Quick - Release Devices
Our Ordica Neo mid drive electric bicycle comes with 8 speed sram gears. To adjust the gears please press the gear shifter forward to your desire gear which is located on the right hand side of the handle. You can also use your bike without the electric motor assistance mode by turning your level assist to OFF mode or turn off the battery. - Page 6 How to adjust the saddle height to suit the rider RIDE RECAUTIONS REQUIRED PRIOR TO EACH Check that the brakes and the front & rear lights are all working properly. Also check the pressure of the tires. Make sure that the hinges on your bike are properly locked. When using the bike on a regular basis, the tension of the hinges’...
-
Page 7: Routine Maintenance
3.1 L UBRICATION Frequency Component Lubricant How to Lubricate Chain Chain Lube or Light Oil Brush On or Squirt Derailleur Pulleys Chain Lube or Light Oil Brush On or Squirt Oil Can Monthly Derailleurs Brake Calipers 3 drops from oil can Brake Levers 2 drops from oil can Monthly... -
Page 8: Service Checklist
2. Service Checklist Frequency Task Make sure battery are fully charged Before every ride Check tire pressure Check brakes Check wheels for loose spokes Be sure to fully charge battery After every ride Quick wipe down with damp cloth Inspect wires Inspect connectors Check derailleur adjustment Check brake adjustment... -
Page 9: Installing And Removing The Battery
BATTERY 4.1 I NSTALLING AND REMOVING THE BATTERY To remove the battery, use key and turn anti clockwise the lock which is located along the lower frame. Remove the battery by lifting it out with the key is turned. To put the battery back into place, insert the battery then gently push down against the frame until you hear a click. -
Page 10: Battery Safety Instructions
Battery Your battery is just like a household battery. It contains a limited amount of energy, which diminishes as it is being used over time. Ordica battery comes with 2 Year limited warranty. Maintenance If you don’t use your bike for a period of time exceeding 2 months, store it in a humidity-free area to protect the electronic components and make sure that the battery is neither completely charged nor completely discharged .(1... -
Page 11: Safety Recommendations
5. SAFETY MAINTENANCE AND RECOMMENDATIONS 5.1 S AFETY RECOMMENDATIONS Helmet For safe riding- use of a bicycle helmet. Tires Inspect the wear of your tires on a regular basis and verify the tire pressure at least once a month. Tyre pressure: 45-60 PSI depending on the weight of the user. Wheel-rims Please take care of the wheel-rims and a clear of any danger of rim-wear. -
Page 12: Maintenance
Rear Rack Maximum load: 25kg. This carrier is not designed to pull a trailer. Don't install the child-seat on the carrier. The bicycle may behave differently (particularly with regard to steering and braking) when the carrier is loaded. Please ensure that any pannier fitted to the carrier is securely fitted in accordance with the manufacturer’s instructions and that there are no loose straps that can get caught in any of the wheels. -
Page 13: Warranty
Maintenance Used parts must be disposed of in appropriate selective sorting recycling bins. A battery that no longer works must be returned to your dealer so that he may pass it on to a recycling company. Engine/Motor: The motor does not require any sort of maintenance. Chain: It is recommended that you lubricate the bike’s 8 speed gearwheels and chain on a regular basis using appropriate products (ask your dealer for advice).
