- Page 1 ELECTRIC BIKE MANUAL - PLEASE READ ME FIRST! ORDICA Electric Bikes [ Website: www.ordica.com.au ]...

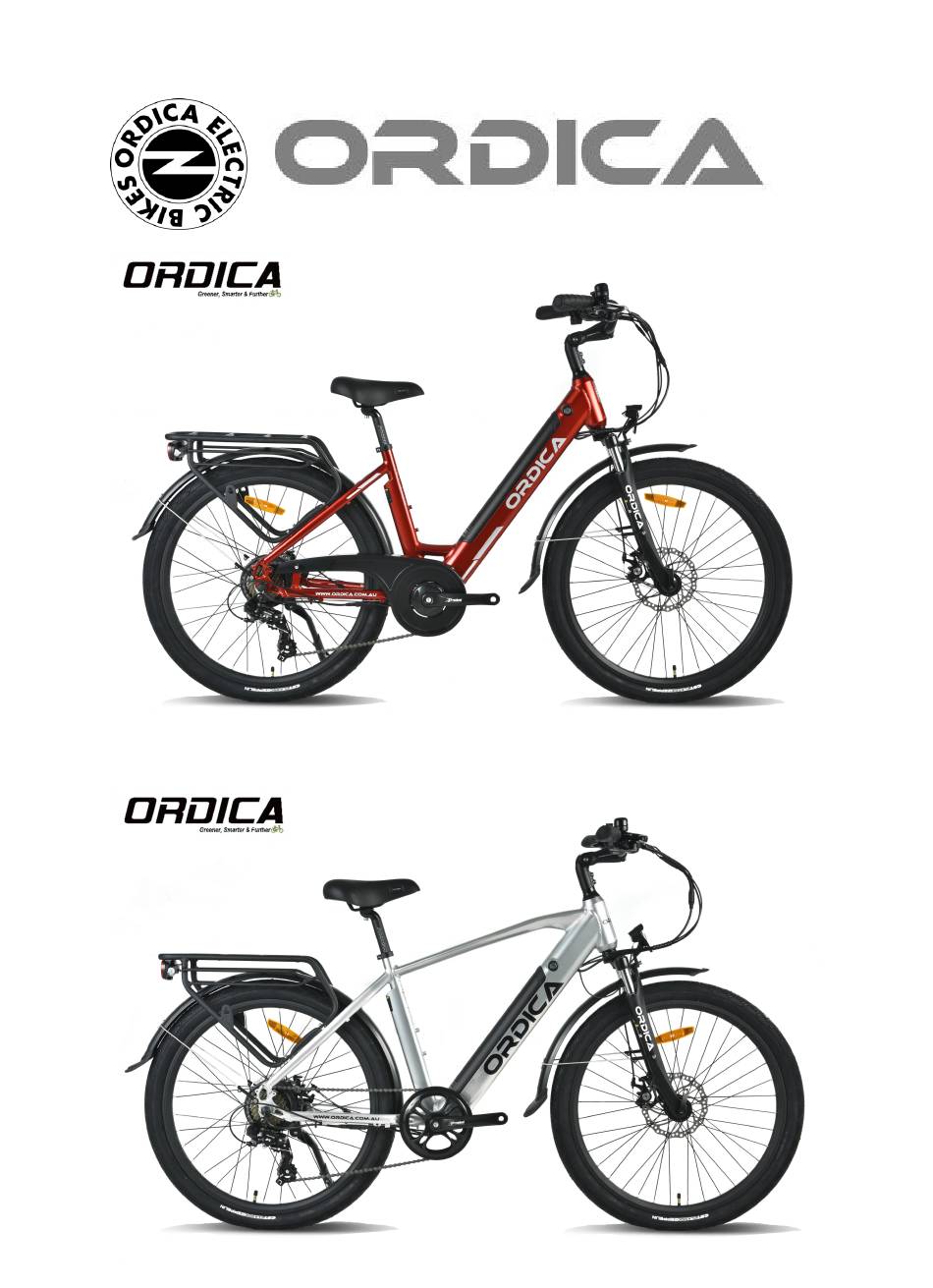

- Page 2 1. YOUR ORDICA SWIFT ORDICA SWIFT 26 INCH MIXIE/HYBRID - AVAILABLE IN RED/CHARCOAL/PALE BLUE 1. INTRODUCTION For your safety and for the safety of others, we recommend that you obey all road regulations and wear a protective helmet. For optimal, safe and enjoyable use of your e-bike, make sure you thoroughly read this user guide before you first ride.
-
Page 3: General Information
2. G ENERAL INFORMATION BIKE COMPONENTS Frame Material Aluminum 6061 Alloy Mixie *420MM / Hybrid *460MM Fork Suspension Fork Gearing Shimano 7 Speed Crankset 42T Crank Set Shifters Shimano Shifter Rear Derailleur Shimano Tourney Brakes Tektro Disc 26 Inch Tyres CST ZEPPELIN 26x2.0 Freewheel/Cassette Shimano... - Page 4 ORDICA DISPLAY PANEL Features: - Multi function display panel. - High Quality contrast matrix screen. - Suitable for High & low temperature. Max +45/-10”C - Ergonomic external button design, easy to operate, water resistance - Speed display : AVG SPEED, MAX SPEED, SPEED(Real-time).
-
Page 5: Display Panel Functions
3.DISPLAY PANEL FUNCTIONS 3.1 Power On/Off Press and hold Power button for 1 second to turn on/off the display. The Display will automatically turn off when there is no operate & ride for 5 minutes. DOWN 3.2 Motor Power Assist Level Short press UP/DOWN button will change the motor assist level. - Page 6 3.4 Backlight On/Off Press and hold button for 1 second will turn on/off the backlight. 3.5 Walking mode (6km) Press and hold DOWN button for more then 2 second will activate walking mode, release the button to stop walk mode 3.6 Data Reset Press and hold MODE buttons for 2 second.
-
Page 7: Error Code Definition
5.ERROR CODE DEFINITION If error occurs , display panel will show warning ERROR code message, icon on the screen, and show error code at the bottom of the screen, error code is from 01 E~0N E. The table below are the error definitions. Error Code Error description Error display... - Page 8 6.REQUIREMENTS PRIOR TO EACH RIDE 6.1 Q UICK RELEASE DEVICES/SEAT POST/ BRAKES/ TIRE PRESSURE Tighten the adjusting nut by hand and move the quick release lever to the closed position.You should feel considerable resistance while moving the lever. If not, re- open and re-tighten the lever, then move it to the closed position so it is in line with the frame *** SEAT POST HEIGHT- DO NOT GO ABOVE THE RECOMMENDED HEIGHT...
-
Page 9: Safety Recommendations
Important: braking distance increases on humid or slippery ground. Saddle-post Do not go above the recommended height. For taller rider please buy the right size frame ORDICA ebike or use longer 400mm seat post. DO NOT mount rack on seat post. Reflector... - Page 10 Rack The rack is able to hold a maximum, evenly balanced load of 25kg. Signaling device /Bell The bike is silent. In order to alert others as to your presence, you have a signaling device(Bell): use it only when absolutely necessary, don’t abuse it! WARNING: As with all mechanical components, the bicycle is subjected to wear and high stresses.
- Page 11 Check all points as per monthly service Every six months Check and replace brake pads, if required Check chain for excess play or wear Book general bike service (ORDICA electric bike dealer ) Yearly Lubrication as per schedule Book general bike service (ORDICA electric bike dealer)
-
Page 12: Maintenance
Make sure all electrical components are wipe clean and dry from any water or moisture. Store your ORDICA electric bicycle inside and do not leave outdoor for long period of time. DO NOT USE HOSE OR HIGH PRESSURE WASHER! -
Page 13: Installing And Removing The Battery
8.BATTERY NSTALLING AND REMOVING THE BATTERY To remove the battery, use key and turn anti clockwise the lock which is located along the lower frame. Remove the battery by lifting it out with the key is turned. To put the battery back into place, insert the battery then gently push down against the frame until you hear a click. -
Page 14: Battery Safety Instructions
Battery Your battery is just like a household battery. It contains a limited amount of energy, which diminishes as it is being used over time. Ordica battery comes with 2 Year limited warranty. Maintenance If you don’t use your bike for a period of time exceeding 2 months, store it in a humidity-free area to protect the electronic components and make sure that the battery is neither completely charged nor completely discharged .(1... - Page 15 SAFETY MAINTENANCE AND RECOMMENDATIONS AFETY RECOMMENDATIONS Helmet For safe riding- use of a bicycle helmet. Tyres Inspect the wear of your tyres on a regular basis and verify the tyre pressure at least once a month. Tyre pressure: 40-50 PSI depending on the weight of the user. Wheel-rims Please take care of the wheel-rims and a clear of any danger of rim-wear.
- Page 16 Signaling device /Bell The bike is silent. In order to alert others as to your presence, you have an approved signaling device(Bell): use it only when absolutely necessary, don’t abuse WARNING: As with all mechanical components, the bicycle is subjected to wear and high stresses.
-
Page 17: Accessories - Optional Extras
ACCESSORIES - OPTIONAL EXTRAS Helmet Baskets Storage pouch To order these accessories, get in touch with your dealer Using only genuine replacement part for safety-critical components. WARRANTY Your bike comes with 3 years frame warranty and 2 years on motor and battery and transferable.
