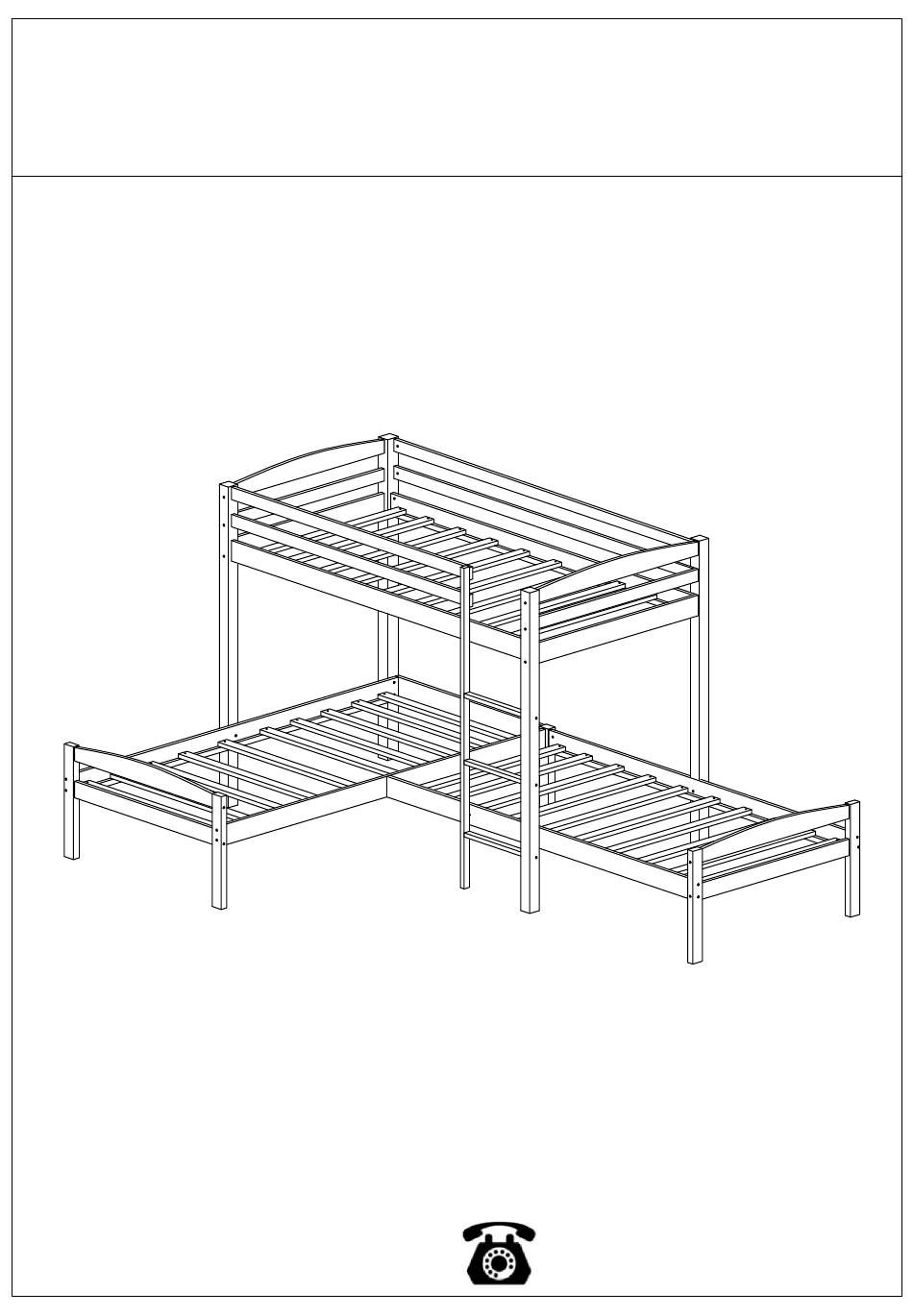

ASSEMBLY INSTRUCTIONS
ITEM # : WF198158/198159
PLEASE DO NOT RETURN PRODUCT TO THE STORE.
If you have any problem or concerns, please feel free to contact our customer
service department. We will reply you as soon as possible.
E-Mail: wmcsr@comptree.net
Tel: 626-912-8886 Ext.100
1
Advertisement
Related Manuals for comptree WF198158
Summary of Contents for comptree WF198158
- Page 1 ASSEMBLY INSTRUCTIONS ITEM # : WF198158/198159 PLEASE DO NOT RETURN PRODUCT TO THE STORE. If you have any problem or concerns, please feel free to contact our customer service department. We will reply you as soon as possible. E-Mail: wmcsr@comptree.net...
- Page 2 Detail View...
- Page 3 Part List: WF198159 Upper legs - 2pcs Upper legs - 2pcs Side rail - 1pc Upper leg -1pc Upper leg -1pc Upper leg - 1pc Upper leg - 1pc Side rail -1pc Ladder Left side rail - 1pc Ladder step - 3pcs Upper leg - 1pc Side rail- 1pc Side rail - 1pc...
- Page 4 Part List: WF198158 Upper legs - 2pcs Cap for horizontal bar - 3pcs Bottom horizontal bar - 3pcs Center horizontal bar - 1pcs Bottom horizontal bar - 1pcs Cap for horizontal bar - 1pcs Bottom horizontal bar - 1pc Slats - 30pcs...
- Page 5 STEP 1: Following below illustration Assembly FRAME #1. Using hardware #1 & #3 connect A and C horizontal bars with B and D legs to complete FRAME #1. 8PCS 8PCS NOTE: In this step, DO NOT tighten any bolt until you connect all part together STEP 2: Following below illustration Assembly FRAME #2.
- Page 6 STEP 3: Following below illustration Assembly FRAME #3. Using hardware #1, #2, #4, #5 & #7 connect G and H side rails with FRAME #1 and FRAME #2 to complete FRAME #3. 4PCS 2PCS 6PCS 2PCS (FRAME #2 ) 4PCS (FRAME #1 ) NOTE: In this step, DO NOT tighten any bolt...
- Page 7 STEP 5: Following below illustration Assembly FRAME #5. Using hardware #1, #3 & #5 connect A, V and C horizontal bars with FRAME #3 (F-Upper leg) and M upper leg to complete FRAME #5. 6PCS 6PCS (FRAME #3 ) NOTE: In this step, DO NOT tighten any bolt until you connect all part together STEP 6:...
- Page 8 STEP 7: Following below illustration Assembly FRAME #7. Using hardware #1 & #3 connect A, V and C horizontal bars with FRAME #4 and P upper leg to complete FRAME #7. 6PCS 6PCS (FRAME #4 ) NOTE: In this step, DO NOT tighten any bolt until you connect all part together STEP 8: Following below illustration Assembly FRAME #8.
- Page 9 STEP 9: Following below illustration Assembly FRAME #8. Using hardware #1, #2, #4 & #5 connect Q upper long guard rail, R and S side rails with FRAME #6 and FRAME #7 to complete FRAME #8. 2PCS 2PCS 2PCS 2PCS (FRAME #7 ) (FRAME #6 ) NOTE:...
- Page 10 STEP 11: Following below illustration Assembly FRAME #10. Using hardware #1, #2, #4 & #5 connect T upper short guard rail with FRAME #9 (M - Upper leg, K - ladder left side rail) to complete FRAME #10. 8PCS 2PCS 2PCS 2PCS (FRAME #9 )
- Page 11 STEP 12: Following below illustration assembly Completed Bunk Bed. Using hardware screw #8 connect to screw all slats #15 on all the Bunk Bed. WARNING !: Please completed screw all the slats in to side rails before using. 60PCS COMPLETED BUNK BED...
