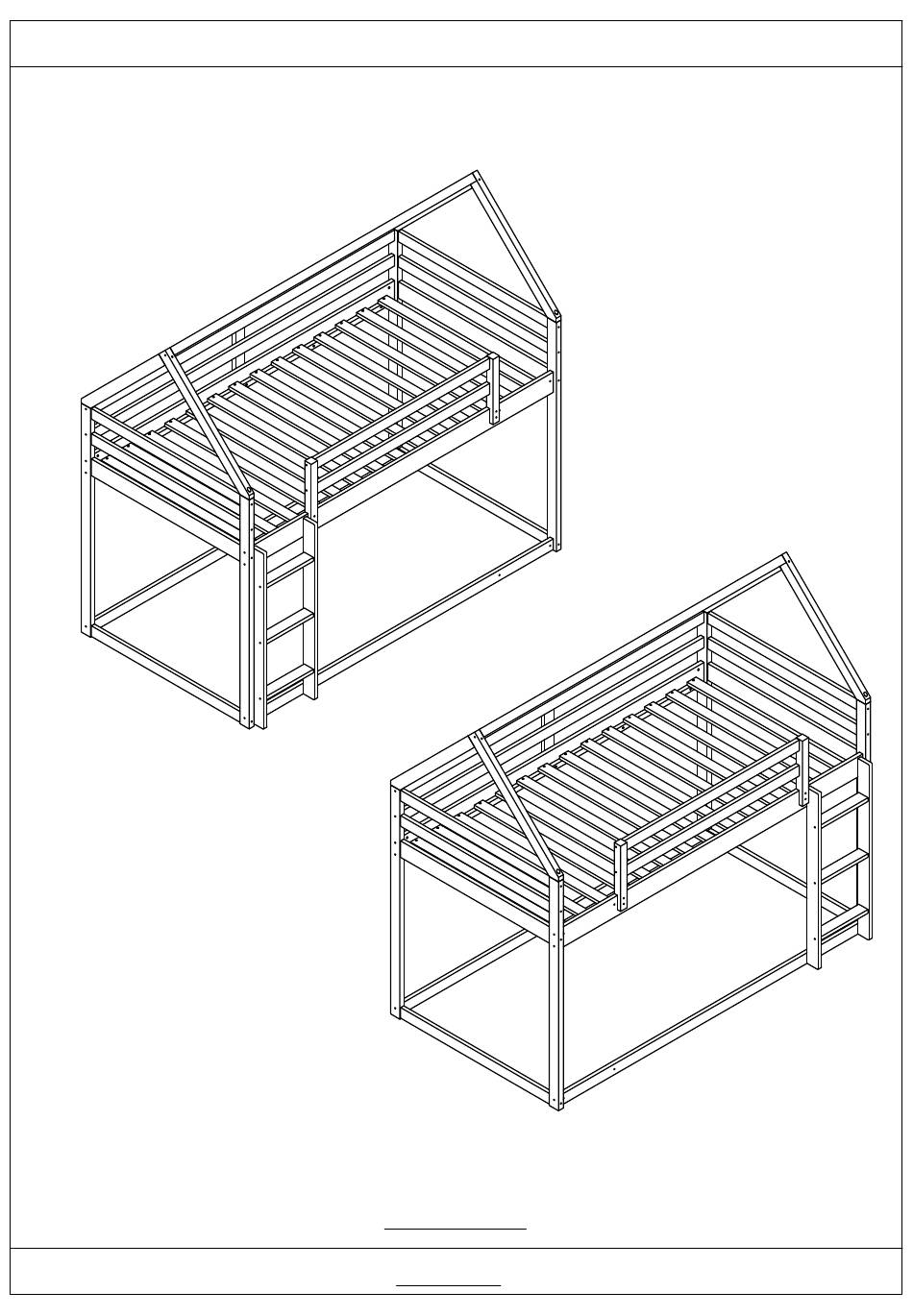

- Page 1 ASSEMBLY INSTRUCTIONS TWIN HOUSE LOFT BED WF285733 PAGE 1 OF 8...
- Page 2 NOT EXCEED 6". - SURFACE OF MATTRESS MUST BE AT LEAST 5" (127MM) BELOW THE UPPER EDGE OF GUARDRAILS. - Replacement Parts: Replacement Parts, including additional guardrails, may be obtained from any of our (COMPTREE INC.) dealers PAGE 2 OF 8...
- Page 3 ASSEMBLY INSTRUCTIONS HARDWARE LIST ( WF285733) Ø4x25 28PCS 6.5x50 4PCS 3PCS 1/4x75 8PCS Ø4x30 6.5x100 18PCS 1/4x35 4PCS Ø10x40 6.5x80 14PCS 60PCS 6.5x60 10PCS 4x58 PAGE 3 OF 8...
- Page 4 ASSEMBLY INSTRUCTIONS PARTS LIST WF285733 6pcs Top cross bar Middle & botoom bars 2pcs Botoom bars Bottom front bar 3pcs Top & bottom back bar Left front leg Right front leg Front side rails 1pcs Left back leg Back side rails 1pcs Left guard rails support Right back leg...
- Page 5 ASSEMBLY INSTRUCTIONS Step 1 12 x2 12 x2 13 x1 13 x1 16 x1 17 x1 14 x1 12 x1 12 x1 15 x1 4x58 16PCS Ø10x40 6.5x100 32PCS Step 2 11 x2 10 x2 6.5x100 2PCS Ø10x40 4x58 2PCS PAGE 5 OF 8...
- Page 6 ASSEMBLY INSTRUCTIONS Step 3 4x58 Ø10x40 4PCS 6.5x50 4PCS Step 4 1 x1 5 x1 3 x3 2 x1 4 x1 Ø10x40 12PCS 6.5x80 10PCS 4x58 1/4x75 8PCS PAGE 6 OF 8...
- Page 7 ASSEMBLY INSTRUBTIONS ASSEMBLY INSTRUCTIONS First attach 2pcs part 21 to the front and end of the frame between headboard. Step 5 Then attach the remaining part 21 equidistantly between headboard 21 x14 9 x1 3-1/8" 3-1/8" Note : Do not lock the screws of the bed slats to the outermost edge of the bed slats, you need to leave a certain space at the edges, otherwise it will cause the board to break Ø4x25 28PCS...
- Page 8 ASSEMBLY INSTRUCTIONS Step 7 7 x1 8 x2 4x58 6 x1 4PCS Ø10x40 6.5x80 4PCS Step 8 4x58 1/4x35 4PCS 6.5x60 4PCS PAGE 8 OF 8...
