WIREFY CRMP-01 Manual

Download this manual

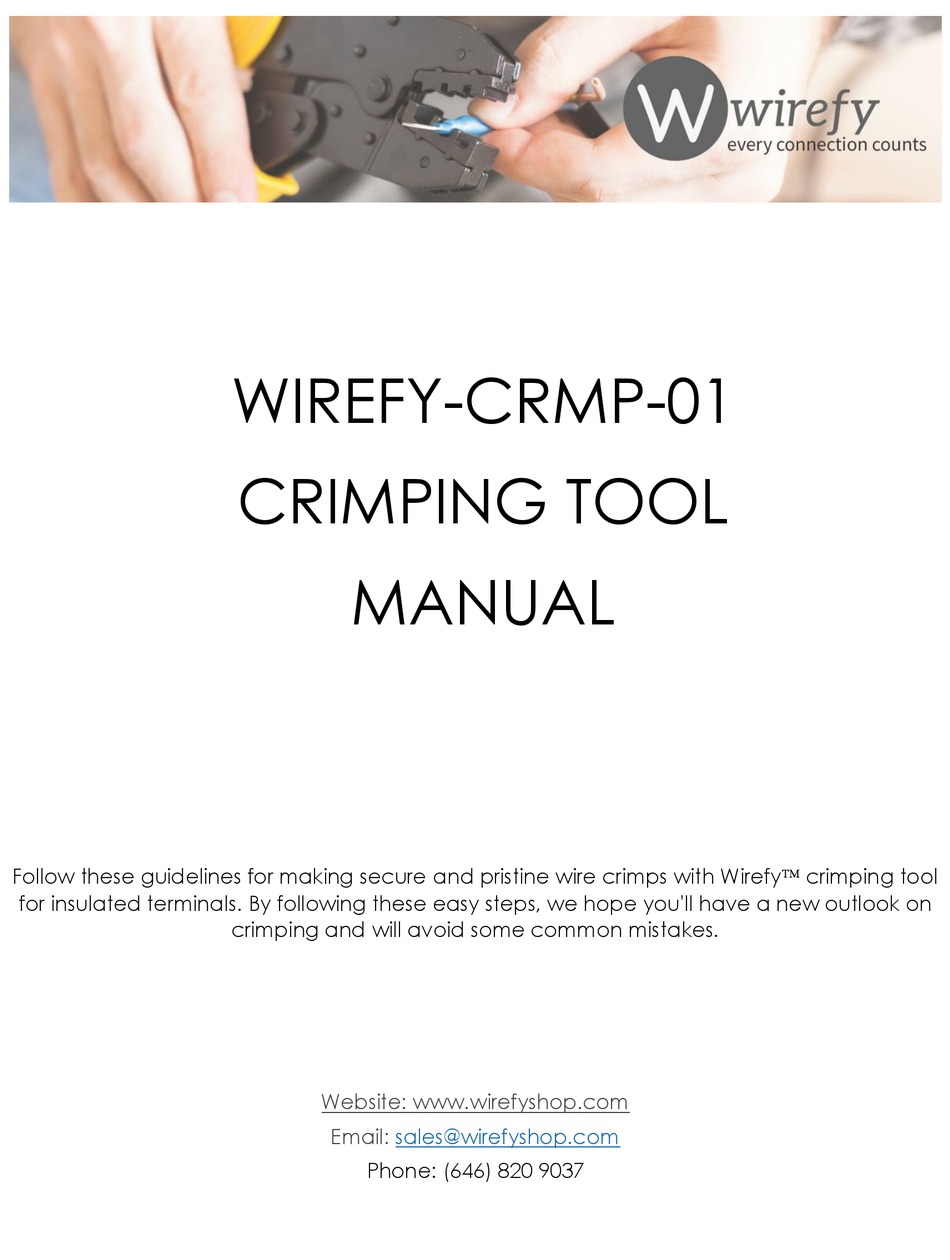

WIREFY-CRMP-01

CRIMPING TOOL

MANUAL

Follow these guidelines for making secure and pristine wire crimps with Wirefy crimping tool

for insulated terminals. By following these easy steps, we hope you'll have a new outlook on

crimping and will avoid some common mistakes.

Website: www.wirefyshop.com

Email:

sales@wirefyshop.com

Phone: (646) 820 9037

Need help?

Do you have a question about the CRMP-01 and is the answer not in the manual?

Page 1 CRIMPING TOOL MANUAL Follow these guidelines for making secure and pristine wire crimps with Wirefy crimping tool for insulated terminals. By following these easy steps, we hope you'll have a new outlook on crimping and will avoid some common mistakes.
Page 2 1. Choose the right connector size Start off by picking the right connector size for your wiring project. Your crimping tool has 3 die nests that are color marked. Insert the connector into the color matching die nest. 2. Insert the connector into the tool Once the connector is inserted into the die nest, tighten down faintly until you...
Page 3 4. Make the Crimp When you have the wire properly placed, complete the ratcheting closure of handles until they spring open. Remove the crimped connector carefully for further inspection. With a ratcheting crimp tool, the consistent crimping results can be repeated easily even by someone with little training.
Page 4 7. Safety release If it is necessary to open the crimping tool prior to full closure, press the handles together slightly. Press the emergency unlocking quick release trigger (push it in) and open the handles simultaneously.
Page 5 Thank you for being our valued customer. If you have any questions, please email us at service@wirefyshop.com...
