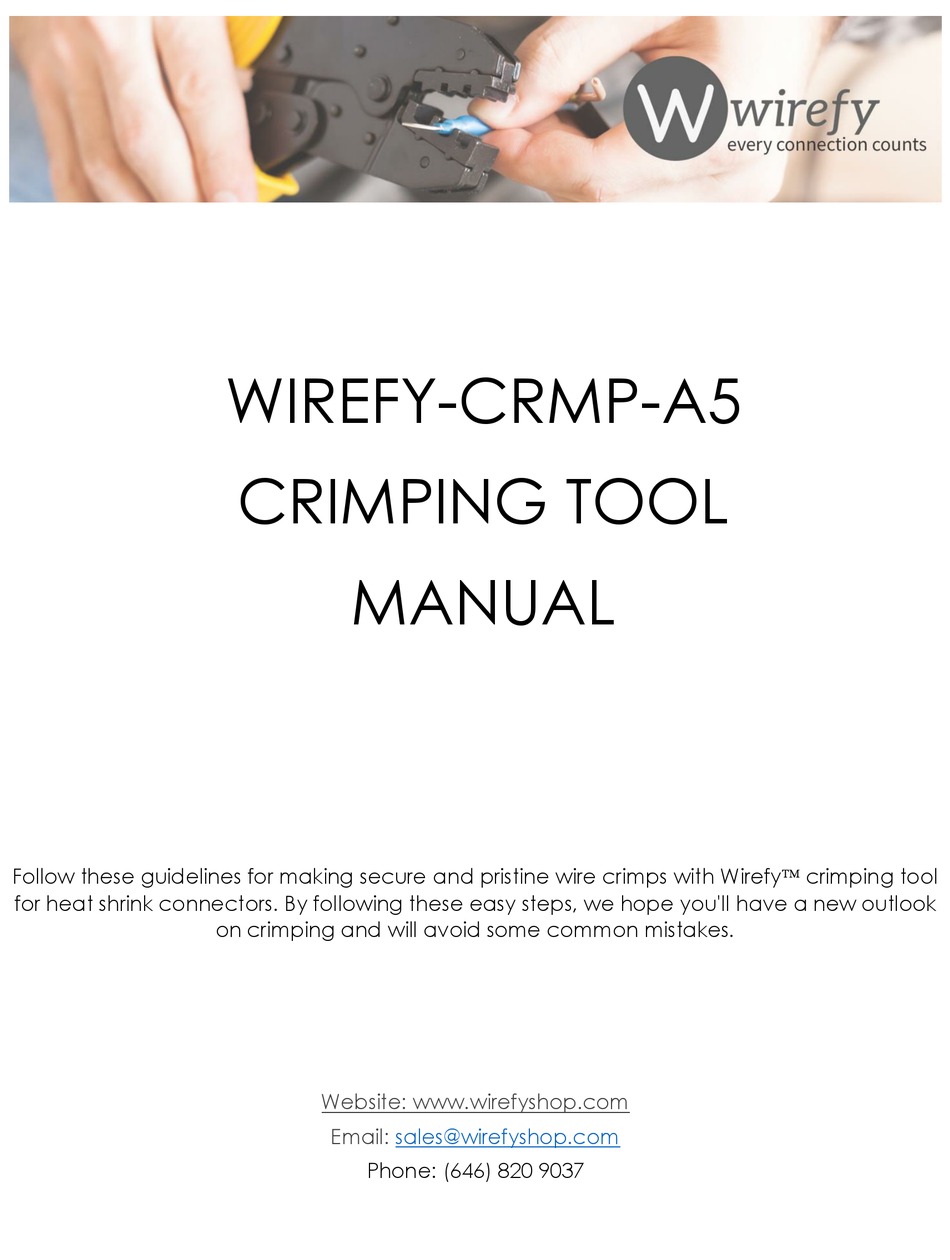

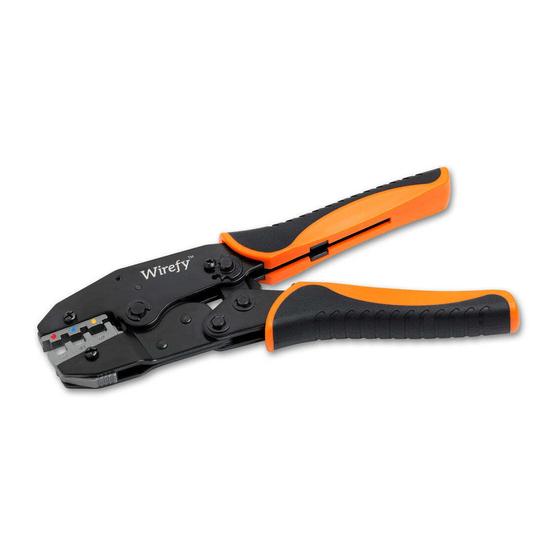

WIREFY-CRMP-A5
CRIMPING TOOL
MANUAL
Follow these guidelines for making secure and pristine wire crimps with Wirefy crimping tool
for heat shrink connectors. By following these easy steps, we hope you'll have a new outlook
on crimping and will avoid some common mistakes.
Website: www.wirefyshop.com
Email:
sales@wirefyshop.com
Phone: (646) 820 9037
Advertisement
Table of Contents
Related Manuals for WIREFY WIREFY-CRMP-A5
Summary of Contents for WIREFY WIREFY-CRMP-A5
- Page 1 CRIMPING TOOL MANUAL Follow these guidelines for making secure and pristine wire crimps with Wirefy crimping tool for heat shrink connectors. By following these easy steps, we hope you'll have a new outlook on crimping and will avoid some common mistakes.
- Page 2 1. Choose the right connector size Start off by picking the right connector size for your wiring project. Your crimping tool has 3 die nests that are color marked. Insert the connector into the die nest with a matching color. 2.
- Page 3 4. Make the Crimp When you have the wire properly placed, complete the ratcheting closure of handles until they spring open. Remove the crimped connector carefully for further inspection. Apply heat to finish your connection. With a ratcheting crimp tool, the consistent crimping results can be repeated easily even by someone with little training.
- Page 4 7. Safety release If it is necessary to open the crimping tool prior to full closure, press the handles together slightly. Press the emergency unlocking quick release trigger (push it in) and open the handles simultaneously.
- Page 5 Thank you for being our valued customer. If you have any questions, please email us at service@wirefyshop.com...
