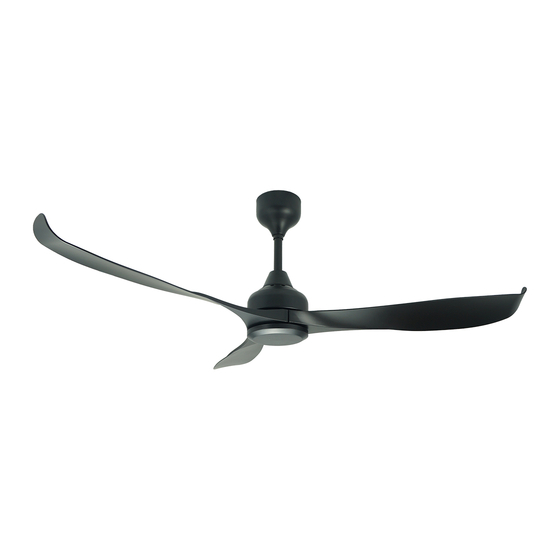

- Page 1 Instruction Manual Ceiling Fan Model: FS563N MB / FS563N MW / FS563N OW INPORTANT: For your safety please read and understand this manual before installing or operating this product.
- Page 2 Safety precautlons /Langkah-langkah Keselamatan/安全注意事项 To avoid the possibility of causing injury to users or damage to property, please follow all the explanations as below. Untuk mengelakkan kemalangon atau kerosakkan harta benda, sila patuhi semualangkoh pencegahan dibawah. 为了避免导致用户受伤或财物损坏的可能性，请遵守以下所述的所有指示。 (a) Ceiling Fan must be mounted above 2.5m from (b) Avoid fixing inside a dome ceiling.
- Page 3 Specifications / Spesifikasi / 规格 FS563N MB FS563N MW FS563N OW Model/Model/型号 56 in 56 in 56 in Fan Size/Saiz Kpas/风扇尺寸 110-240～50/60Hz 110-240～50/60Hz 110-240～50/60Hz Voltage/Voltan/电压 Motor power/Kuasa kipas/功率 200(RPM)±10% 200(RPM)±10% 200(RPM)±10% Max.Speed(RPM)/Kelajuan Maxima(RPM)/转速（±5%） 6.7KG 6.7KG 6.7KG Nett Weight/Bersih/净重 7.5KG 7.5KG 7.5KG...
- Page 4 Installation Instruction / Tatacara Pemasangan / 安装说明 WARNING:TURN OFF THE MAIN SWITCH AT THE DB (ELECTRICAL DISTRIBUTION BOX) Amaran: Putuskan suis kuasa utama sebelum memulakan pemasangan. 警告：关闭电箱的主开关 STEP1: Assemble suspension system / Langkah 1: Pemasangan sistem gantungan／步骤 1:组装悬挂系统 a) assemble the suspender, upper cover and lower cover as shown in figure A. b) connect the assembled parts to the motor and fix the screws and R pins a) ledakan, penutup atas dan penutup yang lebih rendah dipasang seperti yang ditunjukkan dalam Rajah A.
- Page 5 Installation Instruction / Tatacara Pemasangan / 安装说明 STEP 3: Install the Decorative Cover / Langkah 3: Memasang Sarung Hiasan／步骤 3: 安装装饰盖 a) Aim the decorative cover at the screw on the motor and tighten clockwise. a) Selaraskan Sarung Hiasan untuk skru pada Motor dan Ketatkan mereka mengikut arah jam. a) 将装饰盖对准马达上的螺丝，顺时针拧紧。...
- Page 6 Installation Instruction / Tatacara Pemasangan / 安装说明 STEP 5 : Installation of safety cable / Langkah 5: Pemasangan dawai keselamatan／步骤 5：装配安全钢缆 a) Loop the safety cable around the ceiling hook and through the shackle. Secure it with the locking screw. (Refer Diagram E) a) lkatkan dawai keselamatan pada cangkuk siting and tembuskan ia melalui kancing dawai.
- Page 7 Remote Control Operation Guide / Panduan penggunaan alat kawalan / 遥控器和操作 Remote Control Buttons/遥控器按钮 Pairing the remote control: Step 1)Turn on the ceiling fan. Step 2)Within the first 20 seconds, continue pressing the button with the＂Sleep Mode＂symbol until you hear a ＂beep＂sound.
- Page 8 Smart Control APP Operation /APLIKASI dan operasi / APP操作 1) Search for TUYA APP in the mobile APP Store. Download the APP and follow the following instructions /Cari aplikasi TUYA dalam stor mudah alih dan muat turunnya seperti berikut. /手机应用商店搜索TUYA APP，下载即可按以下说明操作 2）Turn on your phone's WIFI and Bluetooth.
- Page 9 Trouble shooting / Penyelesaian masalah / 故障排除 Symptom/Gejala/症状 Possible Solution/ Penyelesaian /可行的解决方案 Wobbles/Bergoyang/ -Make sure that all the screws securing the blades are securely fastened. 摆动 /Pastikan semua skru pada bi/ah kipas diketatkan. /确保所有固定叶片的螺丝拧紧。 -Make sure that all the blades are securely fastened. /Pastikan pemasangan bi/ah kipas betul don diketatkan.
-
Page 10: Care Of Your Fan
Warning / Amaran / 警告 To ensure safety, kindly check the following: Demi keselamatan，patuhi langkah-langkah dibawah: 为了安全起见，请检查下列各项零件： (a) The ceiling fan is securely fixed to the main hook. Kipas siling dipasang pada cangkuk utama. 风扇已锁紧于主钩。 (b) The safety wire is securely fixed and tightened by a screw. Dawai keselamatan dipasang dan diketatkan dengan skru. - Page 11 STAMP / SETEM / 邮票 FANZ SDN BHD NO.G22, Jalan Permas 15/1, Bandar Baru Permas Jaya, 81750 Masai, Johor,Malaysia. TEL: 07-386 4799 FAX:07-386 4799 Register online to get an additional 12 months warranty WARRANTY CARD(CEILING FAN) / KAD WARANTI(KIPAS SILING)
- Page 12 CUSTOMER COPY / SALINAN PELANGGAN Subject to following Terms & Conditions,this appliance is warranty against defective material & manufacturing defects by Fanz Sdn Bhd for a period of (12) months from the original date of purchase. Fanz Sdn Bhd reserves the right to change these terms & conditions without prior notice.
