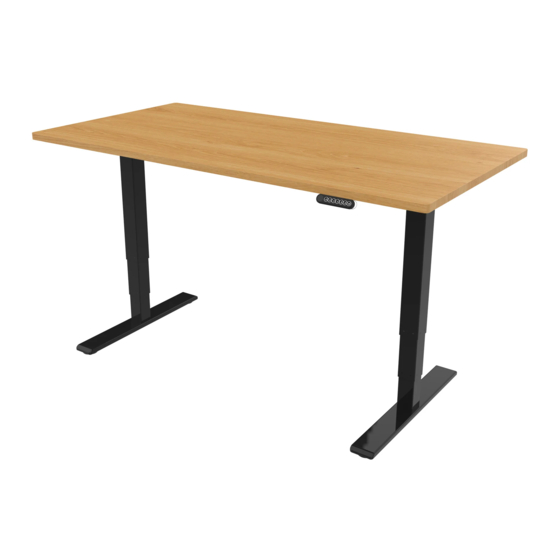

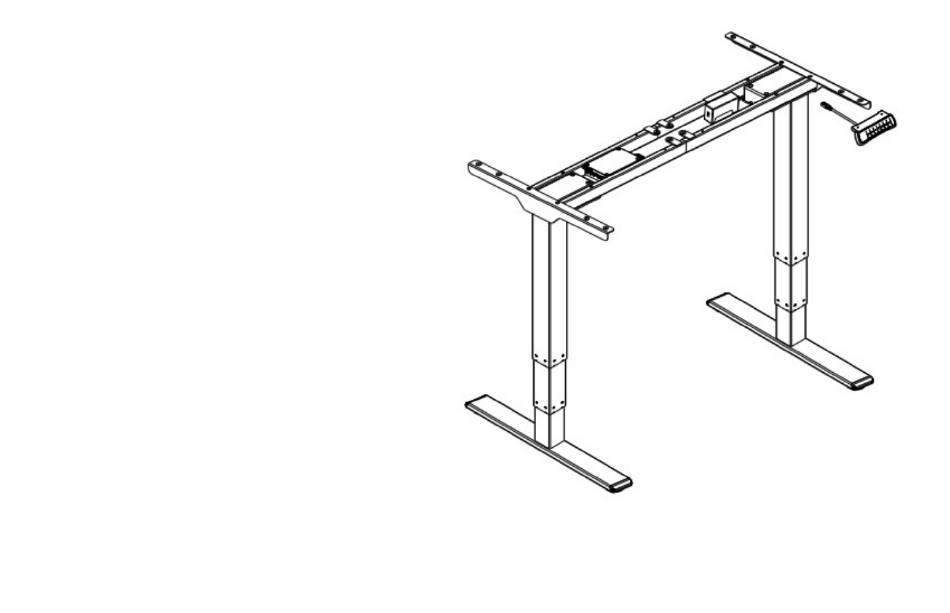

- Page 1 Assembly & Installation Guide Model: DT301-303 ELECTRIC HEIGHT-ADJUSTABLE DESK...
- Page 3 Preface This electric height-adjustable standing desk consists of a heavy-duty steel desk frame and a motorized height adjustment system. Please read and completely understand this manual before assembly and use. Instruction safety and warnings: FAILURE TO COMPLY WITH OR OBSERVE ALL INSTRUCTIONS AND WARNINGS REGARDING THE USE OF THIS PRODUCT MAY RESULT IN SERIOUS PROPERTY DAMAGE OR PHYSICAL INJURY.
- Page 4 WARNING - To avoid the risk of burns, fire, electric shock, or physical injury: Keep children away from electric height-adjustable desks, control units, and keypads. There is a risk of injury and electric shock. Close supervision is necessary when this furnishing is used by, or near children, invalids, or the disabled.
- Page 5 Do not insert anything into any seam or opening. Keep all electrical components dry. Do not operate this furnishing in an environment where aerosol (spray) products are being used or oxygen is being administered. Do not use outdoors. Inappropriate use of this product may cause property damage or physical injury.
- Page 6 MAKE SURE NO OBSTACLES ARE IN THE DESK'S PATH AND ALL CORDS ARE OF APPROPRIATE LENGTH FOR DESK TRAVEL. FAILURE TO COMPLY WITH OR OBSERVE ALL ASSEMBLY, SAFETY, AND OPERATION INSTRUCTIONS AND WARNINGS REGARDING THE USE OF THIS PRODUCT MAY RESULT IN SERIOUS PROPERTY DAMAGE OR PHYSICAL INJURY.
-
Page 7: Tools Required
Preparation Tools Required Allen Wrench Bubble Level Phillips Screwdriver (included) Drill... -
Page 8: Accessory List
Checklist Accessory List Attention: The drawings below are for guidance only and they may differ slightly from the product and fittings received. Please contact our customer service department if you have any questions. M6*4 M6*8 M6*8 St4.2*6 St4.2*16 Allen key *1 Cable tie*6... -
Page 9: Part List
Checklist Part List Right Left Feet*2 Lifting Column*2 Connection Side Bracket*2 Supporting Supporting Rod*2 Beam*2 Beam*2 Handset Adapter*1 Control Box*1 Adapter Cabel*1 Power Plug*1 Adapter Arm*1 (Option)*1... -
Page 10: Installation Instruction
Installation instruction... - Page 11 Assembly Step 1: Install the supporting beam and the side bracket...
- Page 12 Assembly Step 2: Install the lifting column 4 x 4...
- Page 13 Assembly Step 3: Install the feet 4 x 4...
- Page 14 Assembly Step 4: Install the adapter arm 4 x 4 Adjust Tighten...
- Page 15 Assembly Step 5: Install the tabletop, handset, control box and adapter x 14 Insert...
- Page 16 Assembly Step 6: Connect cables to the control box Manage cables cables Tear off...
-
Page 17: Technical Data
Technical Data Column Stage Max. Weight Capacity 100kg Height Range 620-1270mm (without tabletop) Width Range 1100-1700mm... - Page 18 Common fault treatment The following tips will help you detect and eliminate the common fault and error. If the fault you met is not listed below, please contact with your supplier. Only the manufacturer and professionals are capable for investigating and correcting those fault and error.
- Page 19 Attention Power supply: AC100V-240V, 50/60 Hz. Service Environment: 0-40 ℃. Unplug the power plug before cleaning, wipe the dust on surface with slight wet dishcloth when cleaning, be careful not to let the drops into the internal parts, not loose the connector. The electric box contains electronic components, metals, plastics, wires etc., so dispose of it in accordance with each country's environmental legislation, not the general household waste.
- Page 20 This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been giveb supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
- Page 21 Importer: Ergofino GmbH In Laisen 31, 72766, Reutlingen www.ergofino.de Manufacturer: Loctek Ergonomic Technology Corp. 588 Qihang South Road Binhai Industrial Zone, Yinzhou District Ningbo, Zhejiang 315145 P.R. China...
