Summary of Contents for Lynton Luminette Q
-
Page 3: Table Of Contents
Delivery & Unpacking 3.2.2 Parts List 3.2.3 Electrical Supply 3.2.4 Cooling Water Requirements System Familiarisation Operating the Luminette Q Laser System Changing Handpieces Interlock Warning Screen and LEDs CLEANING AND MAINTENANCE Cleaning Maintenance Schedule Maintenance Procedures 4.3.1 Topping up the Cooling Water 4.3.2... - Page 4 A1.3 Available Options and Accessories A1.4 Labelling...
-
Page 5: General Information

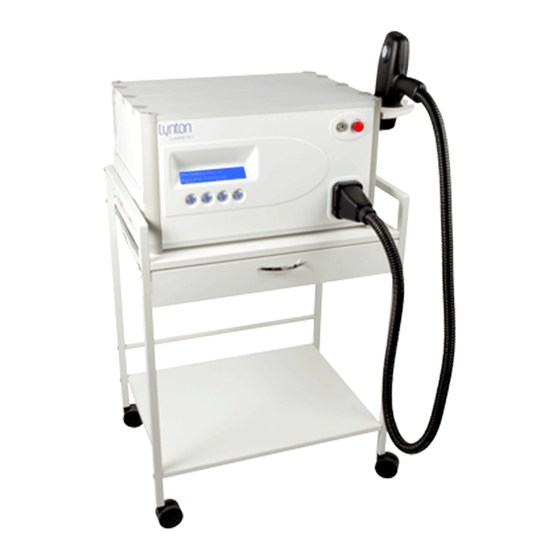

NOTE : The Luminette Q handpieces are not compatible with the Standard & Advance Luminette systems and vice versa. The Luminette Q System is a source of high intensity Q-switched laser output for a number of different applications in Cosmetic Dermatology. Based on a state-of-the-art laser technology the Luminette Q System is capable of delivering pulse fluences of up to 22.6J/cm... - Page 6 Laser System to be operated from only a standard 13 Amp mains outlet. No other connections are required. The Luminette Q Laser System is menu driven using a blue LCD display and stylish chrome-finish illuminated buttons. Pre-set default parameters are included for the different Skin Types, all determined through clinical experience.
-
Page 7: Safety
General Safety CAUTION : In the UK, the Luminette Q Laser System should be used at all times in accordance with the Health and Safety at Work, etc., Act, 1974. CAUTION : Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous light exposure. -
Page 8: Laser Radiation
(iv) Keep Records: You are further recommended to keep a regular record of all maintenance or repair procedures carried out on the Luminette Q System. By doing this the causes of sudden performance loss can be more immediately diagnosed. Laser Radiation The laser radiation emitted by the Nd:YAG Handpiece on a Luminette Q Laser System is at the following wavelength;... -
Page 9: Electrical Safety
________________________________________________________________________________ Electrical Safety When the Luminette Q Laser System is operated from the control panel with all covers in place and a Detachable Handpiece properly connected it does not present the operator with any electrical hazard. WARNING : The Luminette Q Laser System MUST NOT be operated by unauthorised personnel with any covers removed. -
Page 11: Operation
Installation 3.2.1 Delivery & Unpacking The Luminette Q Laser System is despatched in a crate designed to protect the equipment when subject to normal shipping and handling procedures. Upon arrival the crate should be inspected to ensure that it has not been unreasonably damaged during transit. -
Page 12: Electrical Supply
WARNING: The equipment MUST be adequately earthed. Ensure that the earth lead in the supply cable is connected to the earth lead of the electrical supply in the area where the Luminette Q Laser System is to be used. The fusing, however, depends on the mains supply as follows:... -
Page 13: System Familiarisation
This could then result in a serious leak and further damage to the Luminette Q System or Handpieces. System Familiarisation The controls on the Luminette Q Laser System are the same as those for all Luminette Systems and are shown in the following diagram: Emergency Stop Button Pressing down on this button shuts off ALL power to the system. - Page 14 The value of the mains inlet fuses (supply "live" AND “neutral”) will depend on the mains voltage at the location at which the Luminette Q System is used.
- Page 15 This cavity is the source of laser output produced by the Luminette Q System. The lamp and laser rod are water cooled. The water and power are delivered through the flexible conduit or umbilical.
-
Page 16: Operating The Luminette Q Laser System
Never sit the Luminette Q System directly onto a flat surface smaller than the footprint of the device. Always stand the Luminette Q System on its feet. - Page 17 ________________________________________________________________________________ space to operate efficiently. The user must also ensure that air can flow freely underneath the Luminette Q System. The air inlet vents are in the base plate of the cabinet and must not be blocked. The Luminette Q System must first be plugged into the mains and the room mains supply switched on if a switch is present.
- Page 18 The Luminette Q system produces passively Q-switched laser radiation in the form of a sequence of pulses, each with equal energy. When the treatment is finished the Luminette Q system should be returned to "Standby" mode by pressing the <STANDBY> button :...
-
Page 19: Changing Handpieces
If the use of the Luminette Q System is no longer required for any significant period it is recommended that it is turned off completely by pressing the <Shutdown>... -
Page 20: Interlock Warning Screen And Leds
Interlock Warning Screen and LEDs If at any stage a fault is detected, the Luminette Q Laser System will automatically take appropriate action to render itself safe and a message will be displayed on the screen. - Page 21 Inhibits Flashing System Temp (too hot) Inhibits Flashing If the fault cannot be easily corrected contact Lynton Lasers Ltd, or one of its designated agents, stating which LED(s) is/are lit. If a handpiece reaches the end of it’s recommended lifetime (currently...
- Page 22 ________________________________________________________________________________...
-
Page 23: Cleaning And Maintenance
(No.1 will also be lit). Simply unscrew the black Reservoir Filler Cap from the Reservoir Filling Point on the back panel of the Luminette Q System and top up the reservoir with 250ml of deionised water using the Filling Bottle shipped with the Luminette... -
Page 24: Filling The Cooling System From Empty
4.3.2 Filling the Cooling System from Empty If a Luminette Q System is shipped overseas it will generally be done so emptied of deionised cooling water to prevent damage to the system caused by freezing, and consequent expansion, of the water. Before using it for the first time, therefore, the Luminette cooling system must be refilled with deionised water. -
Page 25: A1. Specifications
A1.2 System Specifications The specifications given in the present section are the general specifications satisfied by all Luminette Q Systems. For the Test Specifications of the user's own system he/she is referred to the separate Test Sheets supplied with this manual. -
Page 26: A1.2.3 Physical Parameters
Laser rod : 5mm diameter by 95mm long Glasses : OD > 7 for wavelength 1064nm For a suitable pair of glasses or goggles for the Luminette Q Laser System contact Lynton Lasers Ltd. A1.2.5 Electrical Parameters Operating Voltage Range... - Page 27 ________________________________________________________________________________ A1.4 Labelling The label below is attached to the back panel of the Luminette Q System. Panel (A) Identification Panel containing the Item Name, Model Number and Serial Number. The Serial Number normally includes the year of manufacture, although this is also stated on the Rating Plate panel of the label (B).
- Page 28 ________________________________________________________________________________ Laser Radiation Logotype label indicating that the Luminette Q is a Class 4 Laser System. Laser Radiation “Starburst” Hazard Label Label indicating the requirement for efficient recovery of the Luminette Q System (at end of use) according to the WEEE Regulations.
- Page 29 Lynton House, Manor Lane Holmes Chapel, Cheshire, CW4 8AF, United Kingdom. Telephone +44 (0) 1477 536977 Fax +44 (0) 1477 536978 email: Info@lynton.co.uk...
