Lynton promax lipo Operator's Manual

Body shaping system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the promax lipo and is the answer not in the manual?

Questions and answers

Related Manuals for Lynton promax lipo

Summary of Contents for Lynton promax lipo

  • Page 3: Table Of Contents

    …………………………………… 14 2.1 General Safety …………………………………… 15 3. Using the Touchscreen …………………………………… 15 3.1 Operating the ProMax Lipo 3.2 Operating the ProMax Lipo – Mode A …………………………………… 16 …………………………………… 17 3.3 Cavitation (Body) …………………………………… 18 3.4 RF & Vacuum (Body) ……………………………………...
  • Page 4 DISCLAIMER Do not treat or use the system if any part is damaged or not functioning properly. Lynton cannot be held responsible for any adverse reaction caused during the use of this system. The Company (Lynton Lasers Ltd) accepts no liability whatsoever arising from the use to which this Product is put or from the non-use or attempted use thereof or for the consequences arising therefrom.

  • Page 5: Description Of Promax Lipo

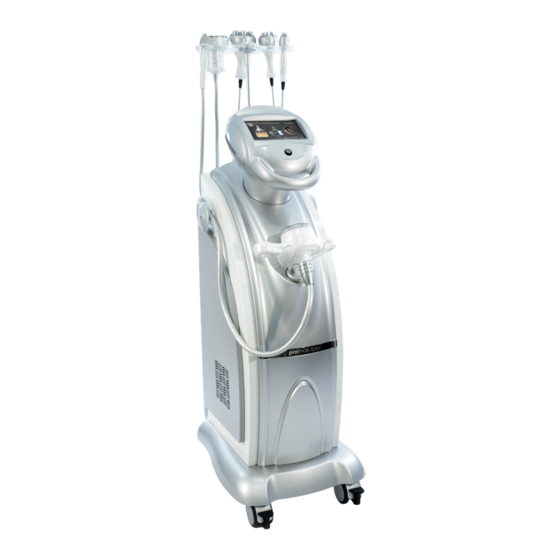

    1. Description of ProMax Lipo 1.1 General Description This manual contains instructions for the safe operation of the ProMax Lipo system provided by Lynton Lasers Ltd. The picture below indicates the main features of the ProMax Lipo system. Hand-pieces Hand-piece Holder...

  • Page 6: Description Of Applicators

    1. Description of ProMax Lipo 1.2 Description of Applicators – Mode A Body (Cavitation) • Treatment of fat and cellulite • 80mm diameter hand-piece • 4 pulse modes • Light signal function Body (RF & Vacuum) • Treatment of cellulite and skin tightening •...
  • Page 7 1. Description of ProMax Lipo 1.2 Description of Applicators – Mode B Body (RF 1 MHz) • Body Applicator • Multi-polar RF Technology • Used to treat larger and wider areas • Red LED (630nm) Arm / Leg • Arm / Leg Applicator •...

  • Page 8: Installation

    1. Description of ProMax Lipo 1.3 Installation 1. Screw the accessory holder into the machine. NOTE: If the accessory holder doesn’t align so that the holder faces towards the back of the machine, release the screw on the top of the assembly and set the orientation correctly.

  • Page 9: Start Up And Shut Down Procedure

    Press rear of the system. 2.Turn the key switch. 3. The blue LED will light up on the side of ProMax Lipo. To Shut Down 1. Leave the system for 2-3 minutes after treatment to allow internal fans to cool down the system.

  • Page 10: Cleaning Of Hand-Pieces

    1. Description of ProMax Lipo 1.5 Cleaning of hand-pieces 1. It is essential to clean all the hand-pieces following treatment. It is particularly important to ensure that the vacuum Body & Face Accessories are cleaned with the cleaning brush after EVERY treatment to avoid stray lotion being sucked into the compressor and damaging 2.

  • Page 11: Filter Cleaning

    1. Description of ProMax Lipo 1.6 Filter Cleaning For ProMax Lipo System Serial Numbers PROM-001 to PROM-026 do the following: 1. You need to check the filters regularly to avoid system blockage. 2. Open the panel on the rear of the machine by unscrewing the four screws by hand.
  • Page 12 1. Description of ProMax Lipo 1.6 Filter Cleaning (continued) For ProMax Lipo System Serial Numbers PROM-027 and onwards do the following: 1. You need to check the filters regularly to avoid system blockage. 2. Open the panel on the rear of the machine by unscrewing the three screws by hand.

  • Page 13: Statement Of Intended Use

    1. Description of ProMax Lipo 1.7 Statement of Intended Use The ProMax Lipo body shaping system safely promotes fat metabolism, enhances blood flow and promotes collagenesis with a combination of bipolar and multipolar Radiofrequency, high frequency ultrasound cavitation and vacuum massage.

  • Page 14: Safety

    2. Safety 2.1 General Safety CAUTION: In the UK, the ProMax Lipo body shaping system should be used at all times in accordance with the Health and Safety at Work Act 1974. CAUTION: Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous output.

  • Page 15: Using The Touchscreen

    3. Using the Touchscreen 3.1 Operating the ProMax Lipo • Select the hand-pieces you want to use on the LCD screen. Mode A: Cavitation / RF & Vacuum Mode B: Multipolar RF...

  • Page 16: Operating The Promax Lipo - Mode A

    3. Using the Touchscreen 3.2 Operating the ProMax Lipo - Mode A * Select and press the hand-piece from LCD screen Choose Cavitation / RF & Vacuum for body treatment. Choose RF & Vacuum for face treatment. Cavitation (Body) RF & Vacuum (Body) RF &...

  • Page 17: Cavitation (Body)

    3. Using the Touchscreen 3.3 Ultrasound Cavitation Controls (Body) ⑦ Select Hand-piece type ⑧ Start button ① Type of Hand-piece ② Cavitation ⑥ Display Power Level ⑨ Conversion button to Mode B screen ③ Control ④ C, P1, P2, P3 Time Button ⑤...

  • Page 18: Rf & Vacuum (Body)

    3. Using the Touchscreen 3.4 RF & Vacuum (Body)- 1MHz ⑧ Display Power Level ⑩ Hand-piece change Button ⑨ Start Button ② Set Vacuum level ① Type of Hand-piece ⑦ Select Handpiece Type ⑥ Multipolar RF ⑤ Preset Timer ⑪ Conversion Button to Mode B screen ④...

  • Page 19: Rf & Vacuum (Face)

    3. Using the Touchscreen 3.5 RF & Vacuum (Face)- 2MHz ⑨ Start Button ⑩ Hand-piece change button ⑧ Display Power Level ⑦ Select Handpiece Type ① Type of Hand-piece ⑥ Set Vacuum ② Bipolar RF Level level ③ Control ⑤ Preset Timer Time Button ⑪...

  • Page 20: Operating The Promax Lipo - Mode B

    3. Using the Touchscreen 3.6 Operating the ProMax Lipo – Mode B 1. Choose the hand-piece you wish to use Body (1 MHz) Face (2 MHz) Arm / Leg 2. Adjust the power output and time as required Set the level...

  • Page 21: Treatment & Protocols

    4. Treatment & Protocols 4.1 Consultation and Client Preparation 1. Free consultations are recommended in order to fully assess the client and individually tailor the treatment protocol. 2. Ask the client what their main area of concern is. 3. Treat only one area at a time for best results. One area is approximately equal to the size of a sheet of A4 paper.

  • Page 22: Facial Treatments - Summary Sheet

    4. Treatment & Protocols 4.2 Facial Treatments - Summary Sheet 1. Caution! Ultrasound cavitation is contraindicated on the face and neck. Use RF hand pieces only Treatment Initial Initial Treatment No of Treatment Maintenance Area RF Para- Vacuum Time Sessions Interval meters Para-...

  • Page 23: Facial Movements

    4. Treatment & Protocols 4.2.1 Facial Treatments - Movements Bipolar RF and Vacuum P3 Mode C Mode Bipolar RF and Vacuum ④ ③ ② ① • Treat around the neck & face along the muscle line • Do not exceed a Vacuum Level of 1~2 if using C mode...

  • Page 24: Body Treatments - Summary Sheet

    4. Treatment & Protocols 4.3 Body Treatments – Summary Sheet Treatment Cavitation RF + No of Treatment Interval Maintenance (Optional) Sessions Vacuum Inch Loss 10 mins 10 to 15 8-10 2 sessions a week for Once a mins first 6 treatments, month then weekly Inch Loss for...

  • Page 25: Abdomen Movements

    4. Treatment & Protocols 4.3.1 Abdomen Movements ① ② ③ Cavitation Technique RF & Vacuum Technique ① ② ③...

  • Page 26: Waist Side Line Movements

    4. Treatment & Protocols 4.3.2 Waist Side Line ① ② ③ Cavitation Technique ① ② RF & Vacuum Technique...

  • Page 27: Back Movement

    4. Treatment & Protocols 4.3.3 Back Notes 1. Do not use the ultrasound cavitation hand-piece on the back. 2. This treatment can also be used to relieve back and shoulder stiffness. ① ② ③ RF & Vacuum Technique (whole back area) ①...

  • Page 28: Thigh And Buttocks Movements

    4. Treatment & Protocols 4.3.4 Thighs and Buttocks Notes 1. Do not exceed Vacuum Level 1 in Continuous mode on the thighs Cavitation Technique ① ② ③ ① ② ③ Front Back RF & Vacuum Technique ① ② ① ② Back Front ①...

  • Page 29: Calf And Arm Movements

    4. Treatment & Protocols 4.3.5 Calf and Arms Cavitation RF & Vacuum Technique Technique ① ② ① ① ② Cavitation Technique ③ RF & Vacuum Technique...

  • Page 30: Cautions

    5. Caution 5.1 Contra-indications Please avoid the treatment from these people or part as below, 1. Patients with a pacemaker or internal defibrillator 2. Severe liver disease 3. Patients with cancer 4. Lymphatic or immune system disorders 5. Vascular disease / Varicose veins / Thrombosis 6.

  • Page 31: Cautions

    5. Caution 5.3 Maintenance 1. After treatment, keep the power on about 3 minutes to allow the fans to cool the machine. 2. Please keep the machine in the shade, avoiding direct sunlight. 3. Take care not to drop the applicators when moving the machine. 4.

  • Page 32: Warranty

    Lynton Lasers Ltd warrants defects in materials and workmanship for a period of 1 year from the date of original purchase. b. Lynton Lasers Ltd will repair these products at no charge or refurnish the parts if it has any abnormal condition.

  • Page 33: Specifications

    7. Specifications General Specifications Model Name : ProMax Lipo Power Input : AC100~230V,50/60Hz (Free voltage) Dimensions : 1330mm(H)×405mm(D)×505mm(W) Weight : approx.52kg Technical Specifications Handpiece 1 (Body) - RF Frequency : 1MHz (Multipolar) - Max Vacuum : 650mmHg Handpiece 2 (Face)
