ADAGIO

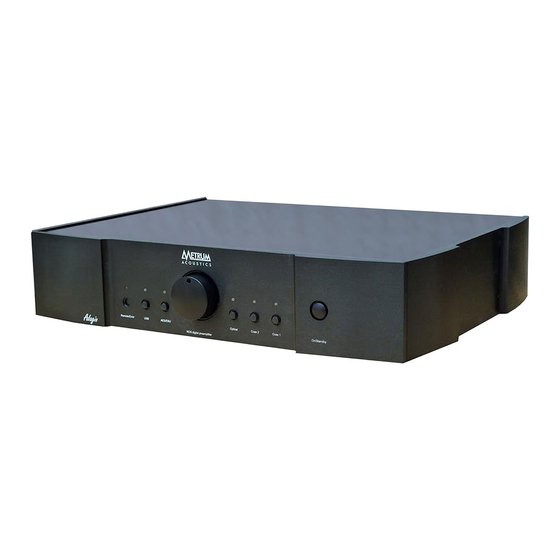

NOS Differential DAC
User manual
Updated 01-01-2018
Introduction
The ADAGIO gives you more weight, body, tonal richness, and a more natural sense of the
space of the recording. Or to put it more plainly, it fleshes out your music more!
All-Engineering BV
https://metrumacoustics.com
info@metrumacoustics.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Metrum Acoustics ADAGIO
Summary of Contents for Metrum Acoustics ADAGIO

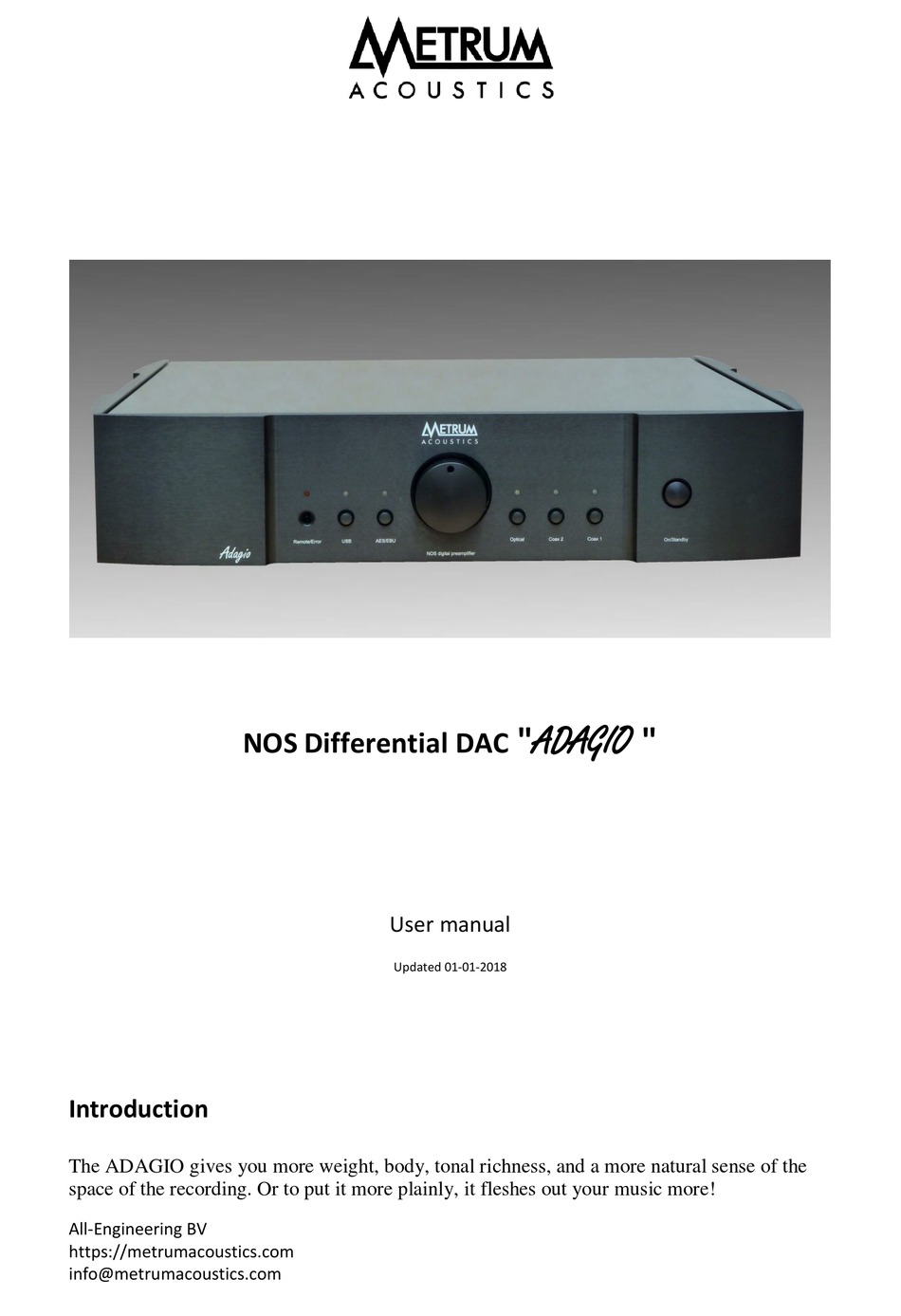

- Page 1 User manual Updated 01-01-2018 Introduction The ADAGIO gives you more weight, body, tonal richness, and a more natural sense of the space of the recording. Or to put it more plainly, it fleshes out your music more! All-Engineering BV https://metrumacoustics.com...
-
Page 2: Important Safety Instructions
What more can you do after launching one of the best DAC’s available today? We are aware that our current flagship ADAGIO is hard to beat but at least one idea was not realized yet. The idea of having a decent volume control to prevent a necessary pre-amplifier could improve performance dramatically. - Page 3 10. The ADAGIO pre-amplifier must be placed on a firm, level surface where it is not exposed to dripping or splashing.
- Page 4 What is in the Box • The ADAGIO DAC • Power cord (only Euro or USA based power cords) • USB cable • USB stick (user manual and USB drivers ) • BNC to RCA adapter All-Engineering BV https://metrumacoustics.com info@metrumacoustics.com...
-
Page 5: Inputs & Connections
RCA outputs: Standard interlinks can be used to connect the DAC to your amplifier. The "ADAGIO" is designed conform the "Red book standard" so the maximum output will be 2 Volts RMS or 700 mV RMS in case of using the -10dB setting. Your (pre)amplifier should handle this output levels. - Page 6 XLR outputs: Standard XLR line cables should be used to connect the DAC to your (pre) amplifier. The "ADAGIO" is designed conform the "Red book standard" so the maximum output for the XLR output will be 4 Volts RMS or 1.4Volts RMS in case of using the -10dB setting.
- Page 7 • Remote switch: Depending the type of power amplifier it is possible to switch it “On” or “Off” by using one or both of the remote switches. For the connection, a 3 pole XLR mini connector can be used and depending the way your power amplifier should be powered, it can be wired accordingly.
-
Page 8: Operation
When switching the ADAGIO to “standby mode” muting will be active again. When the ADAGIO is operational you can use the mute function only by using the remote control. In this situation, the JADE shows you the selected digital source but also the red “Standby/ mute”... - Page 9 Standby mode the ADAGIO will not switched off. Only when waiting for a few seconds the JADE will go into standby mode when selected. Error indication: When no digital data is coming in, the orange “Remote /Error” led above •...
- Page 10 The remote control is made to control the available digital inputs. As opposed to the front panel buttons where you can select one of the digital sources directly, the remote will toggle through the entire range of available digital sources. When the JADE is set into the stand-by mode, it will remember the last input selection and is available again when the JADE is switched on.
- Page 11 By gently turning the housing upside down the printed circuit board will fall out and the component side will be visible now. As shown above push the battery out of its holder by using the back side of a swab. Take the new battery and push it in the battery holder with the “+”...
- Page 12 Technical specs: Working principle: Non-oversampling digital pre-amplifier. Dual mono, four DACs per channel in differential mode. Power supply: 75 VA divided over three single toroidal transformers Power consumption: Standby < 1.5 Watts Full operation 25 Watts Power requirement: 110/115V AC or 220/230 V AC 60/50Hz Inputs: 1x optical Toslink, 2x coaxial like 1x BNC , 1x RCA.
