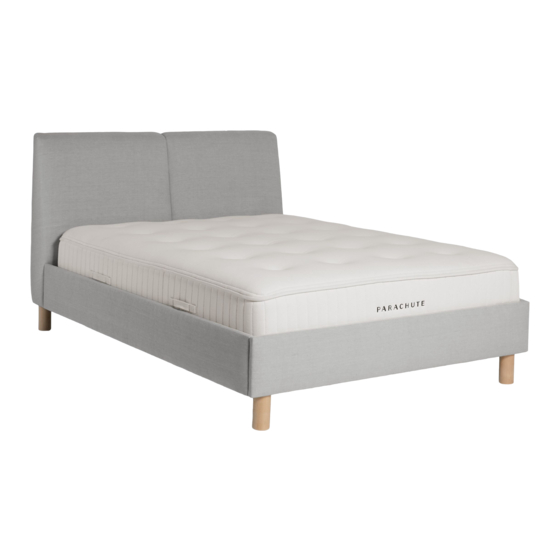

- Page 1 Assembly Instructions Dune Bed Frame...
- Page 2 Assembly Instructions Before getting started: Remove instructions from side of box and clear the area of fragile objects. Assembly requires two people. Read instructions carefully and keep for future reference. The following tools (not included) are required for assembly: Parts list: Hex Bolts x 12 Phillips Head Screwdriver Wood Screws x 8...
- Page 3 Assembly Instructions Attach first side rail to headboard by placing side rail on the outside of the bracket. NOTE: Ensure side rails are right side up, with the upholstered side up. NOTE: Loosely hand thread all bolts and screws first while putting each piece together.
- Page 4 Assembly Instructions Repeat Steps 2 through 3 on the footboard. Line up top and bottom holes of the center rail with the top and bottom holes of the center bracket. 4 / 7...
- Page 5 Assembly Instructions Screw in and tighten hex bolts into the top and bottom holes on the headboard. Repeat Step 6 on the footboard. 5 / 7...
- Page 6 Assembly Instructions Align one set of slats with the center mark inside of each side rail. NOTE: The set of 6 slats should be placed closest to the foot of the bed, and the set of 5 slats should be placed closest to the head. Place first set of slats on first center mark inside of each side rail.
- Page 7 Assembly Instructions Stretch out first set of slats until fully extended. Screw in wood screw into the last slat of the fully extended unit. Repeat Steps 8-11, starting with the second center mark on the inside of side rails. 7 / 7...
