Arizona
INSTRUCTION MANUL
Function
Steering Wheel
ST+ TH+
TH-
ST-
Power On
/Off
Throttle Trigger
A.Throttle Trigger B.Steering Wheel
Neutral
Brake/Speed
down Left
Forward
/Speed up
Neutral
1.Push the trigger forward to slow down or brake.
2.Pull the t-rigger backward to accelerate.
This device complies with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful
interference (1) this device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliancecould void the user's authority to
operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
The device has been evaluated to meet general RF exposure requirements. The device can be used in portable exposure conditions
without restriction.
FCC ID: 2AUBX –TX01Z
Install the Batteries
(1)Remove the battery compartment cover.
(2)Replace the used batteries with new AAx3 size batteries
Please replace batteries when the power indicator blink or
the buzzer beeps.
When not in use，remove the
AAx3 batteries to prevent the
transmitter PCB from electrical
damage.
Keep the transmitter and receiver
40cm apart when operating.
Throttle trim: If the vehicle inches forward or backwards without
throttle input, adjust the trim to set the neutral throttle position.
Right
Steering trim: If the vehicle veers left or right without any steering input,
use the steering trim to adjust the steering servo until the vehicle tracks straight.

Operating procedure

Always turn the transmitter on before turning on the vehicle.
Always disconnect the vehicle BEFORE turning off
the transmitter.
CAUTION:
This product is intended for ages 14+ users under 18 years of age require parental supervision.
This product is strictly forbidden to be used in water, please do not drive on water stains.

Introduction

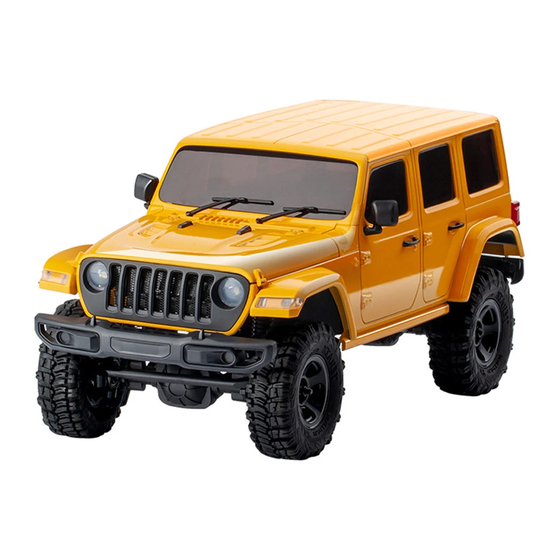

Thank you for purchasing the EAZYRC 1/18th Arizona.Engineered to be one of the most realistic,capable and
dependable trucks in its class, the WOWRC 1/18th series is ready to tackle any terrain right out of the box.
This manual is written to assist you in properly operating, maintaining and repairing the vehicle.As many of the
components used are unique to this truck,please retain this manual as a future reference.
Composed of precision-made components, the EAZYRC 1/18th Arizona is not a toy, thus it is not suited for
children under 14 years of age.Minors should be accompanied by an adult when operating.
lt is the owner's responsibility to operate this product in a safe manner.EAZYRC and its distributors are not
responsible in any way for any and all bodily harm and or property damage that may result from the use of this
product.

Warnings

When not in use, must be remove the battery of the remote control and vehicle.
●This vehicle is not intended for those under 14 years of age without proper adult supervision. It is not a toy!Failure to
operate or maintain this vehicle in a safe manner can result in bodily harm.
●Replace damaged components with original factory-parts. Pay special attention to the polarity of all vehicle wiring.
●This product is strictly forbidden to be used in water, please do not drive on water stains.
●Only use approved 2 cell lithium polymer batteries. Do not over-charge or over dis-charge the battery as doing so
may cause the battery to become a fire hazard. If the battery should become hot during charging,discontinue
charging immediately and disconnect the battery from the charger. Never leave the battery unattended while
charging. If you are unsure of how to charge this battery, please seek the advice of experienced RC users. Never let
children charge the battery without adult supervision.
●The motor will become hot during use. Allow 10-15 minutes between runs for the vehicle to cool down. Doing so will
prolong the life of your vehicle.
●Use common sense when selecting the environment to operate your vehicle. Do not operate near power cables,
cellular/radio towers, deep water or unstable terrain. The operator is solely responsible for their actions.
●The product is composed of precision electrical components. It is critical to keep the product away from moisture
and other contaminants. If exposed to a humid environment, make sure the electronics are fully dried prior to using
them again.
●Always check the radio range of the vehicle prior to operation in order to prevent radio loss or interference.
●Operate this product within your ability. If the vehicle is dangerous to retrieve, it's never worth the risk.
●Always turn on the transmitter before connecting the battery on the model. When turning off the model, always
disconnect the battery first, and then turn off the model, always disconnect the battery first, and then turn off the
transmitter. If this order is reversed, the model may become uncontrollable and cause serious damage.
●Never allow transmitter batteries to run low as it may cause loss of vehicle control.
●Plastics on the vehicle are susceptible to damage or deformation due to extreme heat and cold climate. Do not store
the model near any source of heat such as oven or heater. Store the model indoors, in a climate-controlled, room
temperature environment.
●Never shorten the receiver antenna; this may affect the transmitting range of the radio system.
