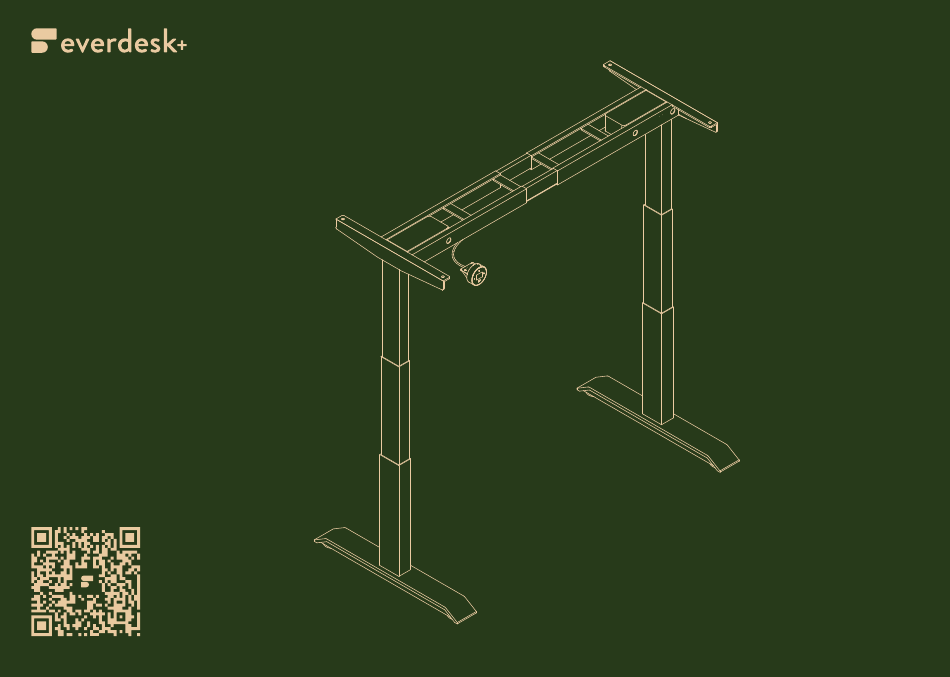

- Page 1 Max Frame assembly manual Max Frame Assembly Information...
- Page 2 Tools and Parts List Tools Parts Parts Parts Control Box M5x20mm Wood Screw Foot Handset Cable Clip Frame End-CB Power Cord M6x12mm Pan Head Screw Frame End Cable Extender (1.3m) Cable Tray Cable Clip Center Rail M6x10mm Pan Head Screw M5x16mm Wood Screw* M6x12 Pan Head Screw Side Bracket...
- Page 3 *These parts can be found in the Health Coach Handset Kit. assembly *These parts can be found in the Health Coa S T E P O N E : S T E P T H R E E : Center Rail & Frame Mounting Side Bracket *These parts can be found in the Health Coach Handset Kit.
- Page 4 assembly S T E P F I V E : S T E P S I X : Attaching Frame To Table Top Connecting Cables To Control Box • Connect cable exiting Leg (1) (attached to Frame End 3b) to Control A.
- Page 5 assembly S T E P S E V E N ( b ) : S T E P N I N E : Attaching Health Coach Controller Attaching Cable Tray To Center Rail For installation of Health Coach Controller Only •...
-
Page 6: Technical Information
Technical Information Reset Health Coach Controller WARNING! Failure to follow these instructions may result Ensure that the desk it at its lowest height before in serious injury. attempting any reset functions. • Enter Reset Mode: Turn the controller anti-clockwise Make sure no obstacles are in the desk’s path. (DOWN position) and hold until the display reads Make sure the desktop is not touching any walls. - Page 7 Technical Information Changing Measurement Units (CM/Inch) Troubleshooting / Health Coach Settings • Turn the controller anti-clockwise (DOWN position) and hold until the display reads “RESET”, then release the controller. Ensure that the desk it at its lowest height before attempting any reset functions.
