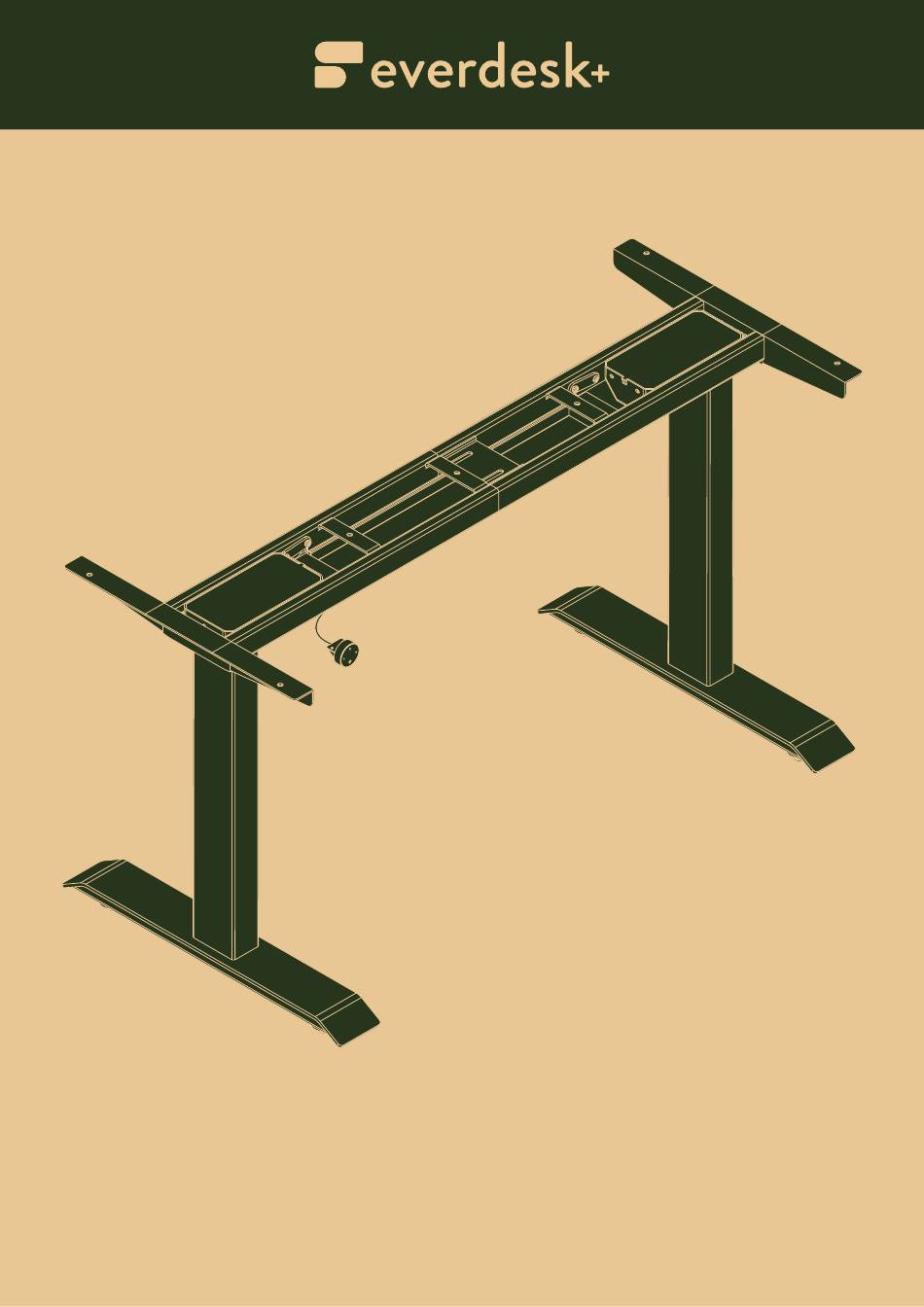

- Page 1 Max Frame assembly manual...
-
Page 2: Parts List
Parts List Tools Max Frame Assembly Information EVERMAXV3.0-WH-S | EVERMAXV3.0-BLK-S Parts Parts M8x38mm Pan Head Screw Foot M6x14mm Machine Screw Frame End-CB ST5x20mm Wood Screw Frame End M6x12mm Pan Head Screw Center Rail Health Coach Controller* Side Bracket Power Cord Lock Buckles Extension Cable 1.3m... - Page 3 Caution | Settings WARNING! Failure to follow these instructions may result in serious injury. Ensure no obstacles are in the desk’s path. Ensure the desktop is not touching any walls. Ensure all cords are an appropriate length to accommodate the changes in height. Keep Children away from electric height-adjustable desks, control units and handsets.
- Page 4 Assembly S T E P O N E : Mounting Side Brackets • Slide Side Brackets (Part 5) into Frame Ends (Parts 3a and 3b). S T E P T W O : Locking the Leg, Frame and Side Brackets Step 2a: Align Leg in Frame •...
- Page 5 Assembly S T E P T H R E E : Attaching Frame to Table Top Center Hole: centralise between Frame Ends B. For Table Tops without A. For Pre-Drilled Table Tops: Pre-Drilled Holes: • Place frame on table top. •...
-
Page 6: Installing The Control Box
Assembly S T E P F I V E : Installing the Control Box • Install the Control Box (Part 7) into Frame (Part 3a) by slotting it into place. • Connect the Leg cables to the control box. • Use Extension Cable (Part 17) if the leg cable is unable to reach the control box. •... -
Page 7: Installing The Cable Tray
Assembly S T E P S E V E N : Installing the Cable Tray • Position the Cable Tray (Part 8) on the Frame (Part 3a/b). • Using eight M8x38mm Pan Head Screws (Part 11) and the allen wrench provided, secure the Cable Tray to the Frame. - Page 8 EVERMAXV3.0-WH-S Max Frame assembly manual EVERMAXV3.0-BLK-S v1.0_080222 www.everdeskplus.com...
