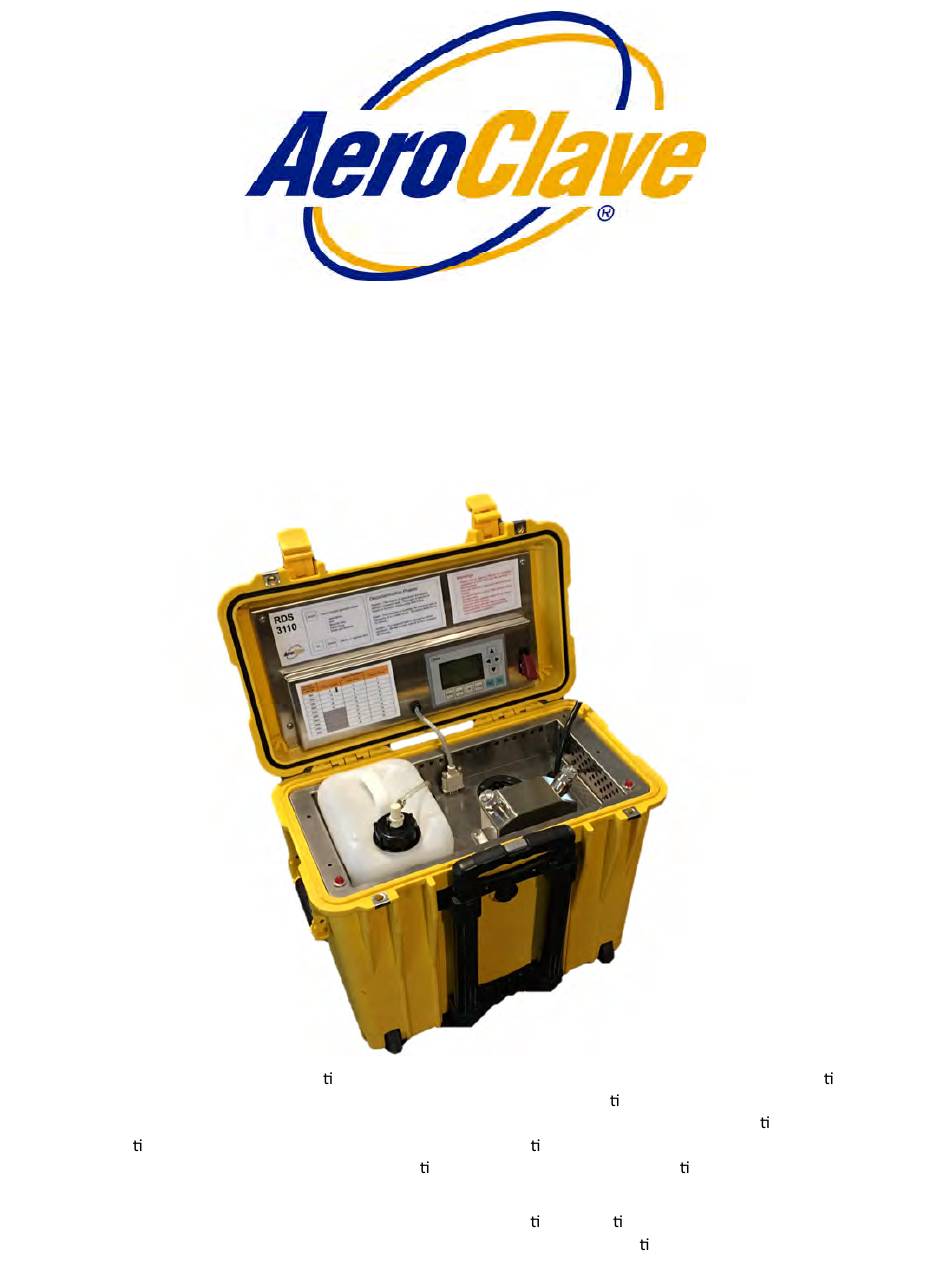

ROOM DECONTAMINATION SYSTEM
OPERATOR MANUAL
Model(s): RDS 3110 & RDS 3110-3
This document contains informa on which is proprietary to AeroClave, LLC. Accordingly, the informa on
in this document shall not be disclosed outside the customer's organiza on and shall not be duplicated,
used or disclosed – in whole or in part – for any purpose other than to evaluate this informa on. This
restric on does not limit the customer's right to use informa on contained in this document if it is
obtained from another source without restric on. The data subject to this restric on are contained in all
sheets of this document.
This technical data is controlled under the Export Administra on Regula ons, and may not be exported to
a Foreign Person, either in the U.S. or abroad, without the proper authoriza on of the U.S. Department of
Commerce.
