Standard Windshield Frame Installation Guide
On the Rox Fabrication
Ontheroxfab.com
406-967-2189
*READ INSTRUCTIONS THOROUGHLY BEFORE BEGINNING. OTR IS NOT
RESPONSIBLE FOR INCORRECT INSTALLATION OR LOCAL LAWS
REGARDING AFTERMARKET ACCESSORIES. THE USER IS RESPONSIBLE FOR
ALL LIABILITIES ASSOCIATED WITH THE INSTALLATION AND USE OF THIS
PRODUCT.
ALWAYS UTILIZE PERSONAL SAFETY EQUIPMENT WHEN YOU ARE
WORKING IN THE SHOP.
DISCONNECT BATTERY BEFORE YOU BEGIN.
Advertisement
Table of Contents
Related Manuals for On the Rox Standard Windshield Frame
Summary of Contents for On the Rox Standard Windshield Frame
- Page 1 Standard Windshield Frame Installation Guide On the Rox Fabrication Ontheroxfab.com 406-967-2189 *READ INSTRUCTIONS THOROUGHLY BEFORE BEGINNING. OTR IS NOT RESPONSIBLE FOR INCORRECT INSTALLATION OR LOCAL LAWS REGARDING AFTERMARKET ACCESSORIES. THE USER IS RESPONSIBLE FOR ALL LIABILITIES ASSOCIATED WITH THE INSTALLATION AND USE OF THIS PRODUCT.

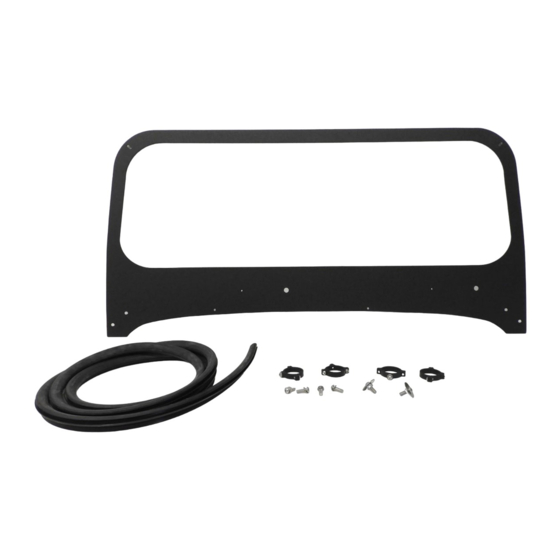

- Page 2 Installing Our On the Rox Windshield Frame is very simple, begin • by removing the bottom cowl piece that is labeled with the Mahindra sticker. You may save the factory bolts, or utilize our included 8mm stainless button head bolts to mount our On the Rox Windshield Frame.
- Page 3 Included but not shown in the picture above, is a section of rubber • weatherstrip to go between the windshield frame and roll cage. We recommend applying the adhesive side onto the windshield frame. Account for where your clamps will land, and trim for their location. We also recommend using a heat gun or equivalent on the adhesive in order to get a strong adhesion.
- Page 4 • bar towards the top bend in the pre-slotted holes. Line them up with the slot in the On the Rox windshield frame and bolt the frame onto the tubing clamps. • The additional (2) clamps that are included can be placed anywhere on the windshield.
- Page 6 Glass Information On the Rox Fabrication’s aftermarket windshield frame for the Mahindra Roxor does not include the glass. This is to lower shipping costs for the customer and eliminate concerns of glass breaking in the shipment. We fit our windshield frames with .030 (¼”) Safety Plate Laminated glass. The included glass seal is also fit for this size of glass.
